Ball Lock Pin

self-locking, with combination handle, precipitation-hardened

Koda: EH 22380-1
Izberi izvedbo

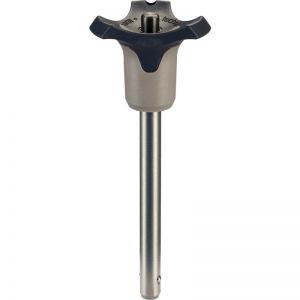

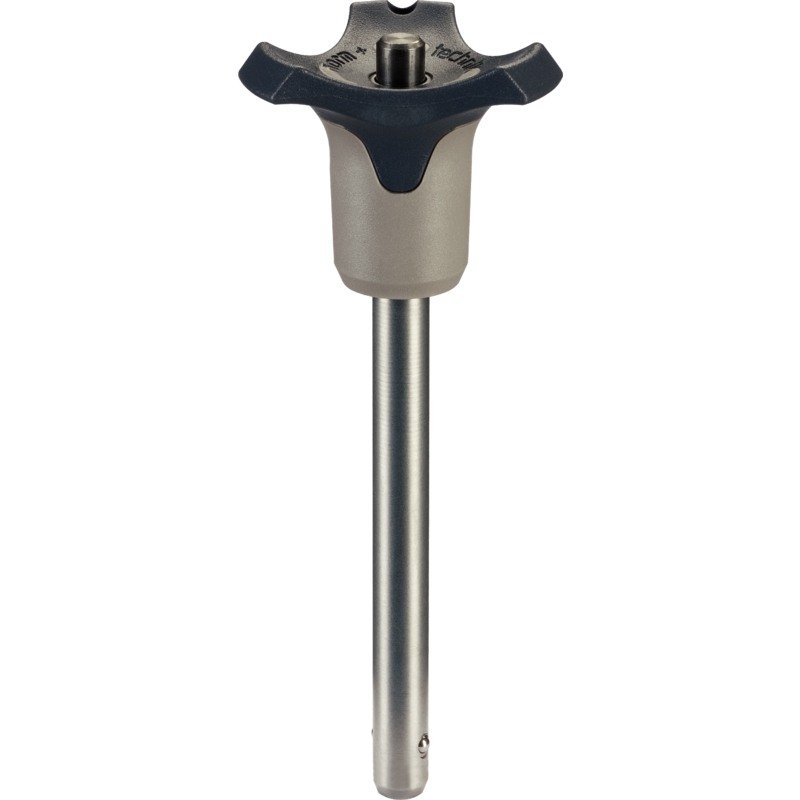

Ball Lock Pin

For quick fastening, locking, adjusting, changing and securing. Quickly and easily unlockable for frequently repeated connections.

All versions are corrosion resistant. When using stainless steel 1.4542: high-strength, hardened, abrasion resistant pin with high load capacity.

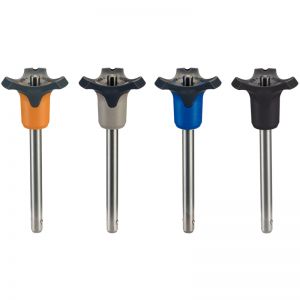

Ergonomic grip, different colour combinations available. The grip design provides protection of unintentional unlocking.

Material

Pin part

  • Stainless steel 1.4542, precipitation-hardened

Handle

  • Thermoplastic PA 6 grey / orange

Spring

  • stainless steel

Operation

The balls are unlocked by pressing the knob.

Characteristic

Types from stainless steel 1.4542 with marking below the balls.

Notes

Special types on request.

References

Stainless steel 1.4305, see EH 22370.

Accessories

Can easily be fitted with retaining cable EH 22400.

Za ogled cen se prijavite
Back to all list
Številka izdelka d2 d3 d4 Colour Conflict Minerals free d1 [-0.04, -0.08]
EH 22380.0145 55 mm 33.2 mm 14.5 mm orange yes 5 mm
Loading Podatki se nalagajo...
EH 22380.0146 55 mm 33.2 mm 14.5 mm orange yes 5 mm
Loading Podatki se nalagajo...
EH 22380.0147 55 mm 33.2 mm 14.5 mm orange yes 5 mm
Loading Podatki se nalagajo...
EH 22380.0148 55 mm 33.2 mm 14.5 mm orange yes 5 mm
Loading Podatki se nalagajo...
EH 22380.0149 55 mm 33.2 mm 14.5 mm orange yes 5 mm
Loading Podatki se nalagajo...
EH 22380.0150 55 mm 33.2 mm 14.5 mm orange yes 5 mm
Loading Podatki se nalagajo...
EH 22380.0151 55 mm 33.2 mm 14.5 mm orange yes 5 mm
Loading Podatki se nalagajo...
EH 22380.0152 55 mm 33.2 mm 14.5 mm orange yes 5 mm
Loading Podatki se nalagajo...
EH 22380.0153 55 mm 33.2 mm 14.5 mm orange yes 5 mm
Loading Podatki se nalagajo...
EH 22380.0154 55 mm 33.2 mm 14.5 mm orange yes 5 mm
Loading Podatki se nalagajo...
EH 22380.0155 55 mm 33.2 mm 14.5 mm orange yes 5 mm
Loading Podatki se nalagajo...
EH 22380.0156 55 mm 33.2 mm 14.5 mm orange yes 5 mm
Loading Podatki se nalagajo...
EH 22380.0157 7 mm 33.2 mm 14.5 mm orange yes 6 mm
Loading Podatki se nalagajo...
EH 22380.0158 7 mm 33.2 mm 14.5 mm orange yes 6 mm
Loading Podatki se nalagajo...
EH 22380.0159 7 mm 33.2 mm 14.5 mm orange yes 6 mm
Loading Podatki se nalagajo...
EH 22380.0161 9.6 mm 39.2 mm 18.4 mm orange yes 8 mm
Loading Podatki se nalagajo...
EH 22380.0162 7 mm 33.2 mm 14.5 mm orange yes 6 mm
Loading Podatki se nalagajo...
EH 22380.0163 7 mm 33.2 mm 14.5 mm orange yes 6 mm
Loading Podatki se nalagajo...
EH 22380.0164 7 mm 33.2 mm 14.5 mm orange yes 6 mm
Loading Podatki se nalagajo...
EH 22380.0165 7 mm 33.2 mm 14.5 mm orange yes 6 mm
Loading Podatki se nalagajo...
Send inquiry
