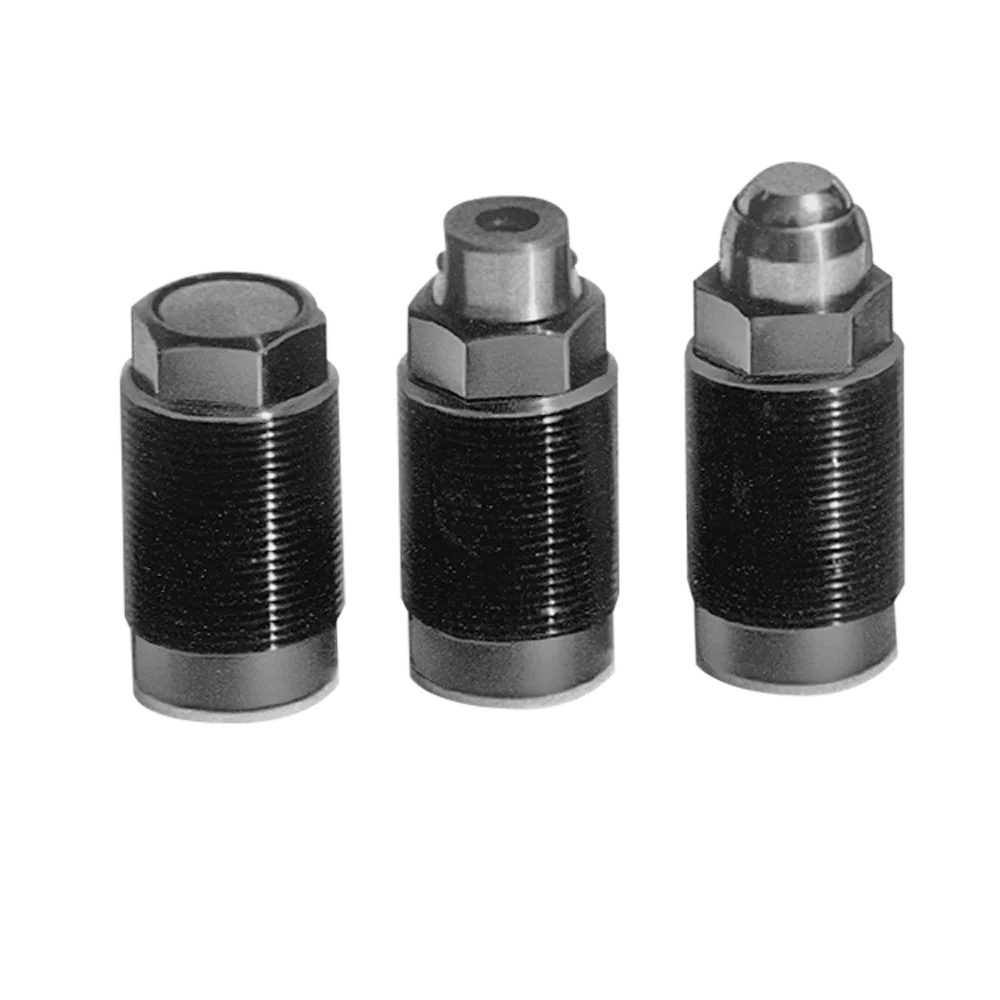

B1.460 Threaded-Body Cylinder
These threaded-body cylinders can be threaded directly into tapped holes in the fixture down to the hex-section of the cylinder body. Spacings between cylinders can be minimised when cylinders are arranged in a row, since the oil is fed through drilled passages in the fixture.
Sealing is made with the supplied sealing ring at the bottom of the location hole.
A long piston guide in combination with an O-ring/back-ring seal provides trouble-free
operation.

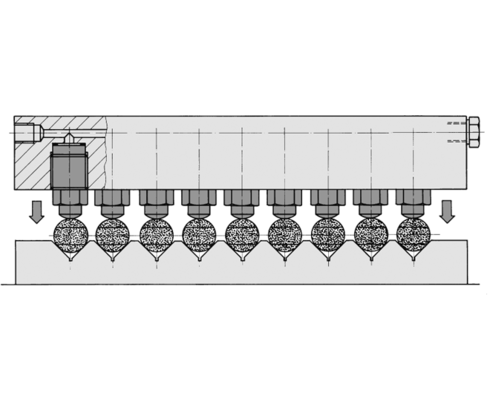

Application example 1
Multiple clamping fixture for clamping of small parts. The cylinders can be arranged in clamping bars or yokes.

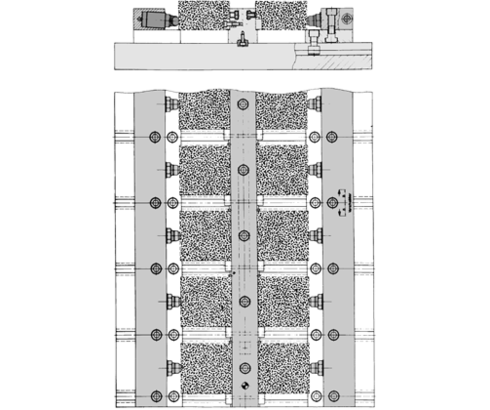

Application example 2
This multiple clamping fixture is equipped with threaded-body cylinders with swivel contact bolts. The 3° incline of the threaded-body cylinders effects a low-clamping force of approx. 5 % of the clamping force. On plane clamping surfaces swivel contact bolts obtain little surface pressure on the effective points.

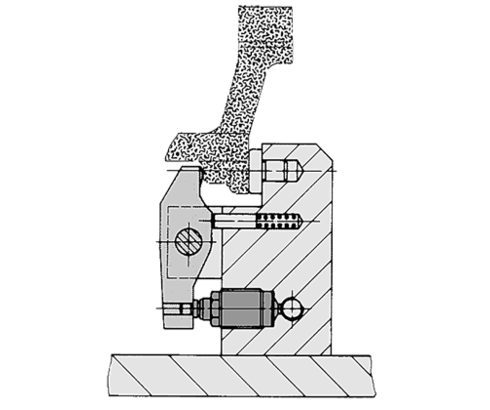

Application example 3
Workholding with the use of reversing levers is particularly suited for workpieces which have to be clamped high above the fixture base plate. The force-loop closed within a limited fixture component space eliminates bending forces from entering the fixture base plate. The reversing lever allows easy adaptation of the lever ratio to the clamping force required.
