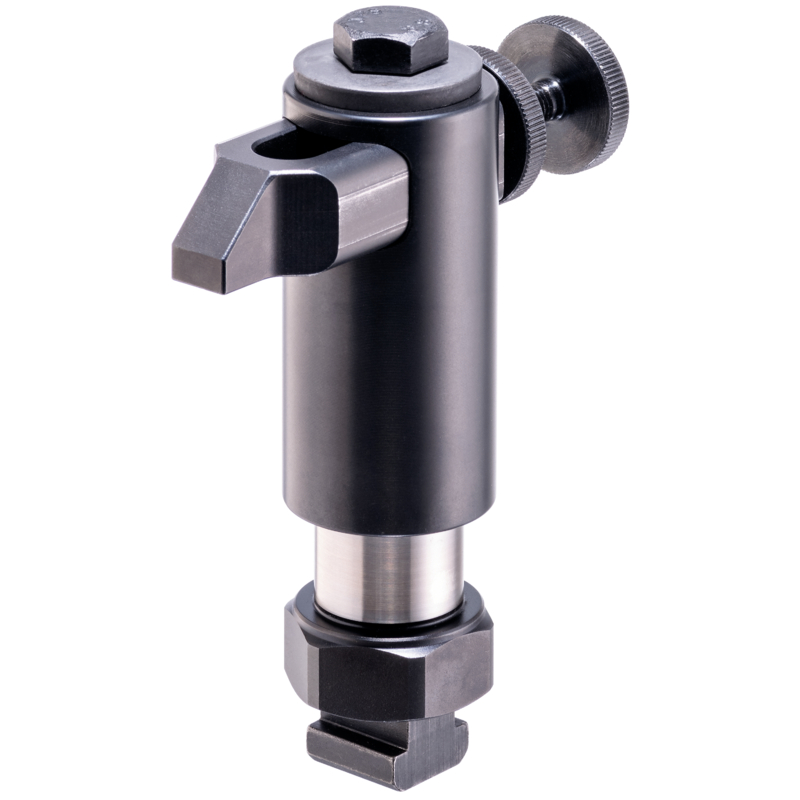

The moveable downthrust clamps are used, amongst other things, when swivel movements are not possible because of the workpiece.

The clamps provide the following advantages:

• Easier and quicker workpiece change by moving the clamping claws forwards or backwards.
• The clamping range in horizontal direction is between l1 min. and l1 max..
• To change the workpiece, the clamping claw can be pushed back from l1 max. by dimension l2.
• Rapid manual clamping by means of the clamping screw, the adjustable clamping lever, or the double eccentric clamping lever.
• The use of positioning ring 23310.0350 allows the clamping position to be fixed. Here h1 min. increases by at least 7 mm (stroke minus 7 mm).
• Compact design, therefore less space requirement when clamping.
• Easily adjustable even to large clamping heights, using the height adjusting cylinders.

Material

• Case-hardened steel, case-hardened, blackened and ground

Assembly

Down-thrust clamps can be attached in two ways:

• in a T-slot, using a nut for T-slots DIN 508 (EH 23010.)
• with the set screw directly in the mounting plate of, for example, a fixture

The cylinder must make contact over the whole surface.

Operation

• Push clamping claw backwards.
• Insert workpiece.
• Push clamping claw forwards.
• Adjust clamping position of clamping claw using the knurled screw.
• Secure / lock the clamping position using the knurled nut.

References

The clamping height can be increased by using height adjusting cylinders EH 23310. and disks EH 1107. and EH 1108. It can be reduced by employing clamping inserts, e.g. EH 22730.
