Erwin Halder KG

Eccentric Quick Clamp

with screw

Koda: EH 23390-3

Izberi izvedbo

Erwin Halder KG

Eccentric Quick Clamp

with screw

Koda:: EH 23390-3

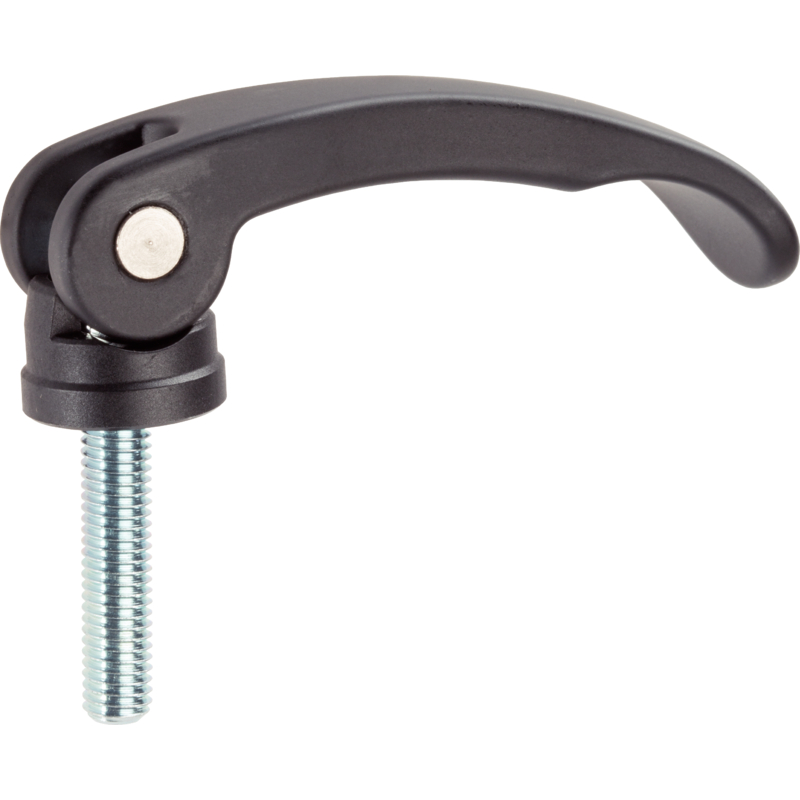

For quick and easy clamping and releasing of workpieces.

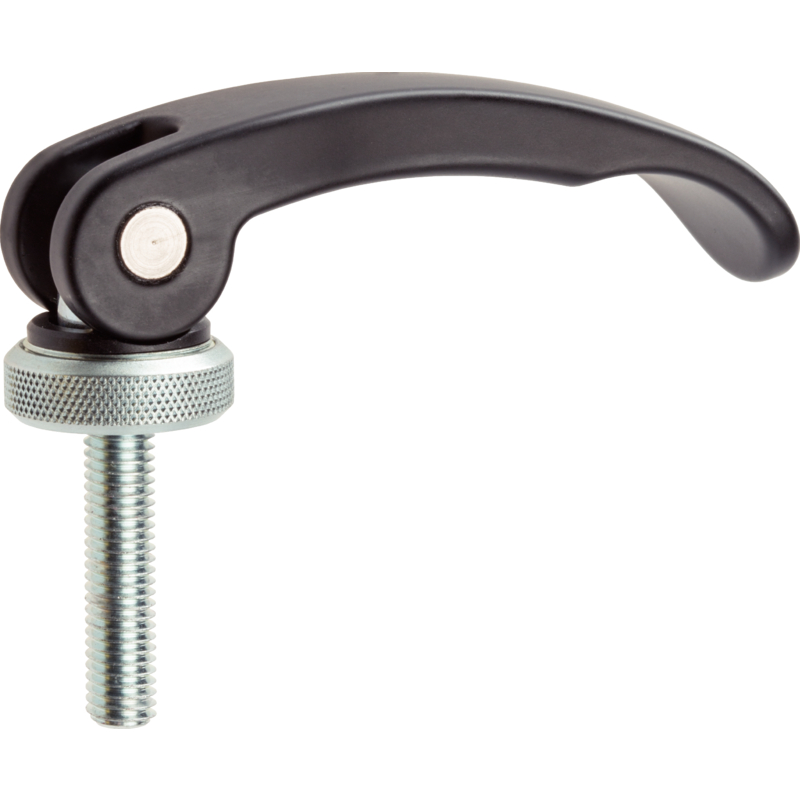

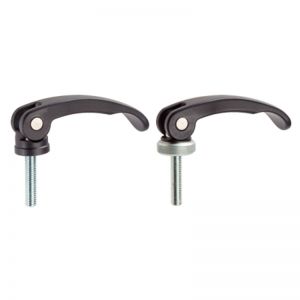

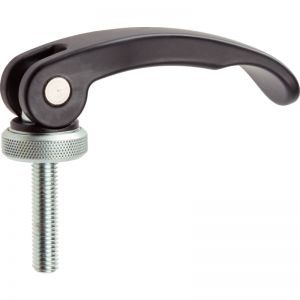

When using the "adjustable" design (picture 2) the lever position can be moved.

Material

Support washer

Thermoplastic PA, glass-fiber reinforced

Lever

Zinc die-cast, plastic coated, black

Inner parts

Steel, zinc-plated by galvanization

Screw

Steel, zinc-plated by galvanization

Adjusting nut

Steel, zinc-plated by galvanization

Za ogled cen se prijavite

Številka izdelka	B	d₂	d₃	d₅	Adjusting nut	Conflict Minerals free
EH 23390.0009	16 mm	M6	16 mm	18.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0010	16 mm	M6	16 mm	18.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0011	16 mm	M6	16 mm	18.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0012	16 mm	M6	16 mm	18.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0013	16 mm	M6	16 mm	18.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0014	16 mm	M6	16 mm	18.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0016	16 mm	M6	16 mm	18.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0019	20 mm	M8	20 mm	22.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0020	20 mm	M8	20 mm	22.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0021	20 mm	M8	20 mm	22.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0022	20 mm	M8	20 mm	22.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0023	20 mm	M8	20 mm	22.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0025	20 mm	M8	20 mm	22.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0027	20 mm	M8	20 mm	22.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0030	16 mm	M5	16 mm	18.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0031	16 mm	M5	16 mm	18.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0032	16 mm	M5	16 mm	18.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0033	16 mm	M5	16 mm	18.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0034	16 mm	M5	16 mm	18.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 23390.0035	16 mm	M5	16 mm	18.5 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
