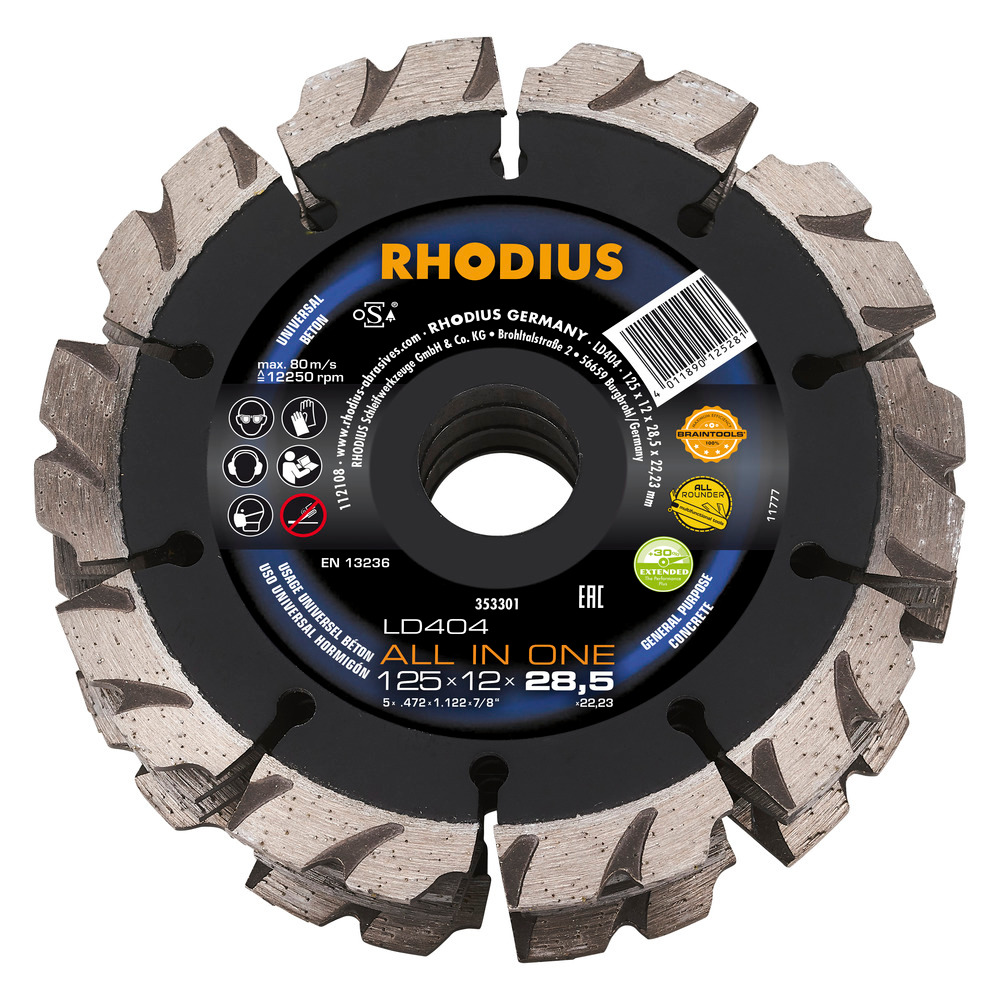

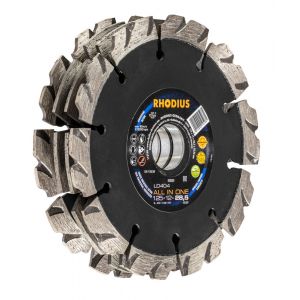

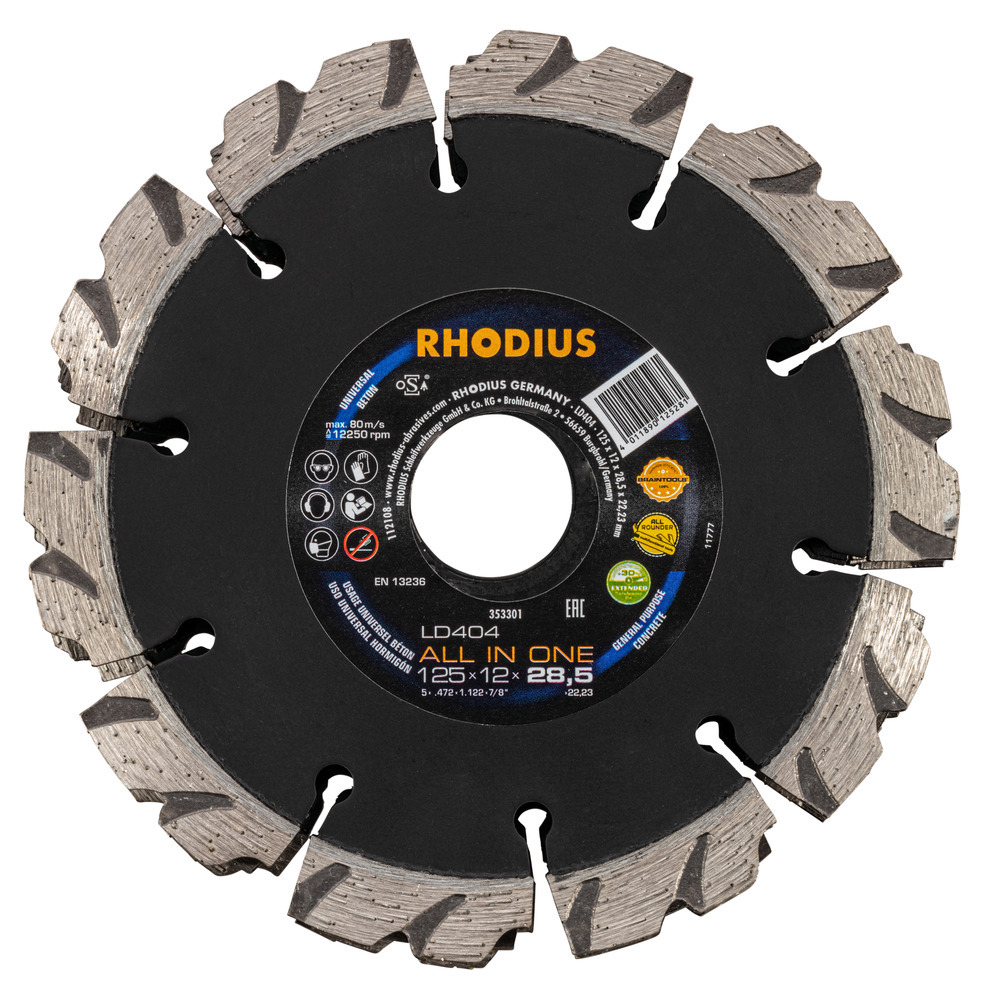

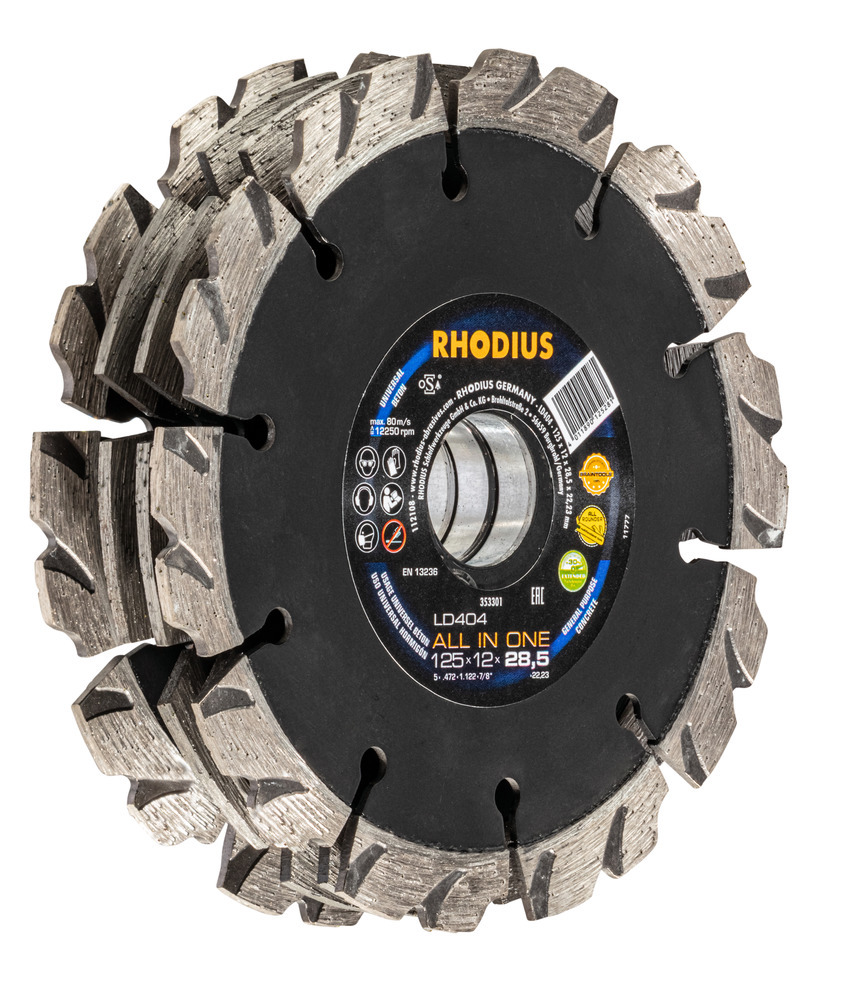

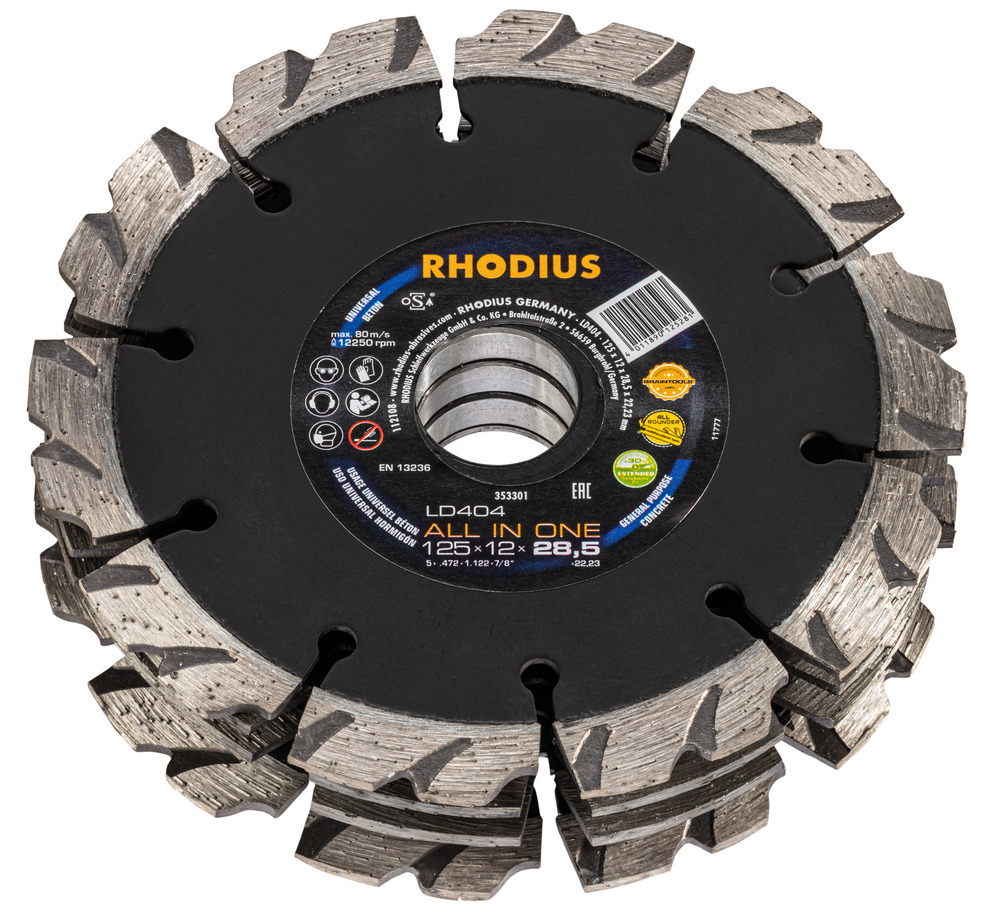

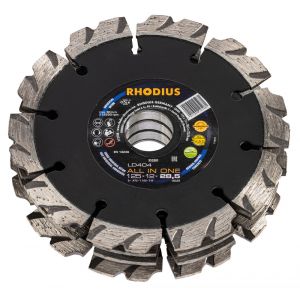

Plošča rezalna diamantna LD404 ALL IN ONE

Koda: RD 353301

Plošča rezalna diamantna LD404 ALL IN ONE


Wall slot in a single step. The LD404 ALL IN ONE EXTENDED as an update to the LD402/LD403 is perfectly equipped with a combination of two-times-two diamond qualities. The turbo segments of the straight diamond cutting discs on the outside allow for particularly clean and straight wall chasing. The wave geometry of the inner diamond cutting discs gives you a perfectly clear wall slot.


  • No chiselling out of the middle channel required
  • Reduces dirt and dust
  • Up to 50% time savings by cutting in one operation
  • Enables easy chasing of wall slots (up to 30 mm)
Številka izdelka File Maximum revolutions Premer Debelina Premer luknje Višina segmenta
RD 353301 12250 U/min 125 mm 28,5 mm 22,23 mm 12 mm
Loading Podatki se nalagajo...
RD 353315 10185 U/min 150 mm 28,5 mm 22,23 mm 12 mm
Loading Podatki se nalagajo...

Quality:
With the LD404 ALL IN ONE, users get the best RHODIUS tool in its category. RHODIUS TOPline products represent a maximum level of performance and quality.

Machine suitability:
The LD404 ALL IN ONE diamond disc is suitable for handheld use with a wall chaser. This product really shines when used on high-performance machines in particular.

Material suitability:
The LD404 ALL IN ONE has been specifically developed for processing hard masonry bricks, concrete, paving bricks, medium-hard marble shingles, hard precast concrete blocks, stone blocks and hollow stone blocks. This high-quality RHODIUS tool is also an excellent choice for processing hard sand-lime bricks and sandstone.

Structure and production:
The LD404 ALL IN ONE features a segmented rim. This enables very high cutting speeds to be achieved while also maximising tool life. The segments are also arranged in a crisscross formation. The tool has been tested to EN 13236 and oSa, and can be used in dry cutting applications. The use of a very high concentration of high-quality industrial diamonds makes the LD404 ALL IN ONE a particularly powerful tool. The disc is also laser welded and supplied fully assembled.

Dimensions:
This diamond wall slot disc is available in the diameters of 125 mm and 150 mm.
