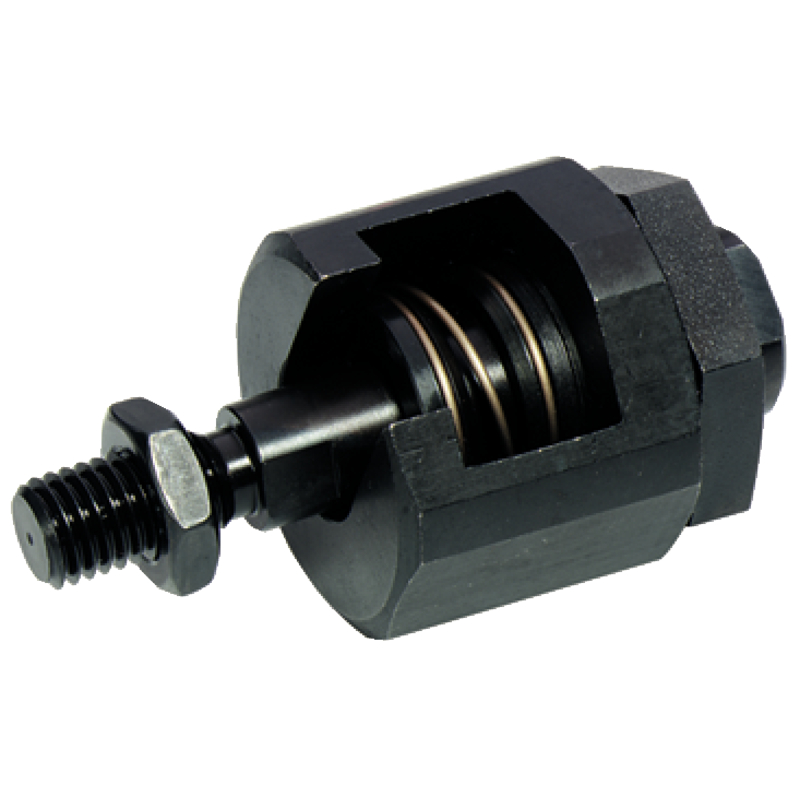

Quick plug coupling, adjustable without axial play, including angular and radial offset compensation. Suitable for multiple applications, e.g. for non-aligned linear movements.

Solid and compact design, no loose elements.

Material

Claw

• Heat-treated steel, tempered, phosphated

Seat

• Heat-treated steel, tempered, phosphated

Coupling part

• Heat-treated steel, nitrided, black

Nut

• Heat-treated steel, phosphated

Lock nut

• Steel, black (ISO 4035/8675)

Spring

• stainless steel

Assembly

Assembly and disassembly is by means of a T-slot; a manual re-adjustment is not necessary.

The quick plug coupling can be linked to all commonly used pneumatic and hydraulic lifting cylinders via the connecting thread.

Notes

The quick plug coupling does not transmit any torque.
