Quality:
The EKBZ provides users with the best RHODIUS tool in its category. RHODIUS TOPline products represent a maximum level of performance and quality.

Industries:
This makes it the ideal tool for the many applications and challenges faced in car repair and metalwork shops, in plant, container, boiler and tank construction, structural steel engineering, pipeline construction and installation work.

Machine suitability:
The EKBZ technical brush is designed for use on angle grinders equipped with an M14 spindle. Please note the information about working and safety speeds. The maximum safety speed is marked on every product. This speed is important to ensure your safety in the workplace and must never be exceeded. Using adjustable-speed machines permits speeds to be adjusted to the maximum safe working speed. In addition, brushes fitted to handheld machines must have a maximum outer diameter of 180 mm.

Material suitability:
This brush has been designed especially for processing stainless steel (SST, Inox), e.g. 1.4031 (X5CrNi18-10 or 304), steel (structural steel – also termed St37, S235JR, 1.0037 and carbon steel) and cast steels, and produces optimum working results on these materials.

Structure and production:

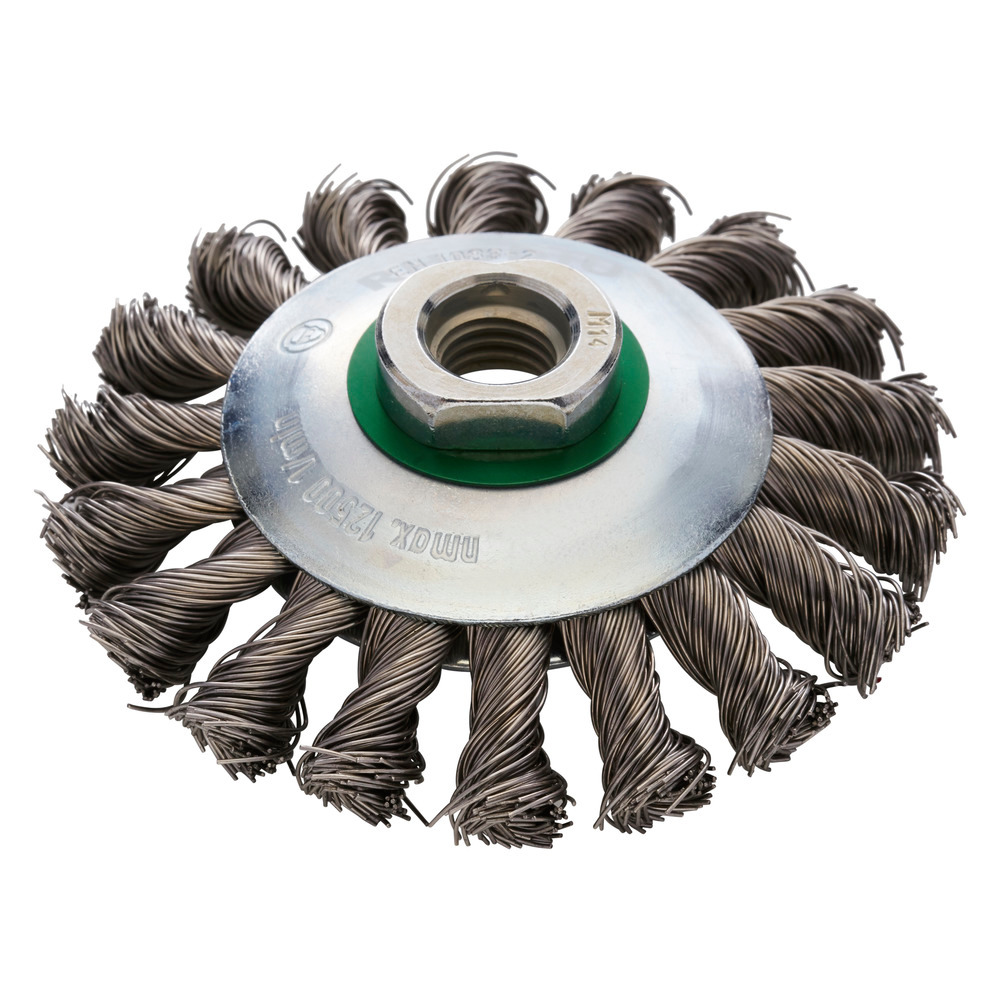

The fill material used for the EKBZ is high-quality knotted stainless steel wire. While this means that the brush is not particularly flexible, it makes it absolutely ideal for weld grinding work and the removal of heavy encrustations.

Applications:
A bevel brush is the perfect tool for processing corners and hard-to-reach places while also being ideal for surface cleaning work. Combining the advantages of cup and wheel brushes, this tool is a popular choice for cleaning and roughing work. This RHODIUS bevel brush for stainless steel is the perfect tool for processing rust- and acid-proofed steels, high-strength and high-alloy steels, structural steels, tool steels, tempered steels and high-strength metal sheets.

Dimensions:
The wire thickness for the EKBZ is 0.50 mm. This bevel brush is available in the diameters of 100 mm and 115 mm.

Notice:
The brush diameter, the length of brush filler as well as fill material density are all important factors that go towards producing optimum results for surface treatment. A longer wire length will make the brush softer and more flexible. These kinds of brushes will be an excellent choice for processing structured workpieces and for ensuring non-aggressive surface treatment. As wire length shortens, the brush can be used for more aggressive types of processing. To keep surface treatment work as efficient as possible, the best option here is to select the maximum brush diameter that can be fitted to the drive system on your tool. A high fill material density is not only essential for optimum performance but is also needed to ensure a long brush lifetime. In contrast, lower fill material densities increase the flexibility of the wire and are a better choice for processing profiled surfaces.
