Erwin Halder KG

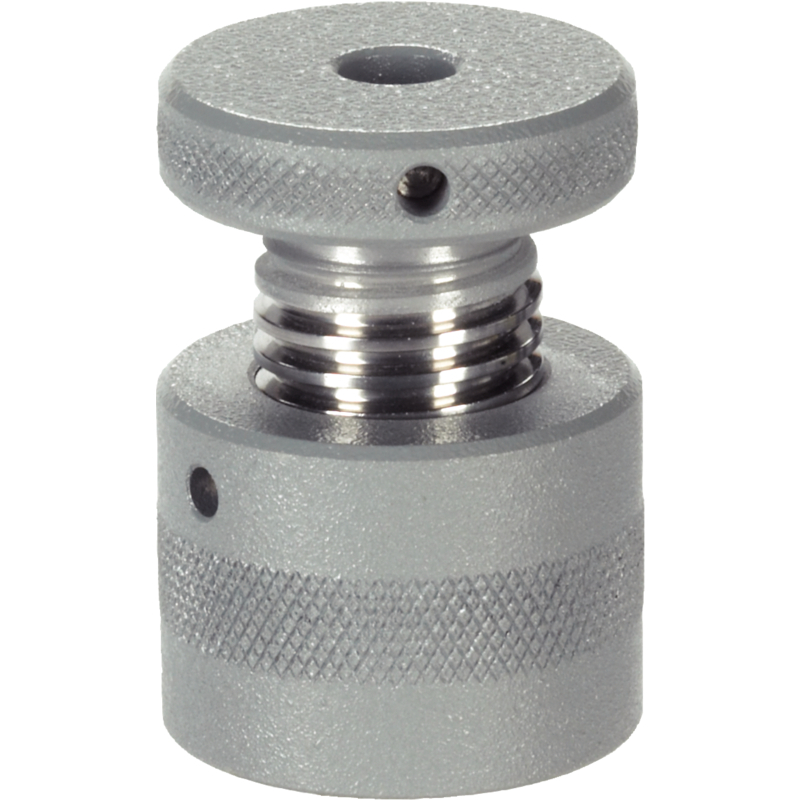

Screw Jacks

Koda: EH 23470-1
Izberi izvedbo

Screw Jacks

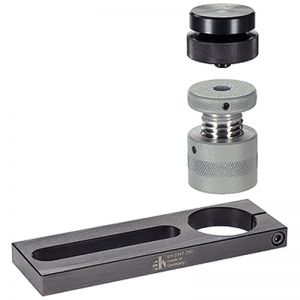

Trapezoidal self-locking thread, spindle with final safety device. The holders, which can be secured by means of the T-slots, make it possible to tighten the jacks so that they will not slip out of position when a workpiece is changed. They also allow to fit screw jacks to vertical clamping surfaces. Screw jacks are frequently used for supporting workpieces. Use of the self-aligning cap ensures a correctly aligned bearing surface. Using the centering plate as an intermediate element, it is possible to fit a number of screw jacks sizes 52, 70 and 100 together one above the other.

Material

Caps

  • Steel, case-hardened, blackened

Holder

  • Steel, blackened

Screw Jacks

  • Steel 1.0503 varnished
Za ogled cen se prijavite
Back to all list
Številka izdelka Carrying force d1 d2 d3 Caps Conflict Minerals free
EH 23470.0005 15 kN 31 mm 31 mm Tr 20 x 4 Steel, case-hardened, blackened yes
Loading Podatki se nalagajo...
EH 23470.0006 60 kN 50 mm 50 mm Tr 30 x 4 Steel, case-hardened, blackened yes
Loading Podatki se nalagajo...
EH 23470.0007 60 kN 50 mm 50 mm Tr 30 x 4 Steel, case-hardened, blackened yes
Loading Podatki se nalagajo...
EH 23470.0010 60 kN 50 mm 50 mm Tr 30 x 4 Steel, case-hardened, blackened yes
Loading Podatki se nalagajo...
EH 23470.0014 100 kN 69 mm 69 mm Tr 40 x 7 Steel, case-hardened, blackened yes
Loading Podatki se nalagajo...
EH 23470.0021 170 kN 80 mm 70 mm Tr 50 x 8 Steel, case-hardened, blackened yes
Loading Podatki se nalagajo...
EH 23470.0030 350 kN 100 mm 80 mm Tr 65 x 10 Steel, case-hardened, blackened yes
Loading Podatki se nalagajo...
Send inquiry
