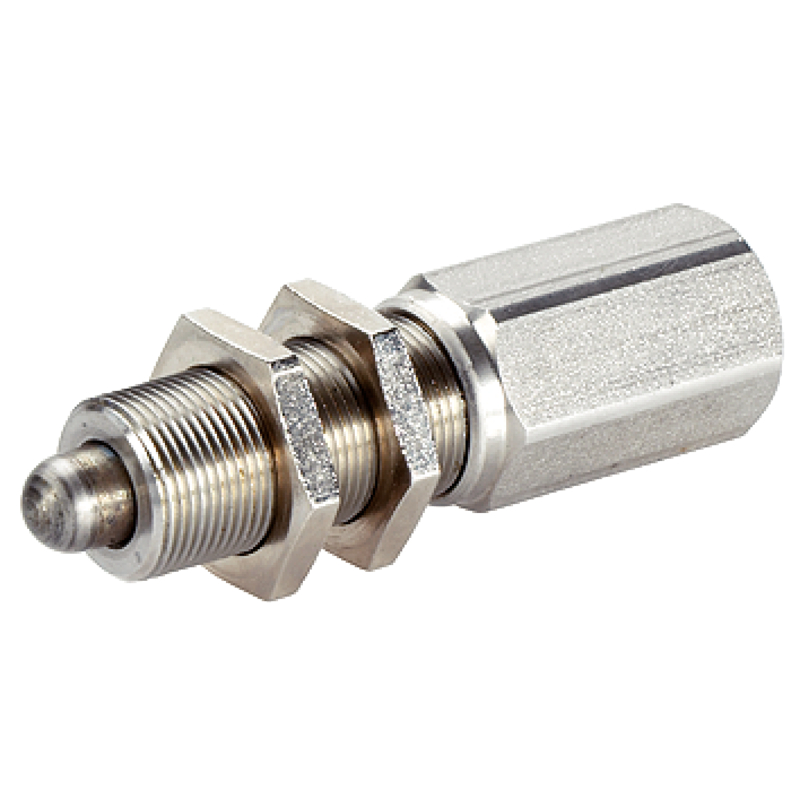

Spring plunger in robust and compact design with fine-pitch thread and integrated position sensing using standard proximity sensors. Suitable for multiple applications, e.g. for locking including position control and for proximity sensors with flush contact. Switching range adjustable via screwed position of sensor. Sensitivity of switching operations can be adjusted throughout the entire stroke.

Material

Pin

• Stainless steel 1.4305

Housing

• Stainless steel 1.4305

Nut

• Brass (ISO 4035), nickel-plated

Spring

• stainless steel
