Erwin Halder KG

Spring Plunger

with ball and internal hexagon

Koda: EH 22030.

Izberi izvedbo | Prenesi dokument

Erwin Halder KG

Spring Plunger

with ball and internal hexagon

Koda:: EH 22030.

Prenesi dokument

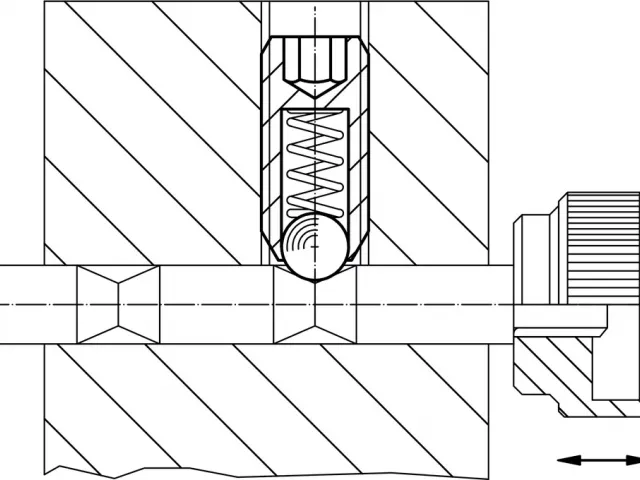

Spring plungers with ball and internal hexagon can be used for locking, positioning, fastening, as well as for applying pressure and ejection.

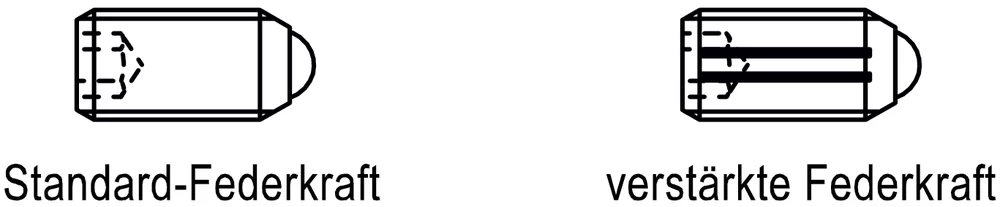

This spring plunger is a screw-in element consisting of a ball and a compression spring. Each version is available with a standard or reinforced spring.

This spring plunger made of steel/stainless steel with a ball is installed using an internal hexagon socket. A product group with screws is also available.

Za ogled cen se prijavite

Številka izdelka	Body	d₁	Ball	Branch	Conflict Minerals free
EH 22030.0003	Free cutting steel, blackened	M3	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0004	Free cutting steel, blackened	M4	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0005	Free cutting steel, blackened	M5	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0006	Free cutting steel, blackened	M6	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0008	Free cutting steel, blackened	M8	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0010	Free cutting steel, blackened	M10	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0012	Free cutting steel, blackened	M12	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0016	Free cutting steel, blackened	M16	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0020	Free cutting steel, blackened	M20	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0024	Free cutting steel, blackened	M24	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0043	Free cutting steel, blackened	M3	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0044	Free cutting steel, blackened	M4	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0045	Free cutting steel, blackened	M5	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0046	Free cutting steel, blackened	M6	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0048	Free cutting steel, blackened	M8	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0050	Free cutting steel, blackened	M10	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0052	Free cutting steel, blackened	M12	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0056	Free cutting steel, blackened	M16	Ball-bearing steel, hardened	Lift technology	yes
Podatki se nalagajo...
EH 22030.0060	Free cutting steel, blackened	M20	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
EH 22030.0064	Free cutting steel, blackened	M24	Ball-bearing steel, hardened	Machine engineering	yes
Podatki se nalagajo...
