G0110 Accessories for Venting of the Spring Area of Clamping Elements and Work Supports

Due to increased use of coolants and cutting fluids in metal cutting machining there is also an increased danger that some very aggressive fluids penetrate into the spring areas of single acting clamping elements and work supports, causing malfunctions.

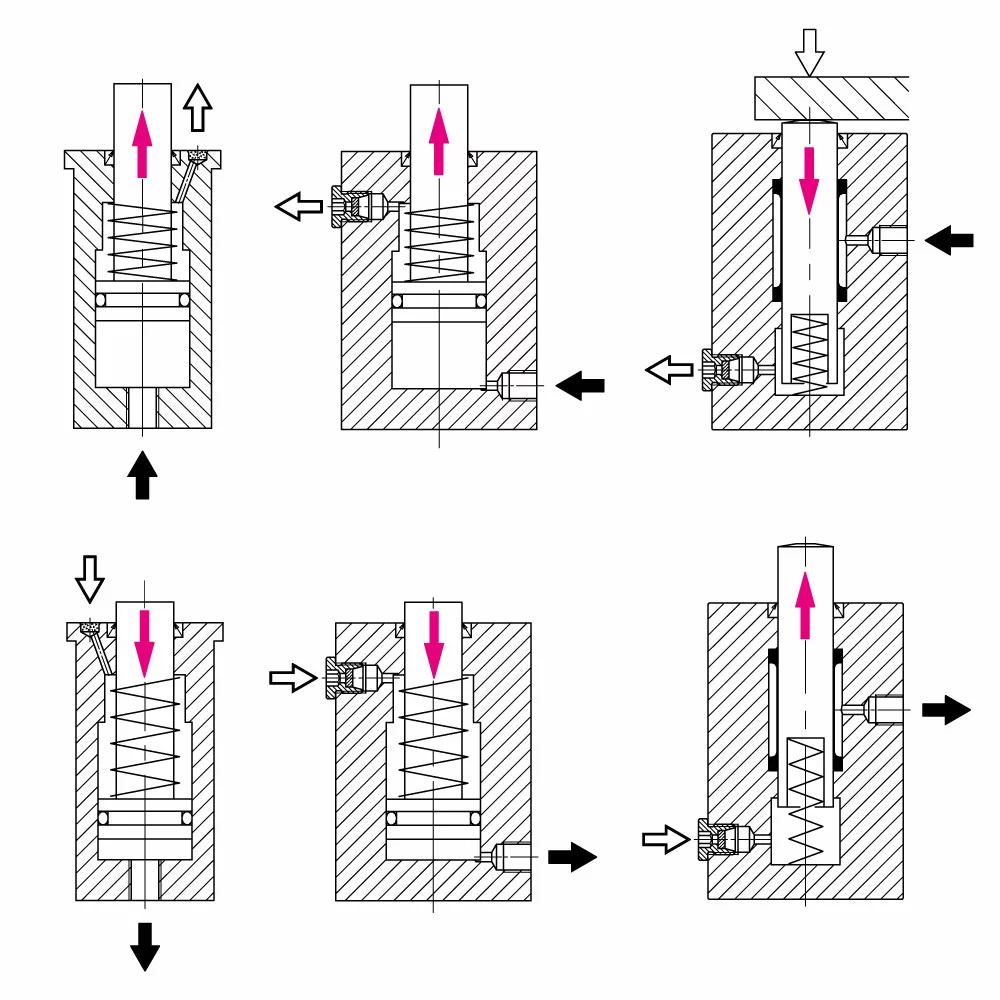

It is important to realize these problems already in the period of design. The following versions show possible solutions to the above problems.

Why venting has to be made?

Excess pressure or depression
in the spring area change the spring forces which leads to malfunctions.

Formation of condensation water
promotes rust formation and can lead to a complete failure of the elements.

Leakages
of hydraulic seals must drain off to the exterior without pressure, otherwise there will be malfunctions.

Dust and swarf
are retained by sintered metal air filters.

Liquids
are the real problem, because they are drawn off through the air filter. Thereby the breathing spring area is reduced, a higher excess pressure or depression is caused and the function is impaired.
