Clamping elements with hydraulic operation of a clamping lever.
Vzvodna vpenjala
Izdelki: 9
Application
Hydraulic hinge clamps are used for clamping of workpieces, when it is essential to keep
the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading.
Function

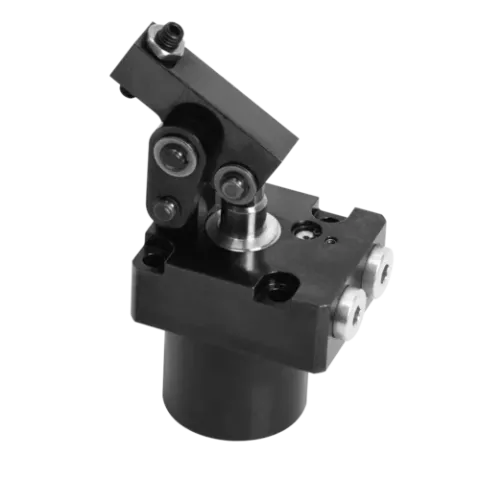

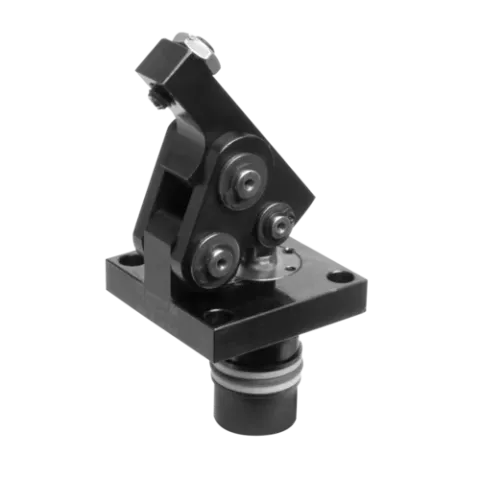

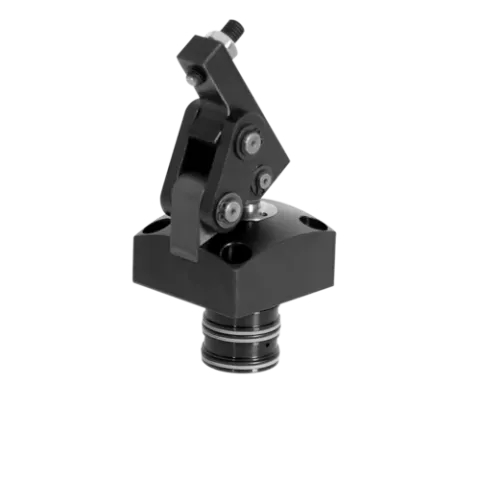

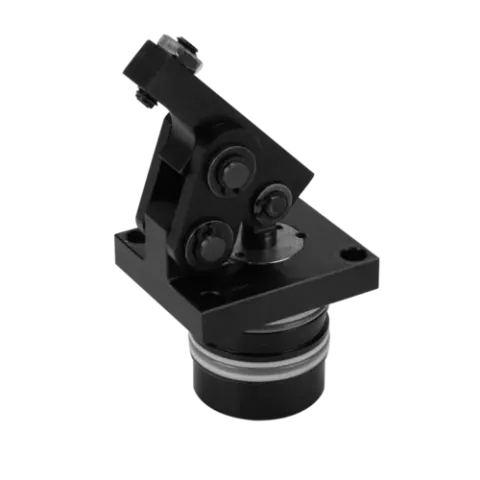

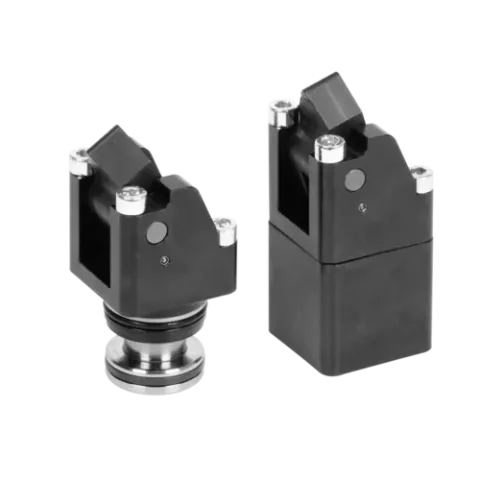

The hinge clamp is a double-acting hydraulic cylinder with integrated clamping lever. When
pressurising the element, the piston moves upwards and swivels the clamping lever over
a hinge forwards and at the same time downwards onto the workpiece. The piston force is
deviated by 180° and, depending on the lever length, the force is available as clamping force.
