Erwin Halder KG

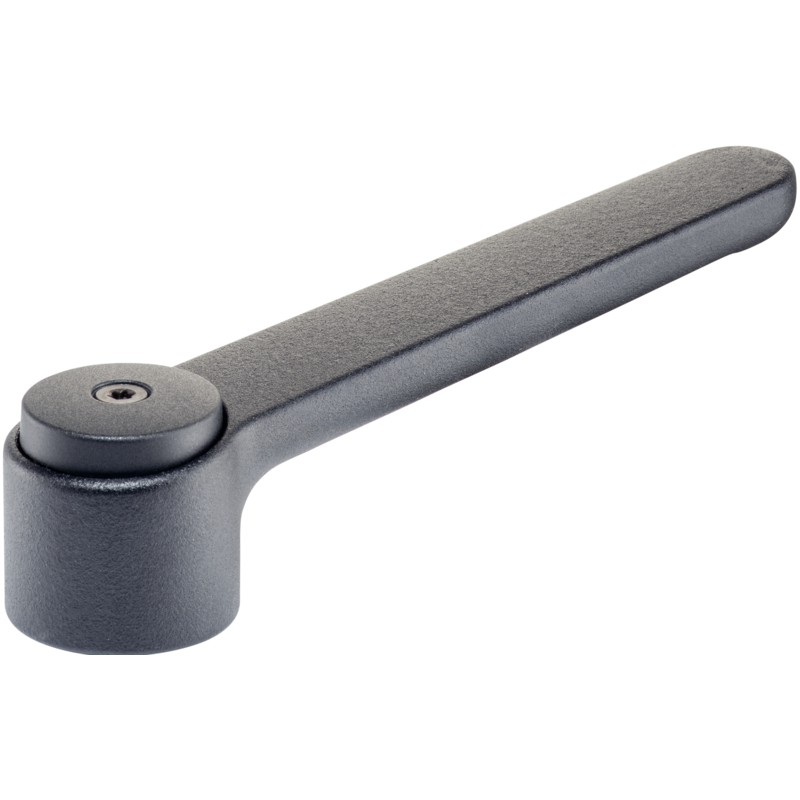

Nastavljive ploske vpenjalne ročice / z gladko izvrtino

stainless steel

Koda: EH 24441-2

Izberi izvedbo

Erwin Halder KG

Nastavljive ploske vpenjalne ročice / z gladko izvrtino

stainless steel

Koda:: EH 24441-2

Adjustable flat clamping levers are used when the swivel range is limited or a specific lever position is required.

Adjustable flat clamping levers are characterised by their low construction height and are particularly suitable for use in restricted spaces or when the lever should not overhang..

Material

Lever

Zinc die-cast, plastic coated, black, similar to RAL 9005, matt structure

Inner parts

Stainless steel 1.4305

Covering

Plastic, black

Operation

By lifting the lever the serrations are disengaged. The lever can be positioned by the serrations. On releasing the lever, the serrations are automatically re-engaged.

Notes

The threaded portion can be exchanged.

Za ogled cen se prijavite

Številka izdelka	d₁	d₂	d₂ [H7]	d₃	d₄	Colour	Covering
EH 24441.0205	32 mm	M8	16 mm			black	Plastic, black
Podatki se nalagajo...
EH 24441.0210	32 mm	M10	16 mm			black	Plastic, black
Podatki se nalagajo...
EH 24441.0215	32 mm	M12	16 mm			black	Plastic, black
Podatki se nalagajo...
EH 24441.0220	40 mm	M12	23 mm			black	Plastic, black
Podatki se nalagajo...
EH 24441.0225	40 mm	M16	23 mm			black	Plastic, black
Podatki se nalagajo...
EH 24441.0250	32 mm		8 mm	16 mm	32 mm	black	Plastic, black
Podatki se nalagajo...
EH 24441.0255	32 mm		10 mm	16 mm	32 mm	black	Plastic, black
Podatki se nalagajo...
EH 24441.0260	40 mm		12 mm	23 mm	40 mm	black	Plastic, black
Podatki se nalagajo...
EH 24441.0265	40 mm		16 mm	23 mm	40 mm	black	Plastic, black
Podatki se nalagajo...
EH 24441.0305	32 mm	M8	16 mm			silver	Plastic, light grey
Podatki se nalagajo...
EH 24441.0310	32 mm	M10	16 mm			silver	Plastic, light grey
Podatki se nalagajo...
EH 24441.0315	32 mm	M12	16 mm			silver	Plastic, light grey
Podatki se nalagajo...
EH 24441.0320	40 mm	M12	23 mm			silver	Plastic, light grey
Podatki se nalagajo...
EH 24441.0325	40 mm	M16	23 mm			silver	Plastic, light grey
Podatki se nalagajo...
EH 24441.0350	32 mm		8 mm	16 mm	32 mm	silver	Plastic, light grey
Podatki se nalagajo...
EH 24441.0355	32 mm		10 mm	16 mm	32 mm	silver	Plastic, light grey
Podatki se nalagajo...
EH 24441.0360	40 mm		12 mm	23 mm	40 mm	silver	Plastic, light grey
Podatki se nalagajo...
EH 24441.0365	40 mm		16 mm	23 mm	40 mm	silver	Plastic, light grey
Podatki se nalagajo...
