Erwin Halder KG

Potisni zatič

Koda: EH 23230-1

Izberi izvedbo

Erwin Halder KG

Koda:: EH 23230-1

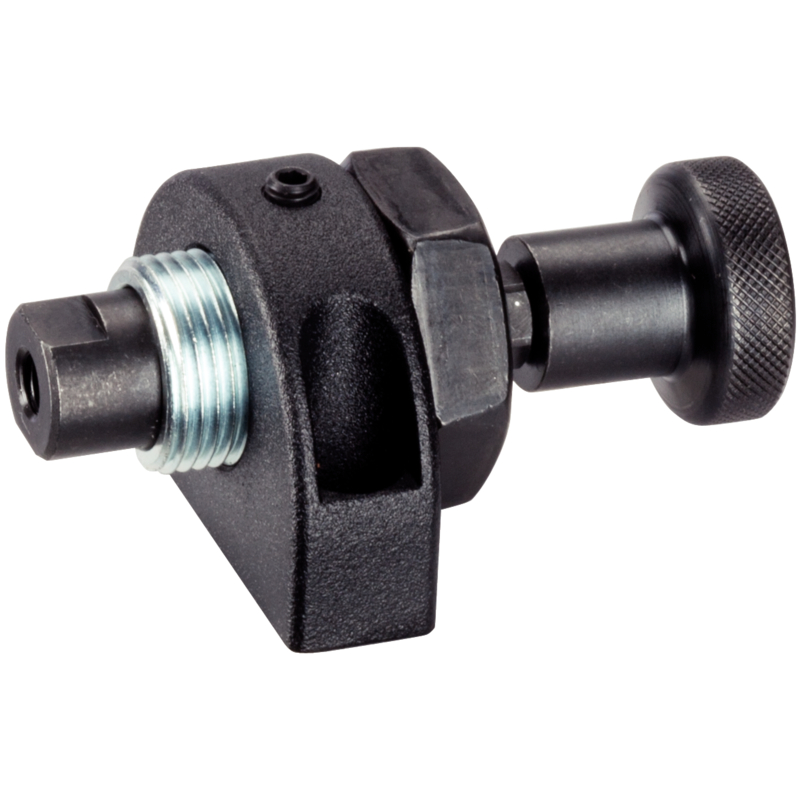

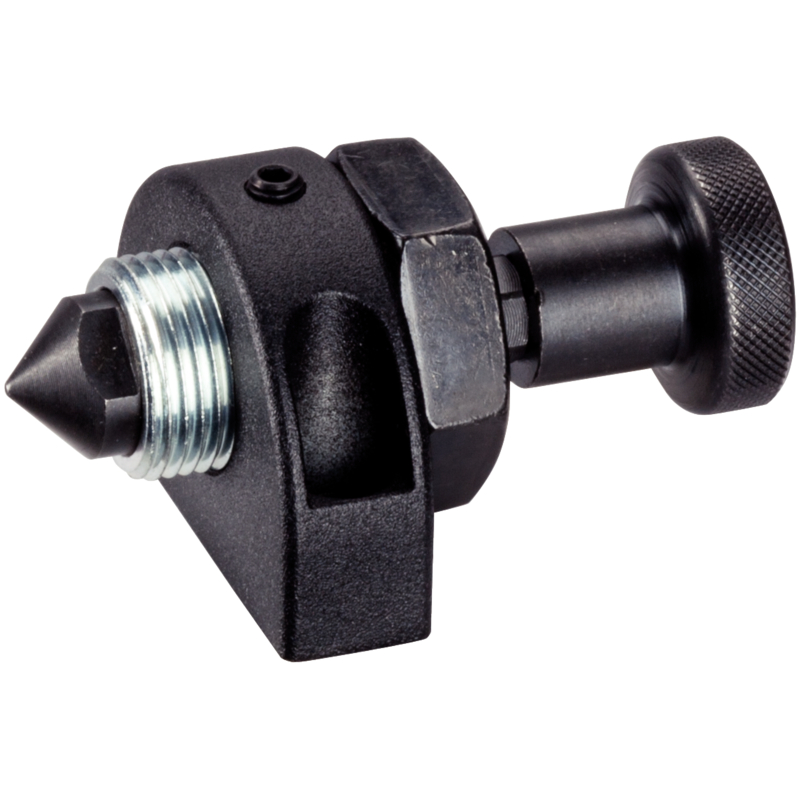

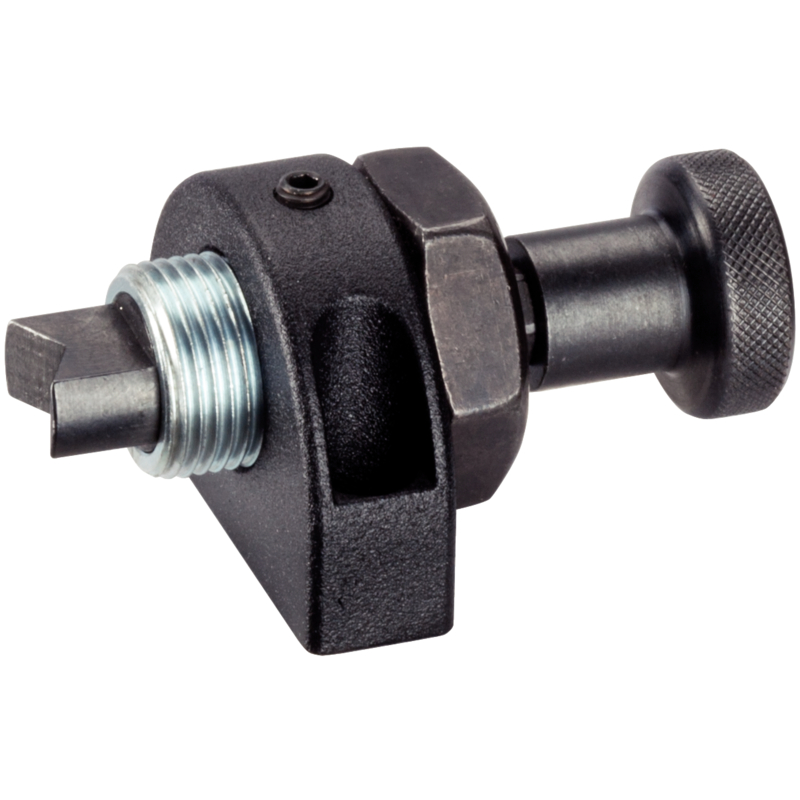

The push plunger is suitable for easy and safe positioning of workpieces or components prior to clamping or assembly.

Locating pins of your own profile or design can be attached to our threaded pin types.

Material

Body

Threaded pin

Mounting block

Knob

Lock nut

Za ogled cen se prijavite

Številka izdelka	B	Body	d₁	d₂	d₃	Conflict Minerals free
EH 23230.0510	12 mm	Steel, zinc-plated by galvanization	M12 x 1,5	9 mm	21 mm	yes
Podatki se nalagajo...
EH 23230.0512	14 mm	Steel, zinc-plated by galvanization	M16 x 1,5	12 mm	21 mm	yes
Podatki se nalagajo...
EH 23230.0514	14 mm	Steel, zinc-plated by galvanization	M20 x 1,5	14.5 mm	25 mm	yes
Podatki se nalagajo...
EH 23230.0530	12 mm	Steel, zinc-plated by galvanization	M12 x 1,5	9 mm	21 mm	yes
Podatki se nalagajo...
EH 23230.0532	14 mm	Steel, zinc-plated by galvanization	M16 x 1,5	12 mm	21 mm	yes
Podatki se nalagajo...
EH 23230.0534	14 mm	Steel, zinc-plated by galvanization	M20 x 1,5	14.5 mm	25 mm	yes
Podatki se nalagajo...
EH 23230.0550	12 mm	Steel, zinc-plated by galvanization	M12 x 1,5	9 mm	21 mm	yes
Podatki se nalagajo...
EH 23230.0552	14 mm	Steel, zinc-plated by galvanization	M16 x 1,5	12 mm	21 mm	yes
Podatki se nalagajo...
EH 23230.0554	14 mm	Steel, zinc-plated by galvanization	M20 x 1,5	14.5 mm	25 mm	yes
Podatki se nalagajo...
EH 23230.0570	12 mm	Steel, zinc-plated by galvanization	M12 x 1,5	9 mm	21 mm	yes
Podatki se nalagajo...
EH 23230.0572	14 mm	Steel, zinc-plated by galvanization	M16 x 1,5	12 mm	21 mm	yes
Podatki se nalagajo...
EH 23230.0574	14 mm	Steel, zinc-plated by galvanization	M20 x 1,5	14.5 mm	25 mm	yes
Podatki se nalagajo...
