Erwin Halder KG

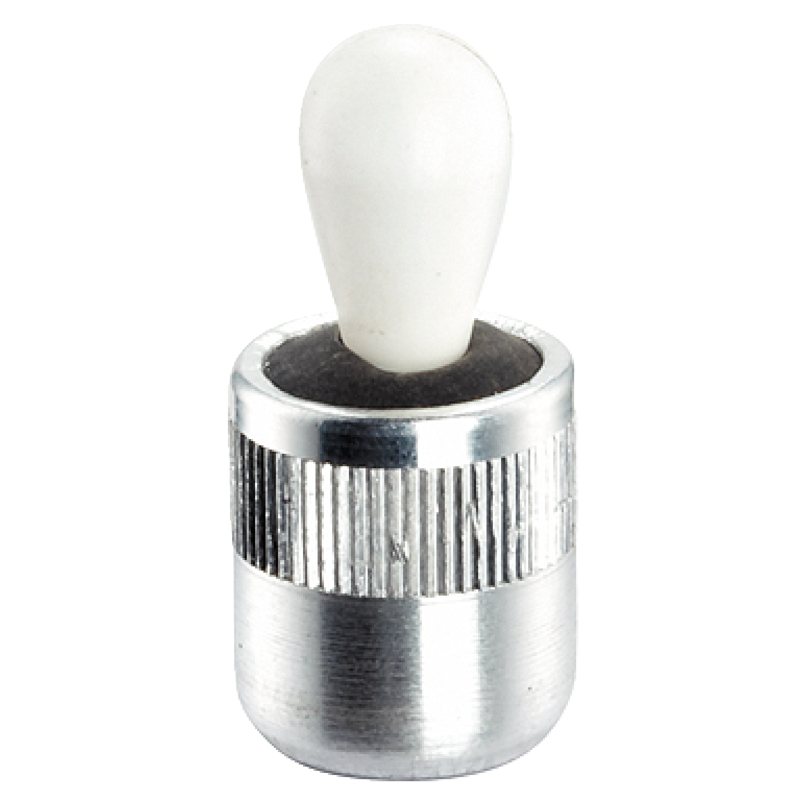

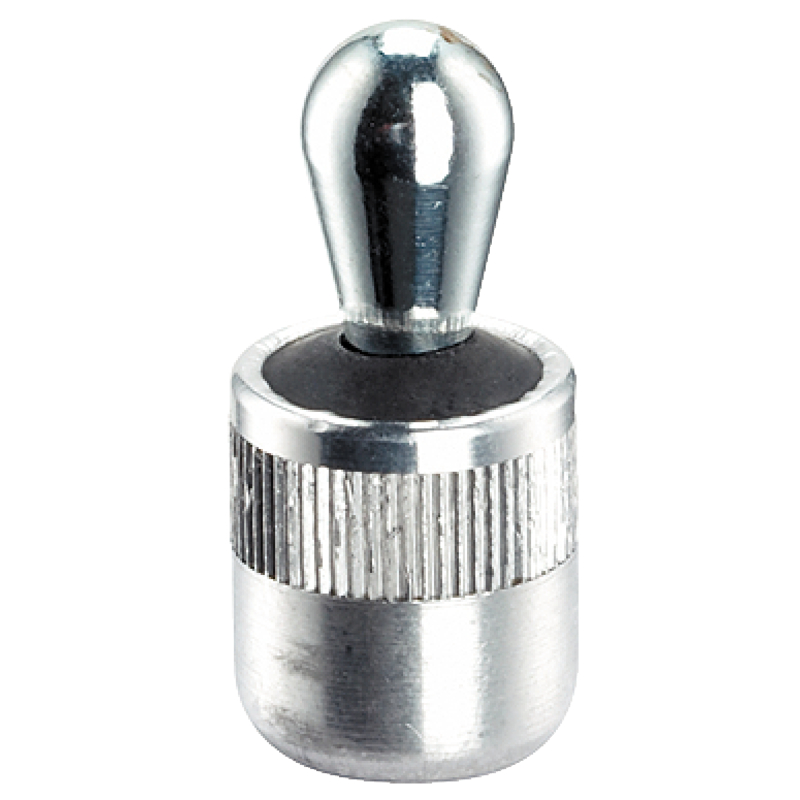

Stranski potisnik

smooth, with seal

Koda: EH 22150-2
Izberi izvedbo

Stranski potisnik

To be used for positioning and applying pressure, e.g. during painting and sandblasting.

Sealed against chips and dirt.

Material

Seal

  • CR

Body

  • Aluminium AI

Spring

  • stainless steel

Pin

  • Steel, case-hardened, zinc-plated by galvanization

Assembly

Installation by pressing in.

Formula for calculating the center distance for the mounting hole:

l0 = z/2 + w + x,

l0 = center distance,

y = workpiece height,

w = workpiece length,

x = coordinate dimension,

s = stroke,

z = stop diameter

Calculation dimension x:

y greater than or equal to l2 - d2/2, then x = d2/2 - s

or

y smaller than l2 - d2/2, then x = d2/2 - s - [(l2 - d2/2 - y) * 0,123]

Characteristic

Light spring load = spring from stainless steel

Za ogled cen se prijavite
Nazaj na seznam vseh
Številka izdelka Body D [H8] d1 d2 Conflict Minerals free Function
EH 22150.0110 Aluminium AI 6 mm 6 mm 3 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0111 Aluminium AI 6 mm 6 mm 3 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0112 Aluminium AI 6 mm 6 mm 3 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0120 Aluminium AI 10 mm 10 mm 5 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0121 Aluminium AI 10 mm 10 mm 5 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0122 Aluminium AI 10 mm 10 mm 5 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0125 Aluminium AI 10 mm 10 mm 6 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0126 Aluminium AI 10 mm 10 mm 6 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0127 Aluminium AI 10 mm 10 mm 6 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0130 Aluminium AI 12 mm 12 mm 8 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0131 Aluminium AI 12 mm 12 mm 8 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0132 Aluminium AI 12 mm 12 mm 8 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0140 Aluminium AI 16 mm 16 mm 10 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0141 Aluminium AI 16 mm 16 mm 10 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0142 Aluminium AI 16 mm 16 mm 10 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0150 Aluminium AI 6 mm 6 mm 3 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0160 Aluminium AI 10 mm 10 mm 5 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0165 Aluminium AI 10 mm 10 mm 6 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0170 Aluminium AI 12 mm 12 mm 8 mm yes tighten
Loading Podatki se nalagajo...
EH 22150.0180 Aluminium AI 16 mm 16 mm 10 mm yes tighten
Loading Podatki se nalagajo...
Send inquiry
