Erwin Halder KG

Threaded Lock Pins

Self-locking

Koda: EH 22355.

Izberi izvedbo

Erwin Halder KG

Threaded Lock Pins

Self-locking

Koda:: EH 22355.

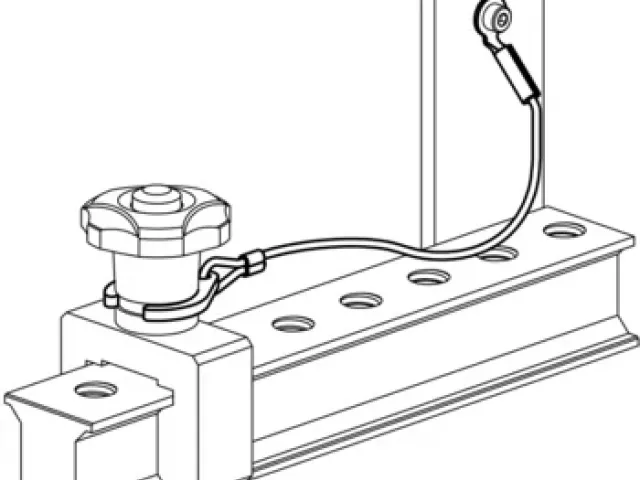

Threaded lock pins are used for quick fastening, locking, adjusting, changing, clamping, connecting and securing. Quickly and easily unlockable for frequently repeated connections.

By pressing the button, the threaded segments unlock and the threaded lock pin can be inserted into or removed from a threaded hole. A time-consuming screwing in and out is unnecessary.

The threaded lock pin is characterised by the following features:

Corrosion-protected
No time-consuming screwing in and out
Self-locking due to spring load
Material

Pin part
- Steel, manganese-phosphated
- Stainless Steel
Handle
- Thermoplastic PA 6, black, dull similar to RAL 9005
Press button
- Aluminium, orange, anodised
Threaded element
- Stainless steel 1.4542, precipitation-hardened
Spring
- Stainless Steel
Notes

Special types on request.

Due to the thread geometry, the clamping force is higher with the smaller thread sizes.

Za ogled cen se prijavite

Številka izdelka
Nobena verzija izdelka ne ustreza iskalnim kriterijem

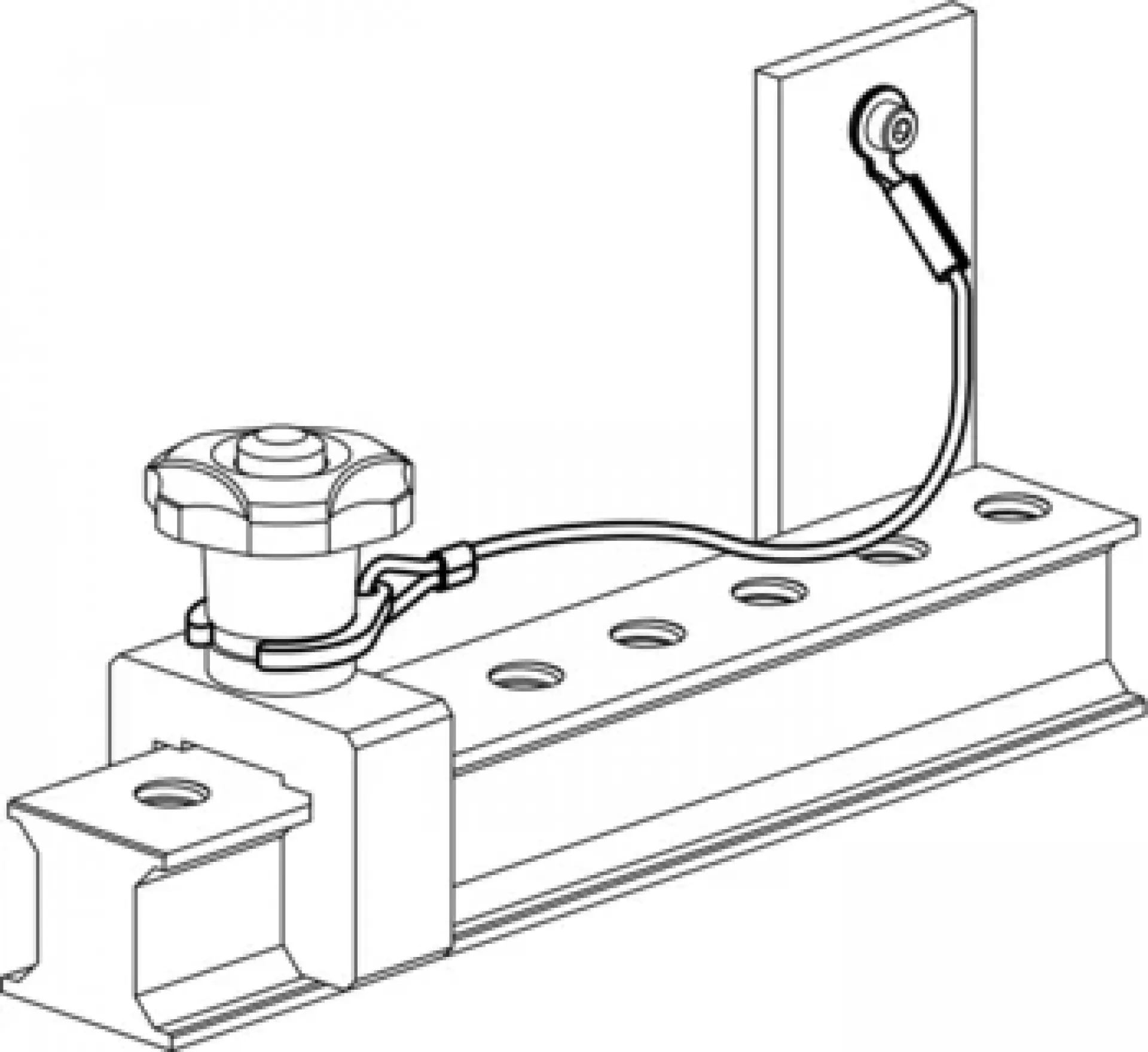

Assembly

Threaded lock pins can only be mounted into a thread that is true to gauge.

Mounting:

Press in the button and hold it down.
Insert the threaded lock pin.
Release the button (The button must be back in its original position.).
Tighten the threaded lock pin by hand as required.
It must be ensured that the threaded segments are engaged in the mounting thread.
