Erwin Halder KG

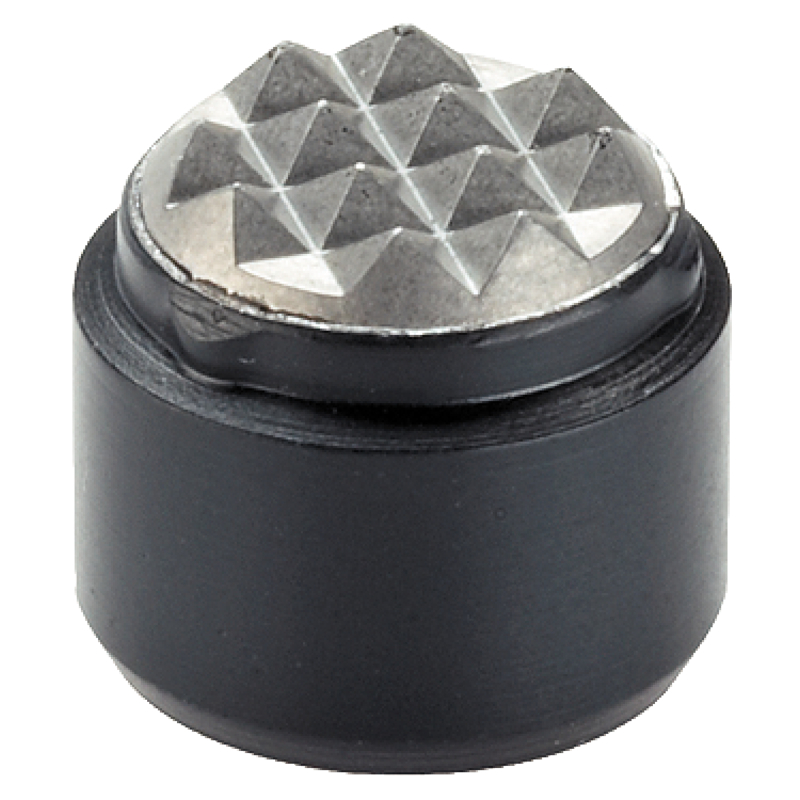

Vložek iz trde kovine

Koda: EH 22620-2

Izberi izvedbo

Erwin Halder KG

Koda:: EH 22620-2

Basic element to be mounted into clamping devices, clamping jaws, clamping arms, claw feed systems and so forth.

Zero play transmission of high holding forces, e.g. on cast or forged pieces.

Material

Insert

Body

Assembly

Assembly via a locating hole, the insert can be fastened by means of a screw.

Za ogled cen se prijavite

Številka izdelka	Body	d₂	d₃	D1 [H7]	Conflict Minerals free	d₁ [n6]
EH 22620.0208	Heat-treated steel, tempered, phosphated	M5	~ 7.7 mm	10 mm	yes	10 mm
Podatki se nalagajo...
EH 22620.0211	Heat-treated steel, tempered, phosphated	M6	~ 10.6 mm	14 mm	yes	14 mm
Podatki se nalagajo...
EH 22620.0213	Heat-treated steel, tempered, phosphated	M6	~ 11.9 mm	16 mm	yes	16 mm
Podatki se nalagajo...
EH 22620.0215	Heat-treated steel, tempered, phosphated	M6	~ 16 mm	20 mm	yes	20 mm
Podatki se nalagajo...
EH 22620.0217	Heat-treated steel, tempered, phosphated	M6	~ 21 mm	25 mm	yes	25 mm
Podatki se nalagajo...
EH 22620.0228	Heat-treated steel, tempered, phosphated	M5	~ 6.3 mm	10 mm	yes	10 mm
Podatki se nalagajo...
EH 22620.0231	Heat-treated steel, tempered, phosphated	M6	~ 9.3 mm	14 mm	yes	14 mm
Podatki se nalagajo...
EH 22620.0233	Heat-treated steel, tempered, phosphated	M6	~ 10 mm	16 mm	yes	16 mm
Podatki se nalagajo...
