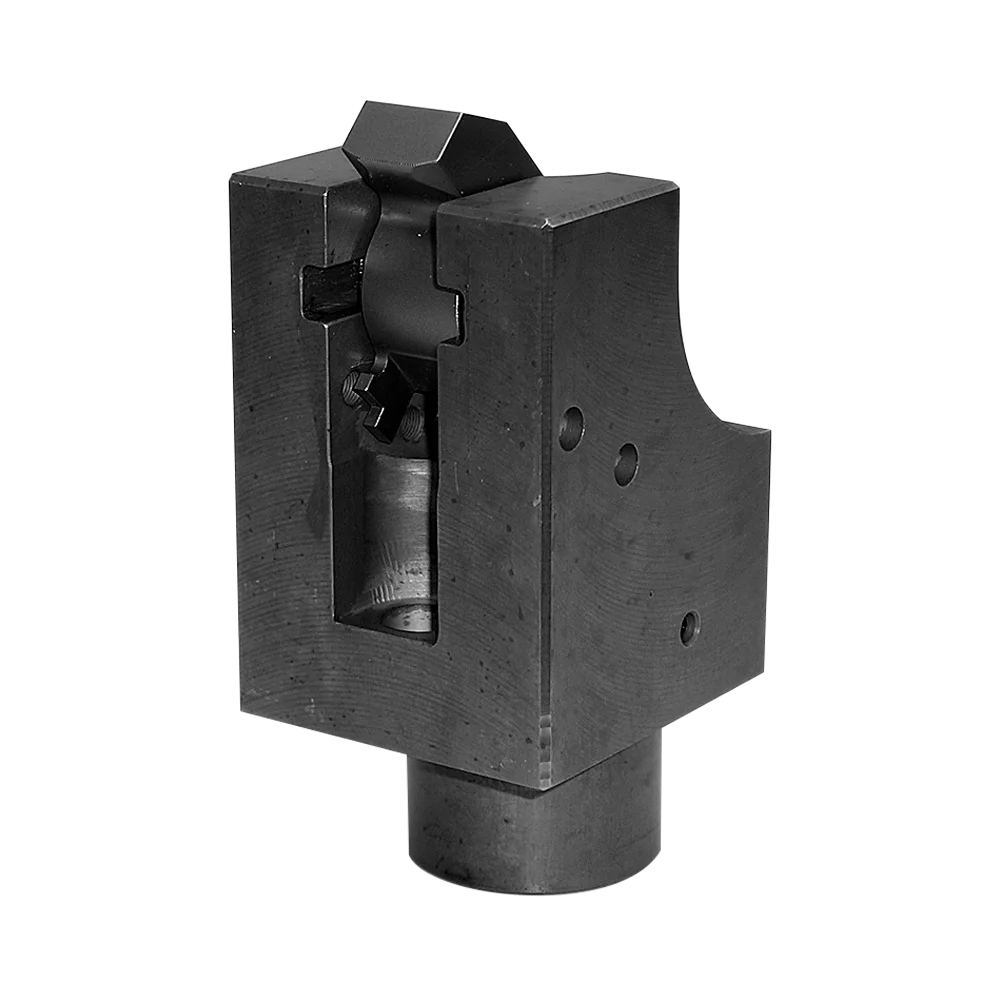

B18242 Slide pivot clamps

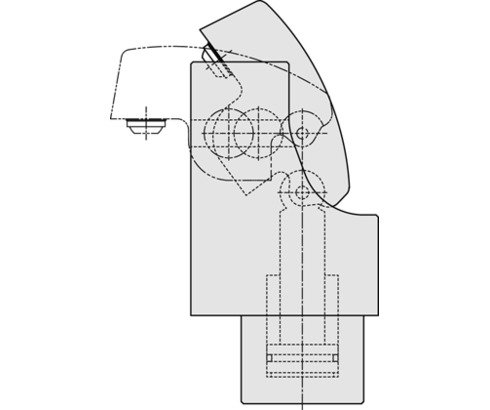

In the case of the slide pivot clamp the piston force is deviated by 180° by the clamping lever and is available as clamping force with virtually no loss of efficiency. Kinematics of the slide pivot clamp allow sliding back of the clamping lever during unclamping for unimpeded inser­tion of the workpieces.

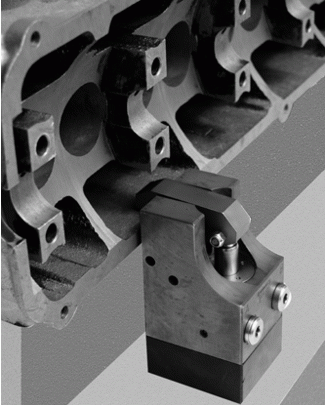

The position of the clamping lever can be monitored by inductive proximity switches or pneumatic jets. The pivot slide clamp can be installed im­mersed up to the flange surface in a hole of the fixture body or via intermediate plates which are available as an accessory. For both solu­tions there is the possibility to supply the hyd­raulic oil not only by fitting connection but also via drilled channels in the fixture body.
