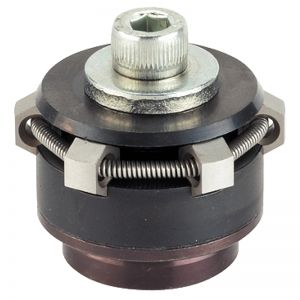

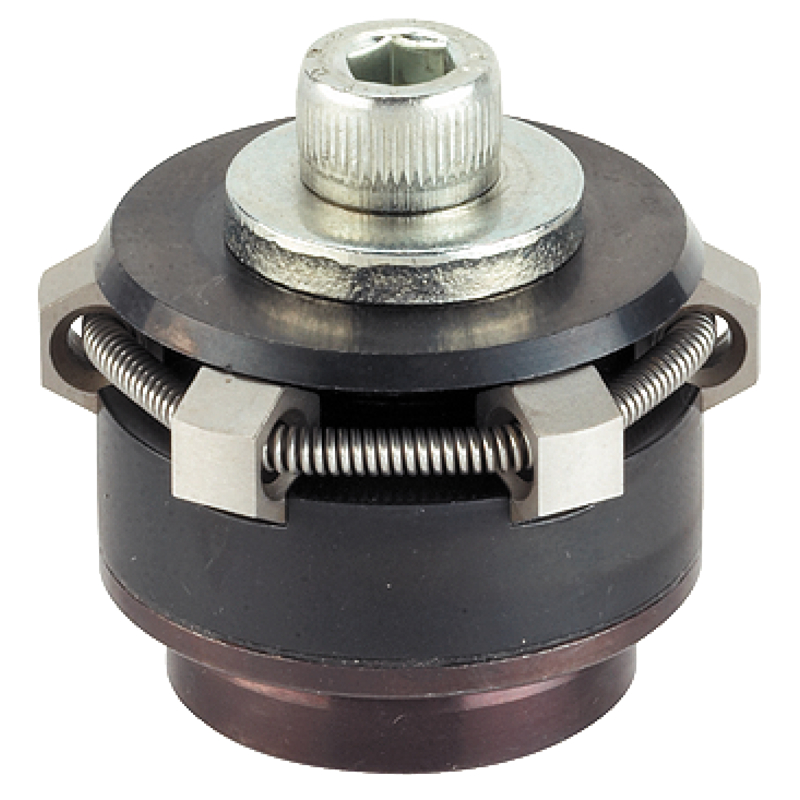

For clamping and centering of workpieces with internal bore. Exact self centering with a precision of ±0,025 mm. Due to the clamping segments being ground, workpieces with raw and/or machined surfaces can be frictionally connected, centered and held down at the seats. Large adjustment stroke and a low building height are a feature of the centering clamping element.

Mounting from either top or bottom.

Material

Body

• Tool steel, hardened, blackened

Spring

• stainless steel

Clamping segments

• Stainless steel 1.4112, hardened and ground

Assembly

Assembly instructions for mounting from above: Remove clamping plate and screw. Screw in threaded pin from below, and tighten from above using female WS2.
