Erwin Halder KG

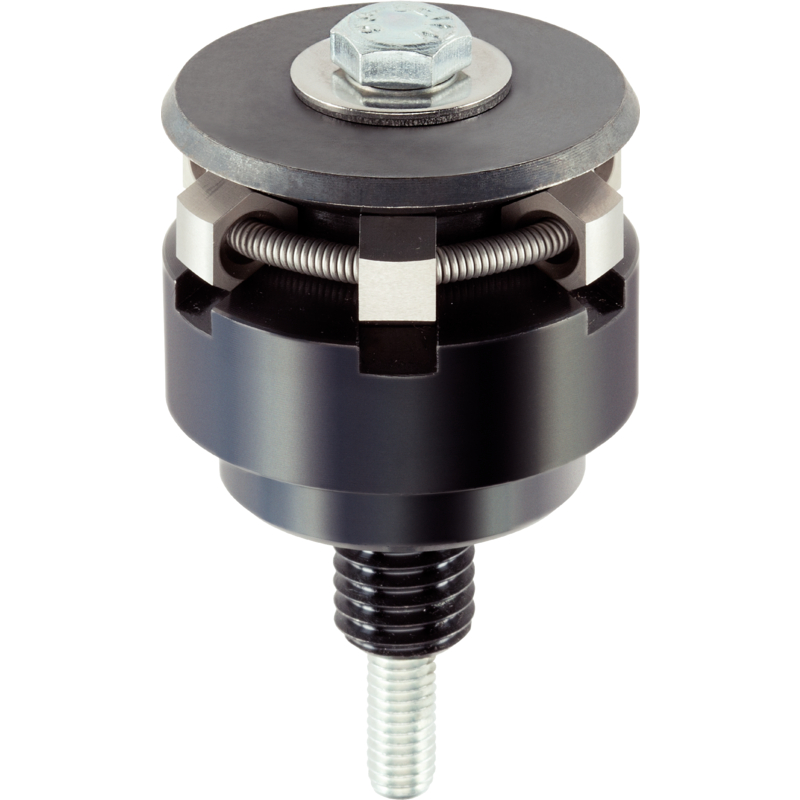

Centering Clamping Element

with clamping segments, operation from the bottom

Koda:: EH 23340-3

For centering and clamping in blind holes of workpieces with locating hole. Exact self-centering with a precision of ±0,025 mm. Components with raw or machined surface can be centered positively and are pulled down on the contact points due to the ground clamping elements. The centering clamping element is characterised by large setting ranges and a compact construction height.

Mounting from either top or bottom.

Material

Body

Tool steel, hardened, blackened

Spring

stainless steel

Clamping segments

Stainless steel 1.4112, hardened and ground

Assembly

Assembly instructions for mounting from above: Remove clamping plate and screw. Screw in threaded pin from below, and tighten from above using female WS2.

Operation

Operation from bottom manually or automatically with either pneumatic or hydraulic actuation.

Za ogled cen se prijavite

Številka izdelka	Body	Clamping Force	d₁ max.	Clamping segments	Conflict Minerals free	d₁ min.
EH 23340.0114	Tool steel, hardened, blackened	35 kN	18.5 mm	Stainless steel 1.4112, hardened and ground	yes	14.5 mm
Podatki se nalagajo...
EH 23340.0120	Tool steel, hardened, blackened	4 kN	22.5 mm	Stainless steel 1.4112, hardened and ground	yes	18.5 mm
Podatki se nalagajo...
EH 23340.0122	Tool steel, hardened, blackened	4.5 kN	26.5 mm	Stainless steel 1.4112, hardened and ground	yes	22.5 mm
Podatki se nalagajo...
EH 23340.0126	Tool steel, hardened, blackened	4.5 kN	30.5 mm	Stainless steel 1.4112, hardened and ground	yes	26.5 mm
Podatki se nalagajo...
EH 23340.0130	Tool steel, hardened, blackened	4.5 kN	38.5 mm	Stainless steel 1.4112, hardened and ground	yes	30.5 mm
Podatki se nalagajo...
EH 23340.0138	Tool steel, hardened, blackened	6.5 kN	46.5 mm	Stainless steel 1.4112, hardened and ground	yes	38.5 mm
Podatki se nalagajo...
EH 23340.0146	Tool steel, hardened, blackened	6.5 kN	54.5 mm	Stainless steel 1.4112, hardened and ground	yes	46.5 mm
Podatki se nalagajo...
EH 23340.0154	Tool steel, hardened, blackened	8 kN	70.5 mm	Stainless steel 1.4112, hardened and ground	yes	54.5 mm
Podatki se nalagajo...
EH 23340.0170	Tool steel, hardened, blackened	10 kN	86.5 mm	Stainless steel 1.4112, hardened and ground	yes	70.5 mm
Podatki se nalagajo...
EH 23340.0186	Tool steel, hardened, blackened	12.5 kN	102.5 mm	Stainless steel 1.4112, hardened and ground	yes	86.5 mm
