Erwin Halder KG

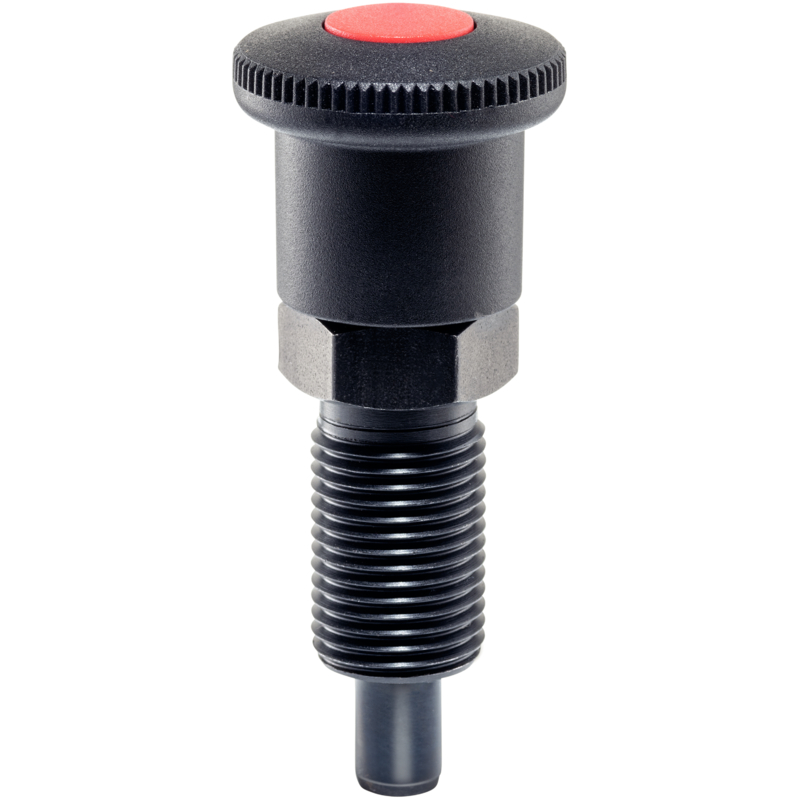

Index Plunger

with rapid locking head

Koda: EH 22122-2

Izberi izvedbo

Erwin Halder KG

Index Plunger

with rapid locking head

Koda:: EH 22122-2

Index plungers are used for indexing bores.

Material

Body

Steel, blackened

Press button

Thermoplastic POM, red

Locking pin

Steel, hardened

Knob

Thermoplastic PA 6, black-grey, matt

Assembly

The screw length can be adapted by distance collars for index plungers (EH 22120.).

Operation

The locking pin is drawn in and locked by pulling the knob. The projecting red press button indicates the locking position (locking pin drawn in). Pushing the red press button causes the locking pin to jump back into the locking position.

Notes

Knob not removable.

Lock nuts have to be purchased separately.

Za ogled cen se prijavite

Številka izdelka	Body	d₂	d₃	F₁	Conflict Minerals free	d₁ [-0.02, -0.04]
EH 22122.0205	Steel, blackened	M12 x 1,5	30 mm	~ 6.5 N	yes	6 mm
Podatki se nalagajo...
EH 22122.0210	Steel, blackened	M12 x 1,5	30 mm	~ 6 N	yes	6 mm
Podatki se nalagajo...
EH 22122.0215	Steel, blackened	M16 x 1,5	30 mm	~ 8.5 N	yes	8 mm
Podatki se nalagajo...
EH 22122.0220	Steel, blackened	M16 x 1,5	30 mm	~ 8.5 N	yes	8 mm
Podatki se nalagajo...
EH 22122.0225	Steel, blackened	M16 x 1,5	30 mm	~ 9.5 N	yes	10 mm
Podatki se nalagajo...
EH 22122.0305	Stainless steel 1.4305	M12 x 1,5	30 mm	~ 6.5 N	yes	6 mm
Podatki se nalagajo...
EH 22122.0310	Stainless steel 1.4305	M12 x 1,5	30 mm	~ 6 N	yes	6 mm
Podatki se nalagajo...
EH 22122.0315	Stainless steel 1.4305	M16 x 1,5	30 mm	~ 8.5 N	yes	8 mm
Podatki se nalagajo...
EH 22122.0320	Stainless steel 1.4305	M16 x 1,5	30 mm	~ 8.5 N	yes	8 mm
Podatki se nalagajo...
EH 22122.0325	Stainless steel 1.4305	M16 x 1,5	30 mm	~ 9.5 N	yes	10 mm
Podatki se nalagajo...
