Erwin Halder KG

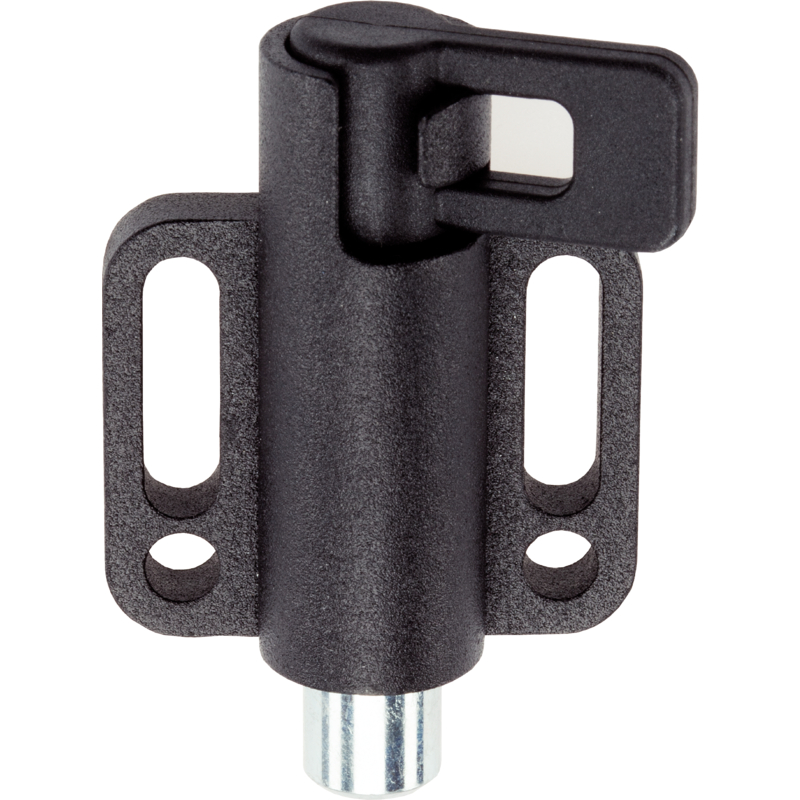

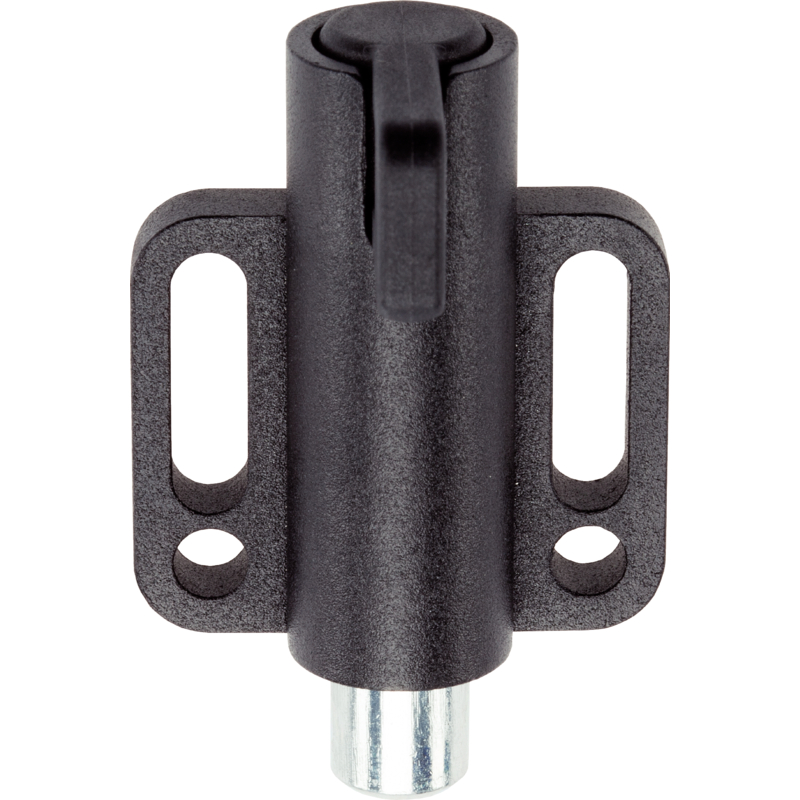

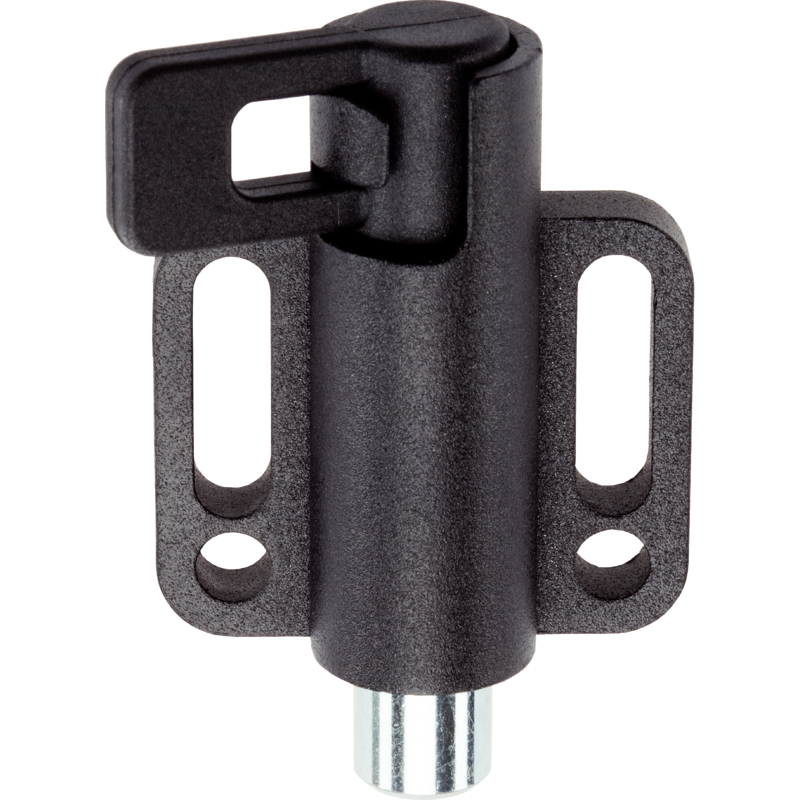

Index Bolt

with mounting flange, horizontal

Koda:: EH 22120-4

Index bolts are used for indexing purposes.

Material

Housing

Zinc die-cast, plastic coated, black

Locking pin

Steel, zinc-plated by galvanization

Catch

plastic

Assembly

Assembly by means of washers ISO 7092.

Operation

When using the model with locking mechanism, you pull out the bolt, turn it by 70° and secure it using the notched catch (if the locking pin should not overhang).

Za ogled cen se prijavite

Številka izdelka	b₁	b₂	b₃	b₄	Body	d₂	d₃	F₁	Catch	Conflict Minerals free	d₁ [-0.02, -0.04]

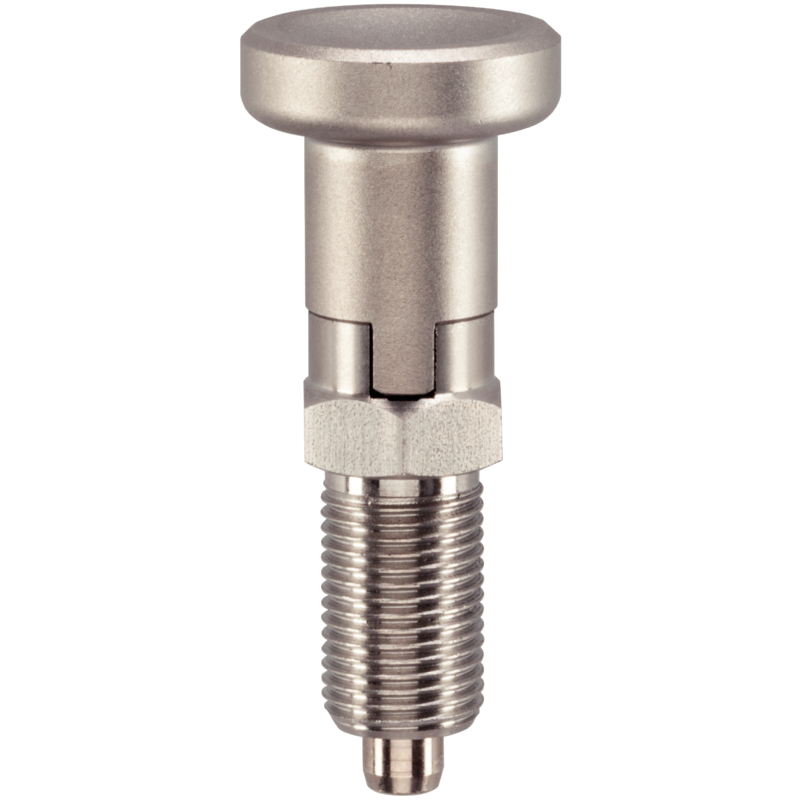

EH 22120.0615					Stainless steel 1.4305	M10 x 1	21 mm	~ 6 N		yes	5 mm
Podatki se nalagajo...
EH 22120.0616					Stainless steel 1.4305	M12 x 1,5	25 mm	~ 5.5 N		yes	6 mm
Podatki se nalagajo...
EH 22120.0618					Stainless steel 1.4305	M16 x 1,5	31 mm	~ 11.5 N		yes	8 mm
Podatki se nalagajo...
EH 22120.0620					Stainless steel 1.4305	M20 x 1,5	31 mm	~ 28 N		yes	10 mm
Podatki se nalagajo...
EH 22120.1016	38 mm	32 mm	16 mm	54 mm					plastic	yes
Podatki se nalagajo...
EH 22120.1020	38 mm	32 mm	16 mm	54 mm					plastic	yes
Podatki se nalagajo...
EH 22120.1024	46 mm	40 mm	20 mm	6.4 mm					plastic	yes
Podatki se nalagajo...
EH 22120.1028	38 mm	32 mm	16 mm	54 mm					plastic	yes
Podatki se nalagajo...
EH 22120.1032	46 mm	40 mm	20 mm	6.4 mm					plastic	yes
Podatki se nalagajo...
EH 22120.1036	46 mm	40 mm	20 mm	6.4 mm					plastic	yes
Podatki se nalagajo...
EH 22120.1116	38 mm	32 mm	16 mm	54 mm					plastic	yes
Podatki se nalagajo...
EH 22120.1120	38 mm	32 mm	16 mm	54 mm					plastic	yes
Podatki se nalagajo...
EH 22120.1124	46 mm	40 mm	20 mm	6.4 mm					plastic	yes
Podatki se nalagajo...
EH 22120.1128	38 mm	32 mm	16 mm	54 mm					plastic	yes
Podatki se nalagajo...
EH 22120.1132	46 mm	40 mm	20 mm	6.4 mm					plastic	yes
Podatki se nalagajo...
EH 22120.1136	46 mm	40 mm	20 mm	6.4 mm					plastic	yes
Podatki se nalagajo...
EH 22120.1216	38 mm	32 mm	16 mm	54 mm					plastic	yes
Podatki se nalagajo...
EH 22120.1220	38 mm	32 mm	16 mm	54 mm					plastic	yes
Podatki se nalagajo...
EH 22120.1224	46 mm	40 mm	20 mm	6.4 mm					plastic	yes
Podatki se nalagajo...
EH 22120.1228	38 mm	32 mm	16 mm	54 mm					plastic	yes
Podatki se nalagajo...
