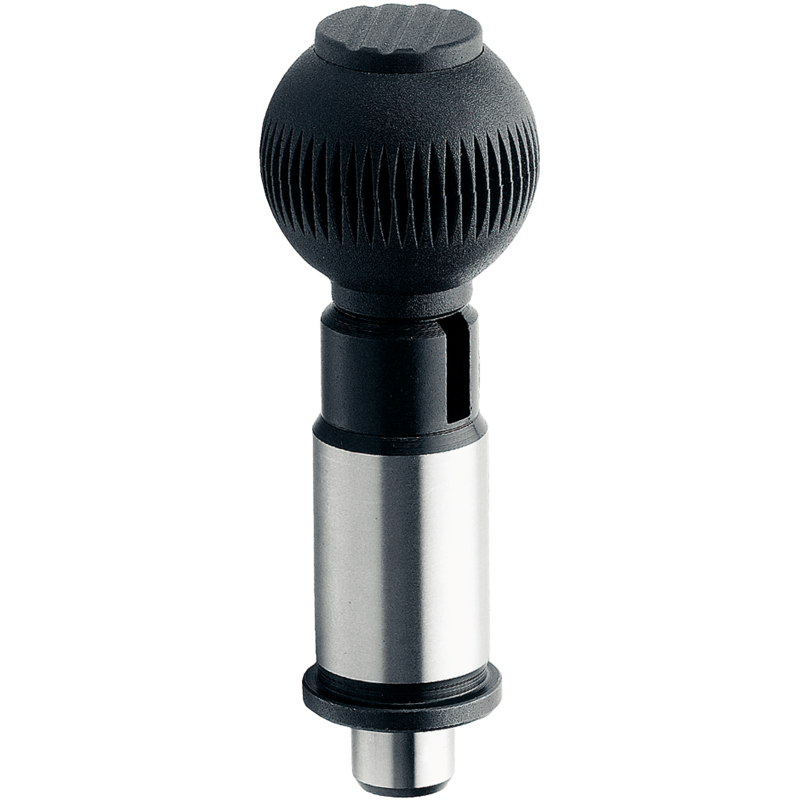

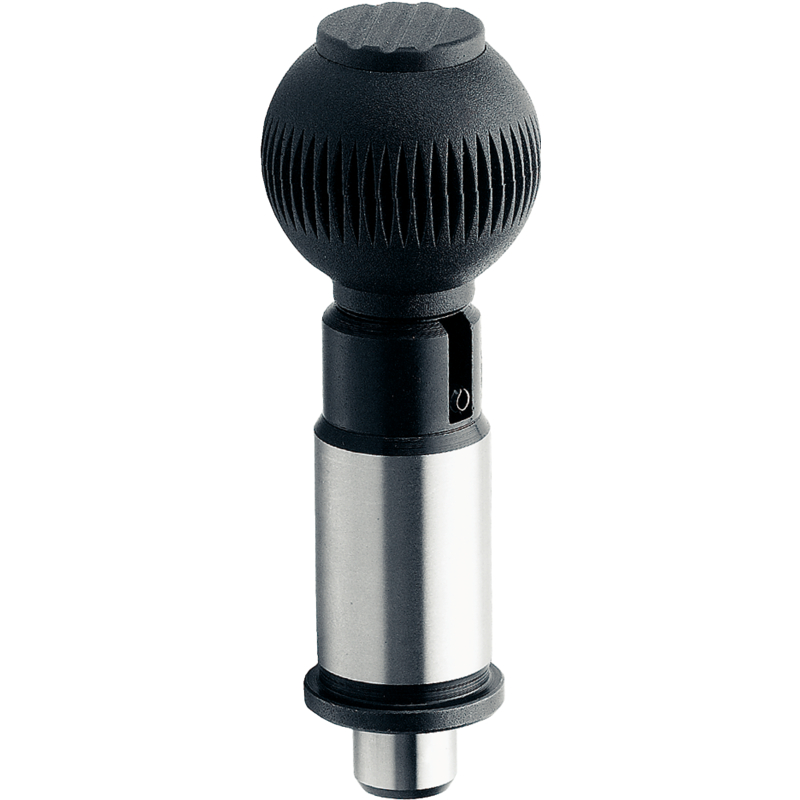

Precision Index Plunger

with cylindrical pin

Koda: EH 22130-1

Izberi izvedbo

Erwin Halder KG

Precision Index Plunger

with cylindrical pin

Koda:: EH 22130-1

Precision index plungers together with bushings are a perfect combination for quick positioning and mounting.

The precise tolerance of both, the precision index plunger and the bushing, guarantees a high repeatability of these two elements.

Material

Case-hardened steel, case-hardened, blackened and ground

Bushing

Case-hardened steel, case-hardened, blackened and ground

Body

Case-hardened steel, case-hardened, blackened and ground

Ball knob

Thermoplastic, greyish black

Assembly

To achieve precise setting, ball grip and index plunger have to be glued after assembly.

Operation

When using locking index plungers the knob is pulled out and turned 90°.

Za ogled cen se prijavite

Številka izdelka	Body	d₂	Ball knob	Bushing	Conflict Minerals free	d₁ [-0.005, -0.01]
EH 22130.0010	Case-hardened steel, case-hardened, blackened and ground	19 mm	Thermoplastic, greyish black	Case-hardened steel, case-hardened, blackened and ground	yes	10 mm
