Erwin Halder KG

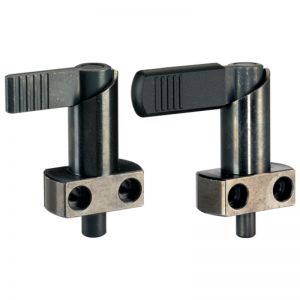

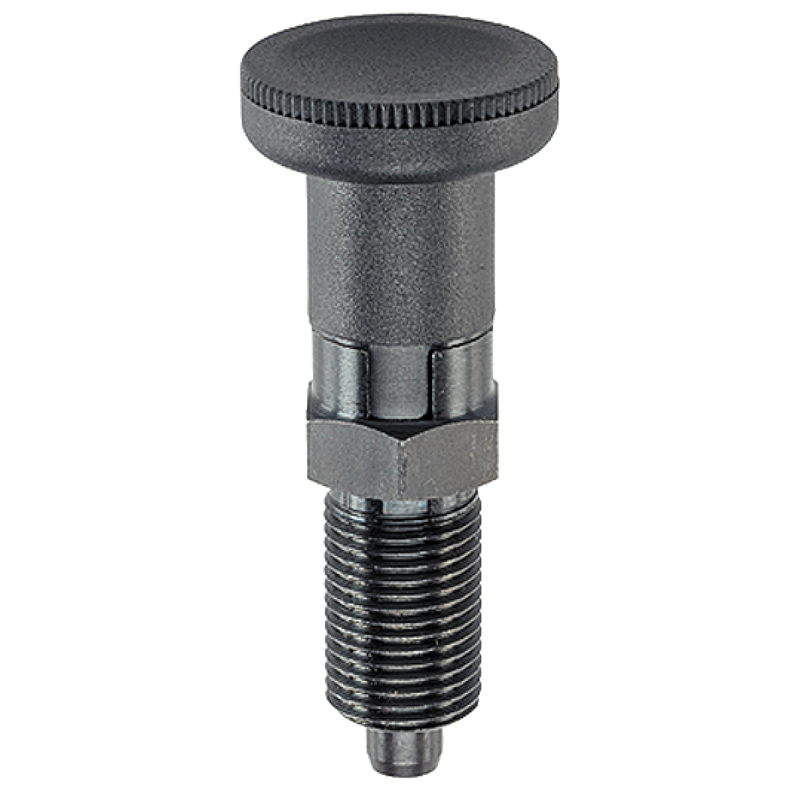

Index Bolt

with mounting flange

Koda:: EH 22120-3

Index bolts are used for indexing purposes.

Plastic cover for grip allows better handling.

Material

Body

Steel, blackened

Locking pin

Steel, nitrided, black

Assembly

Right and left mounting is possible due to countersinks on both sides.

Index bolt for lateral fastening.

Operation

By turning the index bolt 180° the locking pin will be pulled-in and secured by a notched catch (when locking pin should not overhang).

Za ogled cen se prijavite

Številka izdelka	Body	d₂	d₃	F₁	Conflict Minerals free	d₁ [0, -0.05]	d₁ [-0.02, -0.04]
EH 22120.0205	Free cutting steel, blackened	M10 x 1	21 mm	~ 6 N	yes		5 mm
Podatki se nalagajo...
EH 22120.0206	Free cutting steel, blackened	M12 x 1,5	25 mm	~ 5.5 N	yes		6 mm
Podatki se nalagajo...
EH 22120.0208	Free cutting steel, blackened	M16 x 1,5	31 mm	~ 11.5 N	yes		8 mm
Podatki se nalagajo...
EH 22120.0210	Free cutting steel, blackened	M20 x 1,5	31 mm	~ 28 N	yes		10 mm
Podatki se nalagajo...
EH 22120.0376	Steel, blackened	16 mm	35 mm	~ 12 N	yes	6 mm
Podatki se nalagajo...
EH 22120.0378	Steel, blackened	16 mm	35 mm	~ 12 N	yes	8 mm
Podatki se nalagajo...
EH 22120.0379	Steel, blackened	20 mm	40 mm	~ 21 N	yes	8 mm
Podatki se nalagajo...
EH 22120.0381	Steel, blackened	16 mm	35 mm	~ 12 N	yes	10 mm
Podatki se nalagajo...
EH 22120.0382	Steel, blackened	20 mm	40 mm	~ 21 N	yes	10 mm
Podatki se nalagajo...
EH 22120.0384	Steel, blackened	20 mm	40 mm	~ 21 N	yes	12 mm
Podatki se nalagajo...
EH 22120.0386	Steel, blackened	16 mm	35 mm	~ 12 N	yes	6 mm
Podatki se nalagajo...
EH 22120.0388	Steel, blackened	16 mm	35 mm	~ 12 N	yes	8 mm
Podatki se nalagajo...
EH 22120.0389	Steel, blackened	20 mm	40 mm	~ 21 N	yes	8 mm
Podatki se nalagajo...
EH 22120.0391	Steel, blackened	16 mm	35 mm	~ 12 N	yes	10 mm
Podatki se nalagajo...
EH 22120.0392	Steel, blackened	20 mm	40 mm	~ 21 N	yes	10 mm
Podatki se nalagajo...
EH 22120.0394	Steel, blackened	20 mm	40 mm	~ 21 N	yes	12 mm
Podatki se nalagajo...
EH 22120.0605	Stainless steel 1.4305	M10 x 1	21 mm	~ 6 N	yes		5 mm
Podatki se nalagajo...
EH 22120.0606	Stainless steel 1.4305	M12 x 1,5	25 mm	~ 5.5 N	yes		6 mm
Podatki se nalagajo...
EH 22120.0608	Stainless steel 1.4305	M16 x 1,5	31 mm	~ 11.5 N	yes		8 mm
Podatki se nalagajo...
EH 22120.0610	Stainless steel 1.4305	M20 x 1,5	31 mm	~ 28 N	yes		10 mm
