Erwin Halder KG

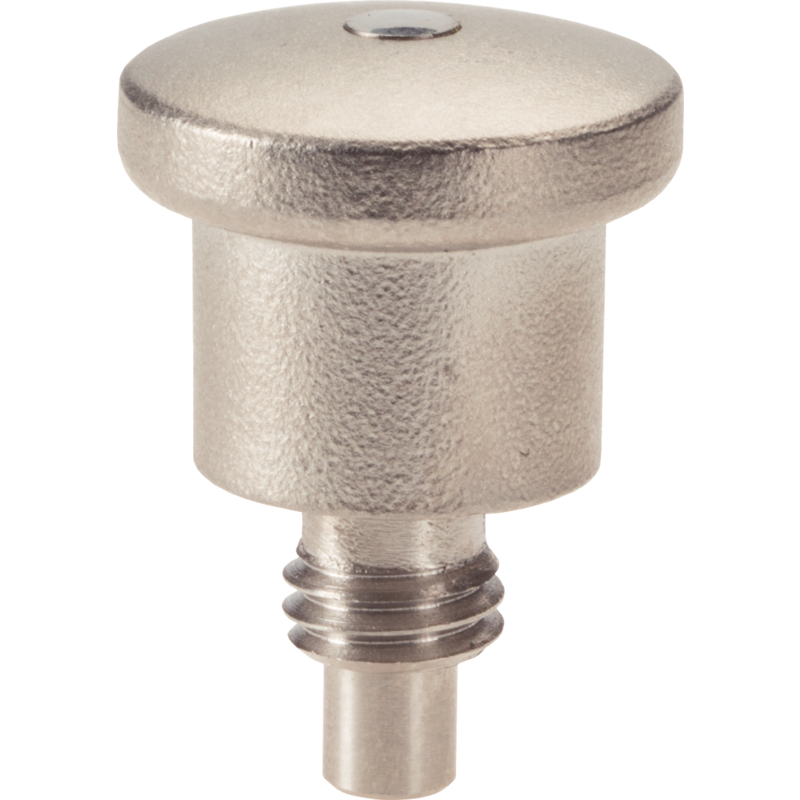

Index Plungers Mini Indexe

stainless steel

Koda:: EH 22110-3

Particularly suitable for screwing into thin walled pieces.

Performance in the smallest space requirements.

Material

Body

Stainless steel 1.4305

Locking pin

Stainless steel 1.4305

Knob

Stainless steel 1.4308

Assembly

Screw in the mini index. By lifting the knob, the hexagon will be released for assembly.

The screw length can be adapted by distance collars for index plungers (EH 22120.).

Operation

When using the self-locking type the knob is pulled-out, turned 30° and secured by a notched catch.

Notes

Knob not removable.

Za ogled cen se prijavite

Številka izdelka	Body	d₂	d₃	d₄	Conflict Minerals free	d₁ [h9]
EH 22110.1102	Stainless steel 1.4305	M8	21 mm	15 mm	yes	4 mm
Podatki se nalagajo...
EH 22110.1104	Stainless steel 1.4305	M8 x 1	21 mm	15 mm	yes	4 mm
Podatki se nalagajo...
EH 22110.1106	Stainless steel 1.4305	M10	25 mm	18 mm	yes	5 mm
Podatki se nalagajo...
EH 22110.1108	Stainless steel 1.4305	M10 x 1	25 mm	18 mm	yes	5 mm
Podatki se nalagajo...
EH 22110.1110	Stainless steel 1.4305	M10	25 mm	18 mm	yes	6 mm
Podatki se nalagajo...
EH 22110.1112	Stainless steel 1.4305	M10 x 1	25 mm	18 mm	yes	6 mm
Podatki se nalagajo...
EH 22110.1114	Stainless steel 1.4305	M12	28 mm	20 mm	yes	6 mm
Podatki se nalagajo...
EH 22110.1116	Stainless steel 1.4305	M12 x 1,5	28 mm	20 mm	yes	6 mm
Podatki se nalagajo...
EH 22110.1118	Stainless steel 1.4305	M12	28 mm	20 mm	yes	7 mm
Podatki se nalagajo...
EH 22110.1120	Stainless steel 1.4305	M12 x 1,5	28 mm	20 mm	yes	7 mm
Podatki se nalagajo...
EH 22110.1122	Stainless steel 1.4305	M16	33 mm	23 mm	yes	8 mm
Podatki se nalagajo...
EH 22110.1124	Stainless steel 1.4305	M16 x 1,5	33 mm	23 mm	yes	8 mm
Podatki se nalagajo...
EH 22110.1126	Stainless steel 1.4305	M16	33 mm	23 mm	yes	10 mm
Podatki se nalagajo...
EH 22110.1128	Stainless steel 1.4305	M16 x 1,5	33 mm	23 mm	yes	10 mm
Podatki se nalagajo...
EH 22110.1130	Stainless steel 1.4305	M8	21 mm	15 mm	yes	4 mm
Podatki se nalagajo...
EH 22110.1132	Stainless steel 1.4305	M8 x 1	21 mm	15 mm	yes	4 mm
Podatki se nalagajo...
EH 22110.1134	Stainless steel 1.4305	M10	25 mm	18 mm	yes	5 mm
Podatki se nalagajo...
EH 22110.1136	Stainless steel 1.4305	M10 x 1	25 mm	18 mm	yes	5 mm
Podatki se nalagajo...
EH 22110.1138	Stainless steel 1.4305	M10	25 mm	18 mm	yes	6 mm
Podatki se nalagajo...
EH 22110.1140	Stainless steel 1.4305	M10 x 1	25 mm	18 mm	yes	6 mm
Podatki se nalagajo...
