Erwin Halder KG

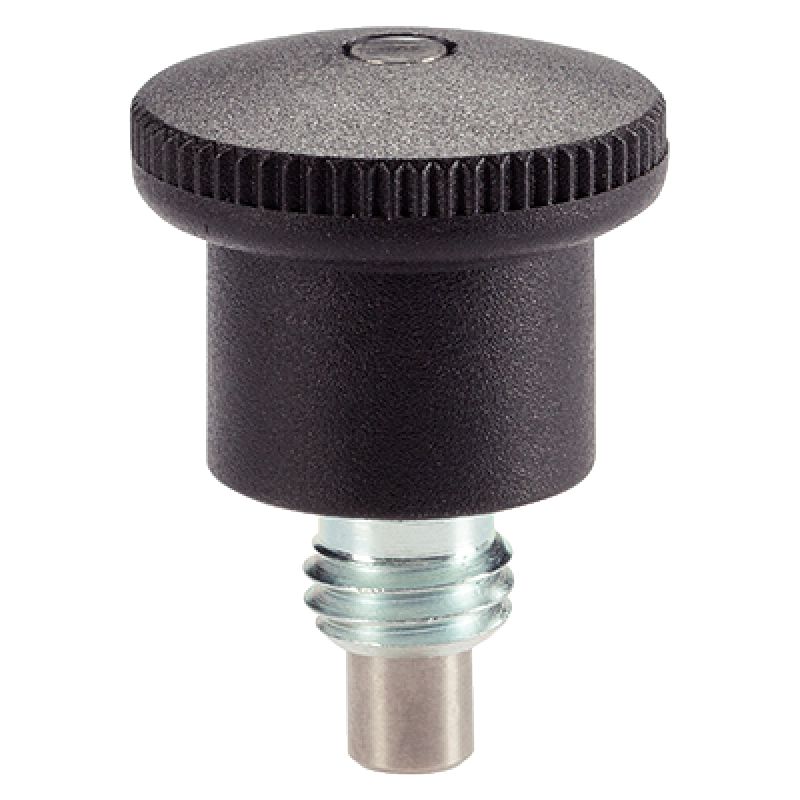

Index Plungers Mini Indexe

basic type

Koda:: EH 22110-2

Particularly suitable for screwing into thin walled pieces.

Performance in the smallest space requirements.

Material

Body

Steel, zinc-plated by galvanization

Locking pin

Stainless steel 1.4305

Knob

Thermoplastic PA 6, black, dull

Assembly

Screw in the mini index. By lifting the knob, the hexagon will be released for assembly.

The screw length can be adapted by distance collars for index plungers (EH 22120.).

Operation

When using the self-locking type the knob is pulled-out, turned 30° and secured by a notched catch.

Notes

Knob not removable.

Za ogled cen se prijavite

Številka izdelka	Body	d₂	d₃	d₄	Conflict Minerals free	d₁ [h9]
EH 22110.0602	Steel, zinc-plated by galvanization	M8	21 mm	15 mm	yes	4 mm
Podatki se nalagajo...
EH 22110.0604	Steel, zinc-plated by galvanization	M8 x 1	21 mm	15 mm	yes	4 mm
Podatki se nalagajo...
EH 22110.0606	Steel, zinc-plated by galvanization	M10	25 mm	18 mm	yes	5 mm
Podatki se nalagajo...
EH 22110.0608	Steel, zinc-plated by galvanization	M10 x 1	25 mm	18 mm	yes	5 mm
Podatki se nalagajo...
EH 22110.0610	Steel, zinc-plated by galvanization	M10	25 mm	18 mm	yes	6 mm
Podatki se nalagajo...
EH 22110.0612	Steel, zinc-plated by galvanization	M10 x 1	25 mm	18 mm	yes	6 mm
Podatki se nalagajo...
EH 22110.0614	Steel, zinc-plated by galvanization	M12	28 mm	20 mm	yes	6 mm
Podatki se nalagajo...
EH 22110.0616	Steel, zinc-plated by galvanization	M12 x 1,5	28 mm	20 mm	yes	6 mm
Podatki se nalagajo...
EH 22110.0618	Steel, zinc-plated by galvanization	M12	28 mm	20 mm	yes	7 mm
Podatki se nalagajo...
EH 22110.0620	Steel, zinc-plated by galvanization	M12 x 1,5	28 mm	20 mm	yes	7 mm
Podatki se nalagajo...
EH 22110.0622	Steel, zinc-plated by galvanization	M16	33 mm	23 mm	yes	8 mm
Podatki se nalagajo...
EH 22110.0624	Steel, zinc-plated by galvanization	M16 x 1,5	33 mm	23 mm	yes	8 mm
Podatki se nalagajo...
EH 22110.0626	Steel, zinc-plated by galvanization	M16	33 mm	23 mm	yes	10 mm
Podatki se nalagajo...
EH 22110.0628	Steel, zinc-plated by galvanization	M16 x 1,5	33 mm	23 mm	yes	10 mm
Podatki se nalagajo...
EH 22110.0630	Steel, zinc-plated by galvanization	M8	21 mm	15 mm	yes	4 mm
Podatki se nalagajo...
EH 22110.0632	Steel, zinc-plated by galvanization	M8 x 1	21 mm	15 mm	yes	4 mm
Podatki se nalagajo...
EH 22110.0634	Steel, zinc-plated by galvanization	M10	25 mm	18 mm	yes	5 mm
Podatki se nalagajo...
EH 22110.0636	Steel, zinc-plated by galvanization	M10 x 1	25 mm	18 mm	yes	5 mm
Podatki se nalagajo...
EH 22110.0638	Steel, zinc-plated by galvanization	M10	25 mm	18 mm	yes	6 mm
Podatki se nalagajo...
EH 22110.0640	Steel, zinc-plated by galvanization	M10 x 1	25 mm	18 mm	yes	6 mm
Podatki se nalagajo...
