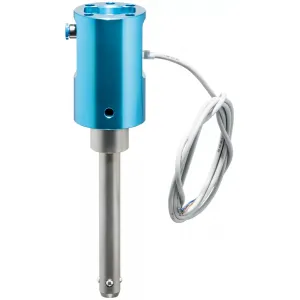

Quick, easy to use, and robust lifting element with pneumatic actuation. The integrated safety feature prevents release in the event of pressure loss. A form-fitting connection keeps the element securely latched when the load is picked up, providing for maximum safety.

This lifting pin is used for lifting loads in the automation and handling technology sector. Equipped with an interface as per ISO 9409-1 (Industrial robots – Mechanical interfaces), the component can be integrated into robotic systems. The pneumatic release can be monitored by means of a position indicator. Boasting a low weight thanks to its aluminium housing, the component is capable of delivering maximum loading capacity - especially during robot applications.

The advantages at a glance:

• Suitable for semi-automatic and fully automatic applications
• integrated safety feature - no release in the event of pressure loss
• Latching during load pick-up thanks to form-fitting connection
• Option to monitor the pneumatic release
• low weight - delivers maximum loading capacity for robot applications
• Connection to ISO 9409-1 interfaces (Industrial robots - Mechanical interfaces)
