Erwin Halder KG

Locating Bushing

for lifting pins

Koda: EH 22350-3

Izberi izvedbo | Prenesi dokument

Erwin Halder KG

Locating Bushing

for lifting pins

Koda:: EH 22350-3

Prenesi dokument

Locating bushings are used for quick and safe locating of lifting pins EH 22350 / EH 22351.

Corrosion and abrasion resistant.

Material
- Stainless steel 1.4542, precipitation-hardened

Assembly
Safe tolerances and consistent function.
Easily incorporated into different materials
Can be mounted in blind holes.
For thin-walled parts, lock nuts are used for assembly.

Za ogled cen se prijavite

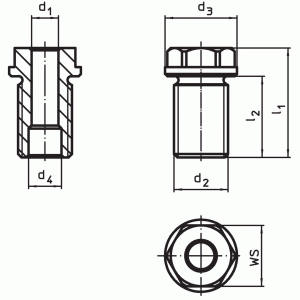

Številka izdelka	d₂	d₁ [h11]	Za nazivno dolžino
EH 22350.0900	M16 x 1,5	8 mm	10 mm
Podatki se nalagajo...
EH 22350.0902	M16 x 1,5	8 mm	15 mm
Podatki se nalagajo...
EH 22350.0904	M16	8 mm	25 mm
Podatki se nalagajo...
EH 22350.0906	M16	8 mm	35 mm
Podatki se nalagajo...
EH 22350.0910	M20 x 1,5	10 mm	15 mm
Podatki se nalagajo...
EH 22350.0912	M20 x 1,5	10 mm	25 mm
Podatki se nalagajo...
EH 22350.0914	M20	10 mm	35 mm
Podatki se nalagajo...
EH 22350.0916	M20	10 mm	50 mm
Podatki se nalagajo...
EH 22350.0920	M24 x 1,5	12 mm	15 mm
Podatki se nalagajo...
EH 22350.0922	M24 x 1,5	12 mm	25 mm
Podatki se nalagajo...
EH 22350.0924	M24	12 mm	35 mm
Podatki se nalagajo...
EH 22350.0926	M24	12 mm	50 mm
Podatki se nalagajo...
EH 22350.0930	M30 x 2	16 mm	25 mm
Podatki se nalagajo...
EH 22350.0934	M30	16 mm	50 mm
Podatki se nalagajo...
EH 22350.0936	M30	16 mm	75 mm
Podatki se nalagajo...
EH 22350.0954	M36 x 2	20 mm	50 mm
Podatki se nalagajo...
EH 22350.0956	M36 x 2	20 mm	75 mm
Podatki se nalagajo...

Locating bushings are used for quick and safe locating of lifting pins EH 22350 / EH 22351.

Corrosion and abrasion resistant.

Material
- Stainless steel 1.4542, precipitation-hardened

Assembly
Safe tolerances and consistent function.
Easily incorporated into different materials
Can be mounted in blind holes.
For thin-walled parts, lock nuts are used for assembly.

Kataloški list EH 22350.
