Erwin Halder KG

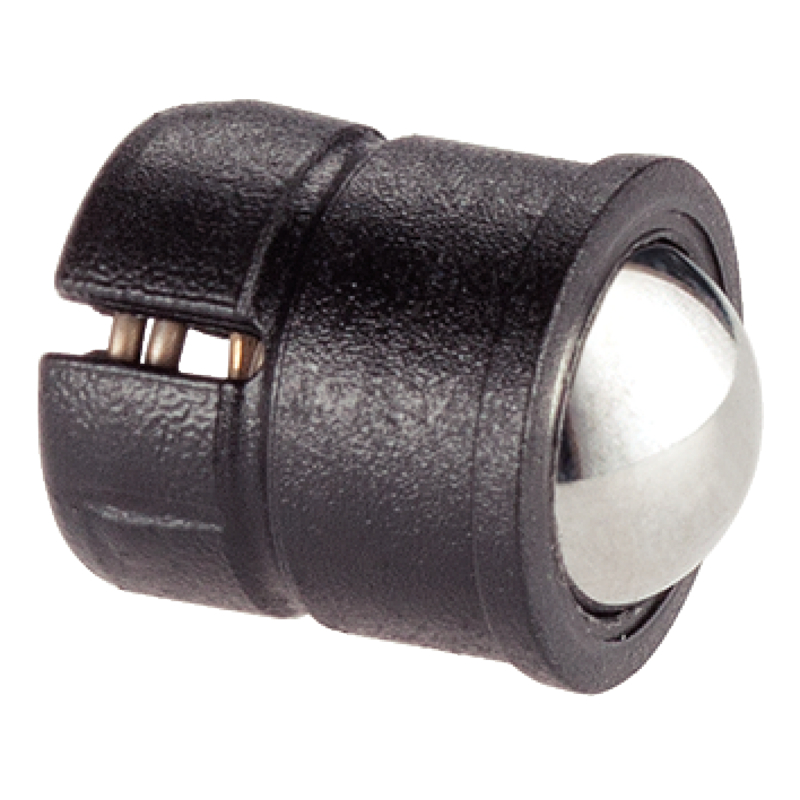

Spring Plunger

smooth, with collar and ball, self-clamping

Koda: EH 22080.

Izberi izvedbo | Prenesi dokument

Erwin Halder KG

Spring Plunger

smooth, with collar and ball, self-clamping

Koda:: EH 22080.

Prenesi dokument

Spring-loaded plungers can be used for locking as well as for pressing and releasing.

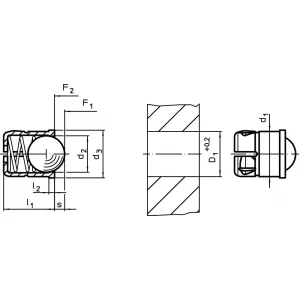

The spring-loaded pressure pieces compensate for tolerances of up to 0.2 mm in the receiving bore through self-clamping. This allows for cost savings in machining the receiving bore.

Za ogled cen se prijavite

Številka izdelka	Body	d₁ [+0.1]	d₂	d₃	Ball	Conflict Minerals free
EH 22080.0704	Thermoplastic POM, black	4 mm	3 mm	4.6 mm	Stainless steel, hardened	yes
Podatki se nalagajo...
EH 22080.0705	Thermoplastic POM, black	5 mm	4 mm	5.6 mm	Stainless steel, hardened	yes
Podatki se nalagajo...
EH 22080.0706	Thermoplastic POM, black	6 mm	5 mm	6.5 mm	Stainless steel, hardened	yes
Podatki se nalagajo...
EH 22080.0708	Thermoplastic POM, black	8 mm	6.5 mm	8.5 mm	Stainless steel, hardened	yes
Podatki se nalagajo...
EH 22080.0710	Thermoplastic POM, black	10 mm	8 mm	11 mm	Stainless steel, hardened	yes
Podatki se nalagajo...
EH 22080.0804	Thermoplastic POM, black	4 mm	3 mm	4.6 mm	Thermoplastic POM, white	yes
Podatki se nalagajo...
EH 22080.0805	Thermoplastic POM, black	5 mm	4 mm	5.6 mm	Thermoplastic POM, white	yes
Podatki se nalagajo...
EH 22080.0806	Thermoplastic POM, black	6 mm	5 mm	6.5 mm	Thermoplastic POM, white	yes
Podatki se nalagajo...
EH 22080.0808	Thermoplastic POM, black	8 mm	6.5 mm	8.5 mm	Thermoplastic POM, white	yes
Podatki se nalagajo...
EH 22080.0810	Thermoplastic POM, black	10 mm	8 mm	11 mm	Thermoplastic POM, white	yes
Podatki se nalagajo...
