Erwin Halder KG

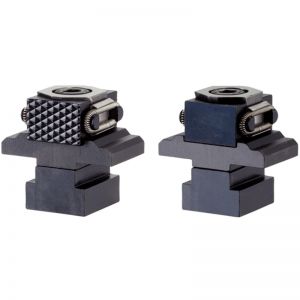

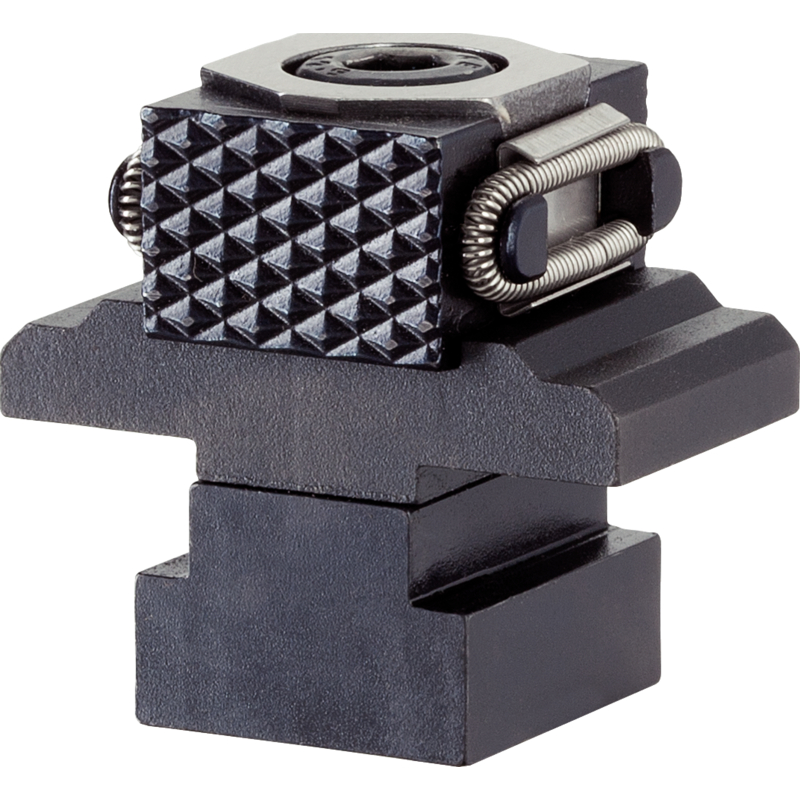

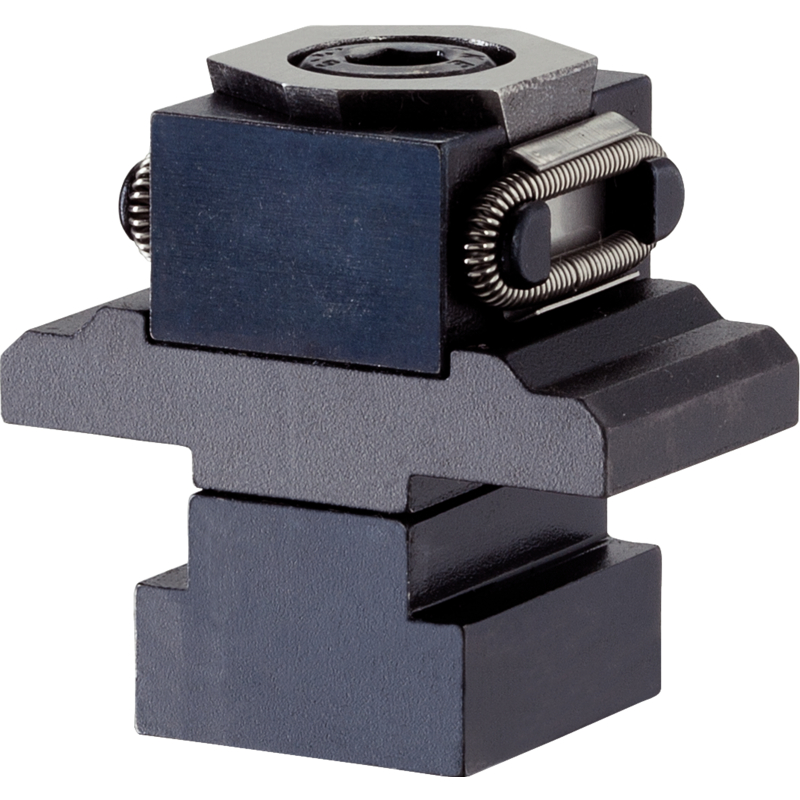

Taper Clamping Unit

plain / ribbed, M8

Koda: EH 23250. -1

Taper Clamping Unit

Inserting the socket head screw moves the two clamping chucks outwards and presses the workpieces against a stop. Stroke of taper clamping units with M8 = +/- 0.5 mm, M12 = +/- 1 mm.

Material

Body

  • Tool steel, hardened, bright

Screw

  • Heat-treated steel, tempered, quality 12.9

Spring

  • Spring steel wire

Clamping jaws

  • Tool steel, hardened, blackened and ground

Notes

Clamping jaws protected against rotating

Številka izdelka b1 b2 b3 Body Clamping jaws Conflict Minerals free
EH 23250.0501 29 mm 21 mm 44 mm Tool steel, hardened, bright Tool steel, hardened, blackened and ground yes
Loading Podatki se nalagajo...
EH 23250.0502 29 mm 21 mm 44 mm Tool steel, hardened, bright Tool steel, hardened, blackened and ground yes
Loading Podatki se nalagajo...
EH 23250.0503 29 mm 21 mm 44 mm Tool steel, hardened, bright Tool steel, hardened, blackened and ground yes
Loading Podatki se nalagajo...
