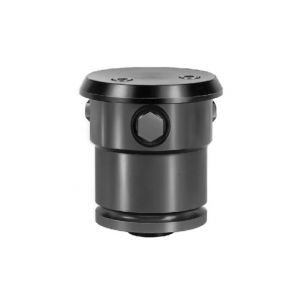

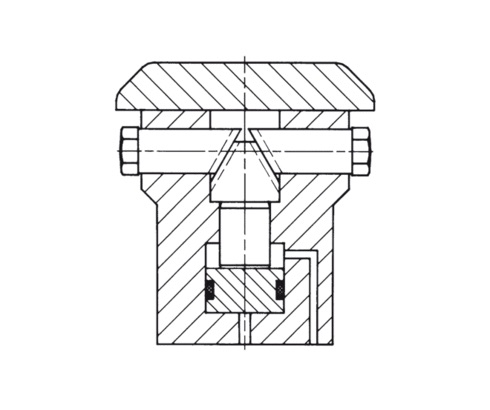

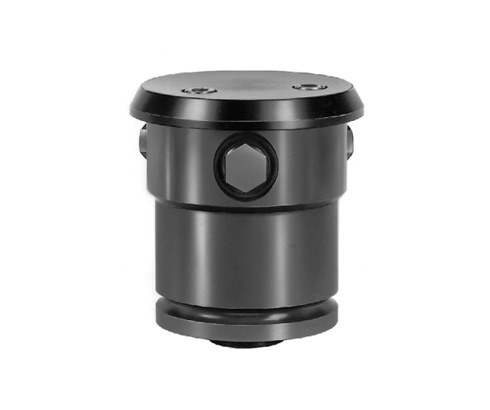

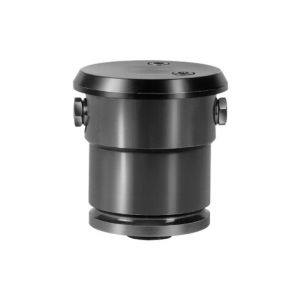

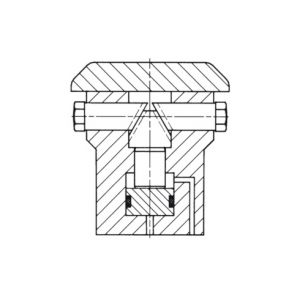

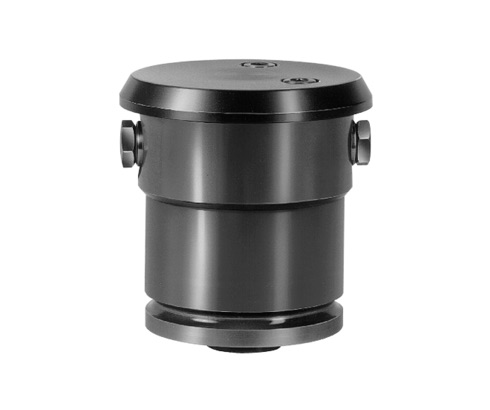

H4305 Concentric positioning and clamping elements

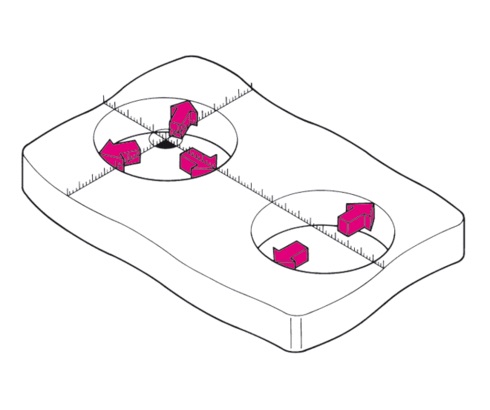

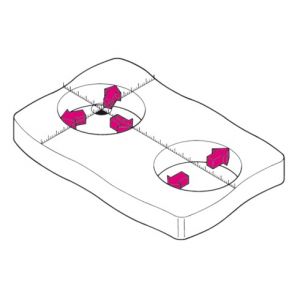

Workpieces with cast or machined bores, reliefs or break-outs, can be easily loaded to the fixture with the concentric positioning and clamping elements and concentrically clamped or positioned for machining. Overtolerance conditions can be avoided and clamping tasks can be completely solved by an ingenious combination of 2 and 3-point elements.

Various mounting and connecting possibilities extend the use for multiple applications. Different sizes and correspondingly adapted contact bolts allow exact adaptation to the required clamping diameter.
