Erwin Halder KG

Montažna podloga

protected against slipping

Koda EH 22590-2

Izberi izvedbo

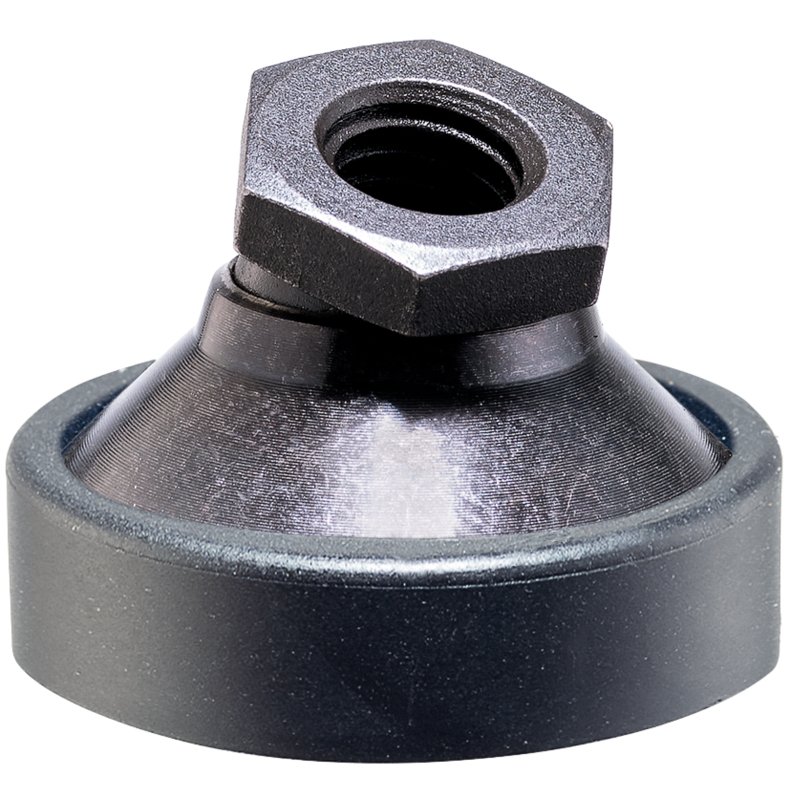

Erwin Halder KG

Montažna podloga

protected against slipping

Koda: EH 22590-2

Mounting pads can be used as foot or thrust pad. Not parallel bearing surfaces up to 15° degrees can be compensated.

The plastic cover on the mounting pad prevents slipping.

Material

Ball element

Free cutting steel, induction-hardened, blackened.

Rubber cab

Rubber, black

Pad

Heat-treated steel, tempered, blackened

Notes

For the versions d1 = M10 and M12 the lock nut conforms to DIN 934.

Za ogled cen se prijavite

Številka izdelka	d₁	d₂	Ball element	Conflict Minerals free	For finish picture	Function
EH 22590.1006	M6	22.5 mm	Free cutting steel, induction-hardened, blackened.	yes	1	place
Podatki se nalagajo...
EH 22590.1008	M8	28 mm	Free cutting steel, induction-hardened, blackened.	yes	1	place
Podatki se nalagajo...
EH 22590.1010	M10	36 mm	Free cutting steel, induction-hardened, blackened.	yes	1	tighten
Podatki se nalagajo...
EH 22590.1012	M12	45 mm	Free cutting steel, induction-hardened, blackened.	yes	1	tighten
Podatki se nalagajo...
EH 22590.1016	M16	56 mm	Free cutting steel, induction-hardened, blackened.	yes	1	secure
Podatki se nalagajo...
EH 22590.1020	M20	67 mm	Free cutting steel, induction-hardened, blackened.	yes	1	secure
Podatki se nalagajo...
EH 22590.1024	M24	69 mm	Free cutting steel, induction-hardened, blackened.	yes	1	secure
Podatki se nalagajo...
EH 22590.1106	M6	22.5 mm	Stainless steel 1.4305	yes	1	tighten
Podatki se nalagajo...
EH 22590.1108	M8	28 mm	Stainless steel 1.4305	yes	1	adjust
Podatki se nalagajo...
EH 22590.1110	M10	36 mm	Stainless steel 1.4305	yes	1	adjust
Podatki se nalagajo...
EH 22590.1112	M12	45 mm	Stainless steel 1.4305	yes	1	compensate
Podatki se nalagajo...
EH 22590.1116	M16	56 mm	Stainless steel 1.4305	yes	1	level
Podatki se nalagajo...
EH 22590.1120	M20	67 mm	Stainless steel 1.4305	yes	1	compensate
Podatki se nalagajo...
EH 22590.1124	M24	69 mm	Stainless steel 1.4305	yes	1	adjust
Podatki se nalagajo...
EH 22590.1206	M6	22.5 mm	Stainless steel 1.4305	yes	1	secure
Podatki se nalagajo...
EH 22590.1208	M8	28 mm	Stainless steel 1.4305	yes	1	place
Podatki se nalagajo...
EH 22590.1210	M10	36 mm	Stainless steel 1.4305	yes	1	place
Podatki se nalagajo...
EH 22590.1212	M12	45 mm	Stainless steel 1.4305	yes	1	tighten
Podatki se nalagajo...
EH 22590.1216	M16	56 mm	Stainless steel 1.4305	yes	1	tighten
Podatki se nalagajo...
EH 22590.1220	M20	67 mm	Stainless steel 1.4305	yes	1	tighten
Podatki se nalagajo...
