Erwin Halder KG

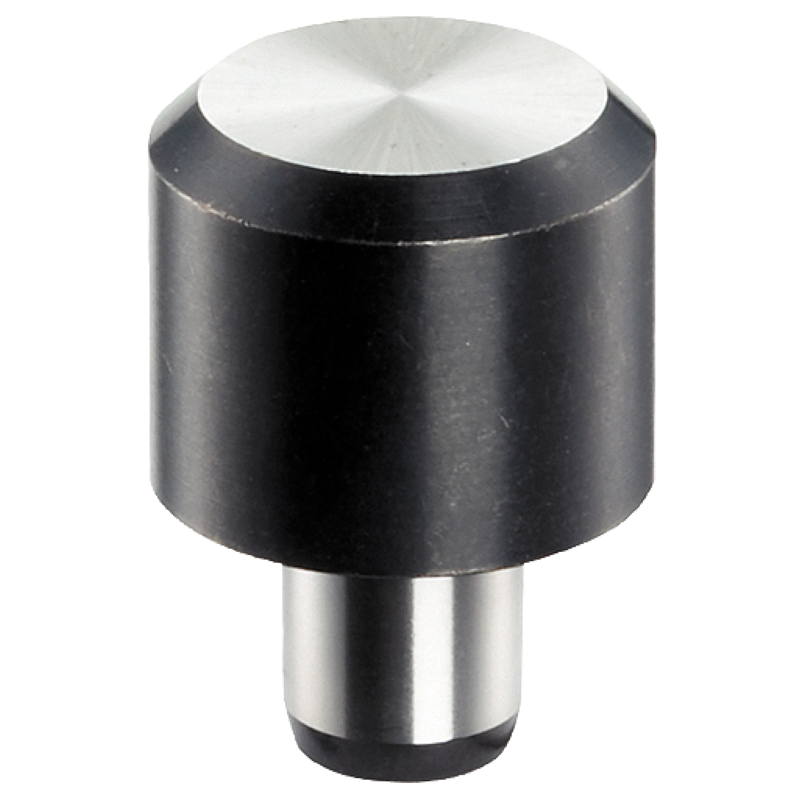

Naslonski zatič

partially DIN 6321 (old norm)

Koda EH 22630-2

Izberi izvedbo

Erwin Halder KG

Naslonski zatič

partially DIN 6321 (old norm)

Koda: EH 22630-2

To be used as feet and bearings.

Load bearing surface without distortion.

Material

Tool steel, hardened, ground

Za ogled cen se prijavite

Številka izdelka	d₁	D1 [H7]	Conflict Minerals free	d₂ [n6]	Dev. from DIN	Function
EH 22630.0001	6 mm	4 mm	yes	4 mm		place
Podatki se nalagajo...
EH 22630.0002	10 mm	6 mm	yes	6 mm		position
Podatki se nalagajo...
EH 22630.0003	16 mm	8 mm	yes	8 mm		place
Podatki se nalagajo...
EH 22630.0004	16 mm	8 mm	yes	8 mm		place
Podatki se nalagajo...
EH 22630.0005	25 mm	12 mm	yes	12 mm		position
Podatki se nalagajo...
EH 22630.0006	25 mm	12 mm	yes	12 mm		place
Podatki se nalagajo...
EH 22630.0007	40 mm	20 mm	yes	20 mm		place
Podatki se nalagajo...
EH 22630.0008	40 mm	20 mm	yes	20 mm		position
Podatki se nalagajo...
EH 22630.0110	6 mm	4 mm	yes	4 mm	DIN standards do not include these dimensions.	place
Podatki se nalagajo...
EH 22630.0112	6 mm	4 mm	yes	4 mm	DIN standards do not include these dimensions.	position
Podatki se nalagajo...
EH 22630.0116	8 mm	5 mm	yes	5 mm	DIN standards do not include these dimensions.	place
Podatki se nalagajo...
EH 22630.0118	8 mm	5 mm	yes	5 mm	DIN standards do not include these dimensions.	position
Podatki se nalagajo...
EH 22630.0120	10 mm	6 mm	yes	6 mm	DIN standards do not include these dimensions.	place
Podatki se nalagajo...
EH 22630.0124	12 mm	6 mm	yes	6 mm	DIN standards do not include these dimensions.	support
Podatki se nalagajo...
EH 22630.0126	12 mm	6 mm	yes	6 mm	DIN standards do not include these dimensions.	place
Podatki se nalagajo...
EH 22630.0130	20 mm	10 mm	yes	10 mm	DIN standards do not include these dimensions.	position
Podatki se nalagajo...
EH 22630.0132	20 mm	10 mm	yes	10 mm	DIN standards do not include these dimensions.	place
Podatki se nalagajo...
EH 22630.0135	25 mm	12 mm	yes	12 mm	DIN standards do not include these dimensions.	position
Podatki se nalagajo...
EH 22630.0137	30 mm	16 mm	yes	16 mm	DIN standards do not include these dimensions.	place
Podatki se nalagajo...
EH 22630.0140	30 mm	16 mm	yes	16 mm	DIN standards do not include these dimensions.	position
Podatki se nalagajo...
