Threaded lock pins are used for quick fastening, locking, adjusting, changing, clamping, connecting and securing. Quickly and easily unlockable for frequently repeated connections.
By pressing the button, the threaded segments unlock and the threaded lock pin can be inserted into or removed from a threaded hole. A time-consuming screwing in and out is unnecessary.

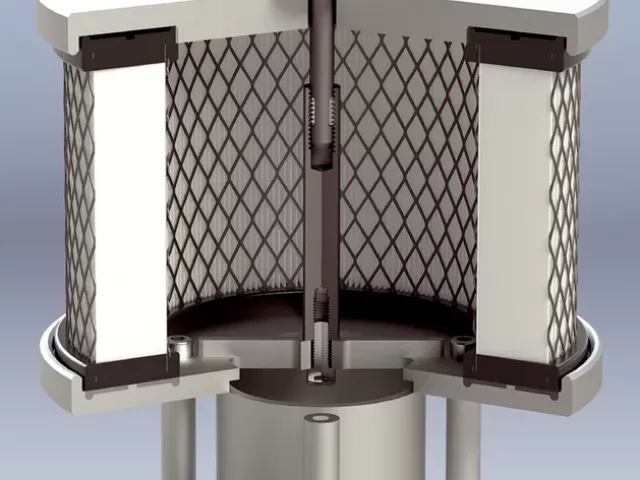

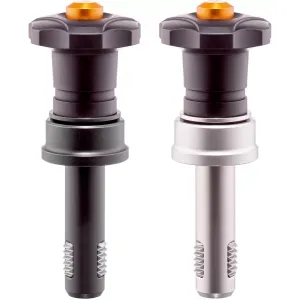

The thread lock pin is characterised by the following features and advantages:
- Corrosion-protected
- No time-consuming screwing in and unscrewing
- Self-locking due to spring force

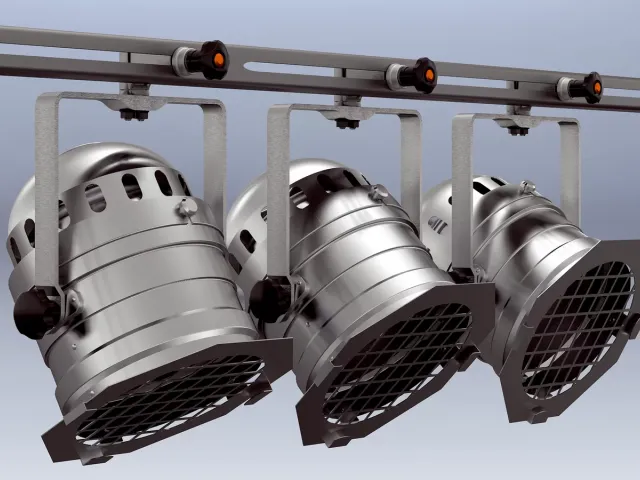

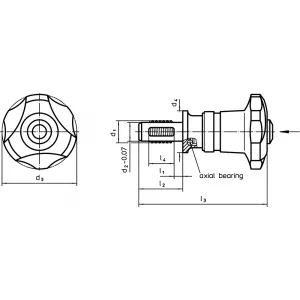

- With axial bearing
The advantages of the axial bearing:
- Double clamping force with the same grip size by reducing surface friction.
- Protection of the component due to fixed contact surface.
- Low setting behaviour due to higher pretensioning force in the bolt or thread.
- Less force required to release
Material
Pin part
- Heat-treated steel, tempered, manganese phosphated
- Stainless steel 1.4542, precipitation-hardened
-
Handle
- Thermoplastic PA 6, black, dull similar to RAL 9005
-
Press button
- Aluminium, orange, anodised
-
Threaded element
- Stainless steel 1.4542, precipitation-hardened
-
Axial bearing
- Steel, nitrided, blackened
- Stainless steel
-
Spring
- Stainless Steel
-
Notes
Special types on request.
Due to the thread geometry, the clamping force is higher with the smaller thread size
Assembly
Threaded lock pins can only be mounted into a thread that is true to gauge.
Mounting:
- Press in the button and hold it down.
- Insert the threaded lock pin.
- Release the button (The button must be back in its original position.).
- Tighten the threaded lock pin by hand as required.
- It must be ensured that the threaded segments are engaged in the mounting thread.
Dismantling:
- Unscrew the threaded lock pin approx. a quarter of a turn anticlockwise.
- Press in the button and hold it down.
- Remove the threaded lock pin.
- Release the button.
Operation
The threaded segments are unlocked by pressing the button.
