Quality:

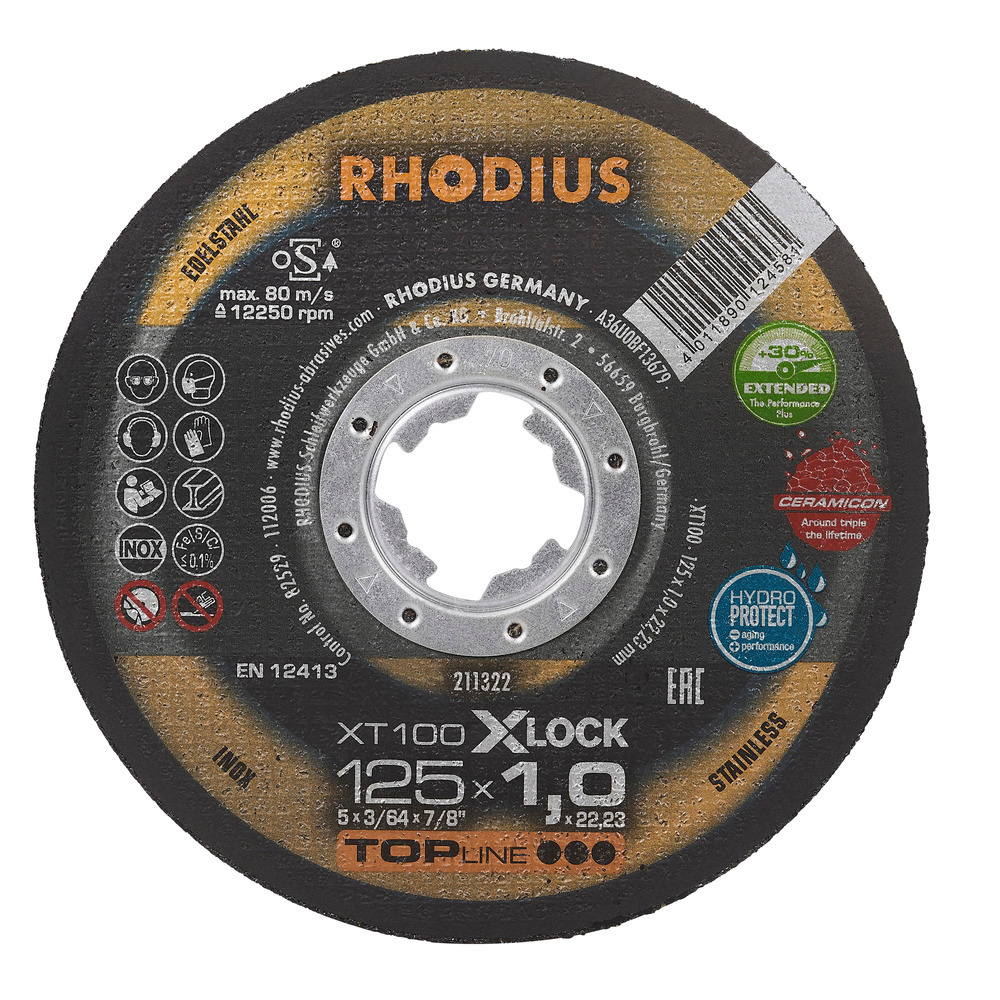

With the XT100 X-LOCK, users get the best RHODIUS tool in its category. RHODIUS TOPline products represent a maximum level of performance and quality.

Industries:
This makes it the ideal tool for the many applications and challenges in plant and container construction, boiler and tank construction, structural steel engineering, pipeline construction and installation work.

Machine suitability:

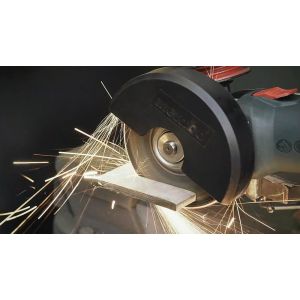

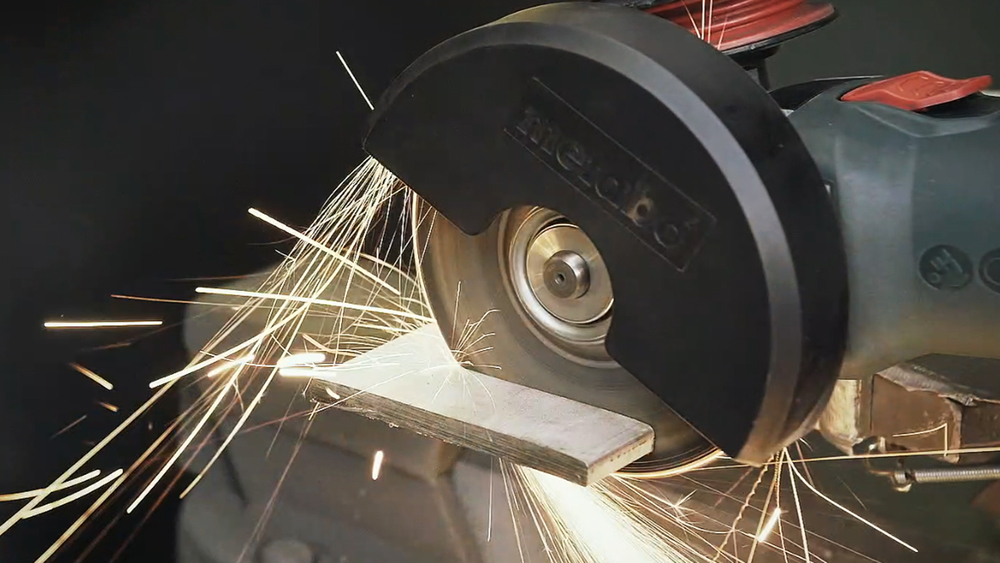

The XT100 X-LOCK cutting disc is suitable for freehand use on angle grinders.

Material suitability:
The XT100 X-LOCK has been designed especially for use on stainless steel (SST, Inox), e.g. 1.4031 (X5CrNi18-10 or 304), steel (carbon steel – also termed structural steel, St37, S235JR and 1.0037) and cast steels.

Structure and production:
The cutting disc includes premium sintered corundum and 2 full-coverage glass cloth layers. The minimum side load for the cutting disc as defined by EN 12413 and oSa is 40 N. The expiry date (three years) is embossed in the disc hole ring. Consistently high quality is ensured by sophisticated in-process controls applied during manufacturing. To ensure a maximum level of safety, every thousandth disc is tested destructively. This disc features a straight shape (shape 41). Cutting discs with a straight shape enable deeper insertion depths and therefore a greater number of cuts.

Applications:
The XT100 X-LOCK offers an impressively long lifetime (tool life) during use, even in solid material, combined with a very aggressive, especially light and fast cut. The disc features minimal sparking, low dust generation and vibration-free operation that offers exceptional stability. All of which makes work easier and is especially cost-effective. High-precision, high-speed processing of thin-walled material is easily achieved. This product offers an ideal price/performance ratio. This quality RHODIUS tool is an especially good choice for cutting structural steel, tool steel, spring steels, thin-walled metal sheets, rustproof and acid-proofed steels, high-alloy steel, high-strength sheet metal, cable ducts, supports, sections, panels and beams.

Dimensions:
The extra-thin X-LOCK cutting disc has a disc width of 1.0 mm, is available in the diameters of 115 mm and 125 mm, and is suitable for use on angle grinders from a wide range of makers. All RHODIUS discs for X-LOCK are also backwards compatible. Which means: they can also be used on a traditional angle grinder with a spindle for a 22.23 mm hole.

Notice:
The RHODIUS cutting discs for stainless steel are iron- and sulphur-free. To avoid rusting, you should never change from normal steel back to stainless steel with the same disc.
