Quality:
To help make work even more cost-effective (cost per cut), RHODIUS cutting discs from the premium PRO and TOP lines are recommended.

Industries:
This makes it the perfect tool for the many applications and challenges facing building fitters, as well as in plant and container construction, boiler and tank construction, structural steel engineering, pipeline construction and installation work.

Machine suitability:

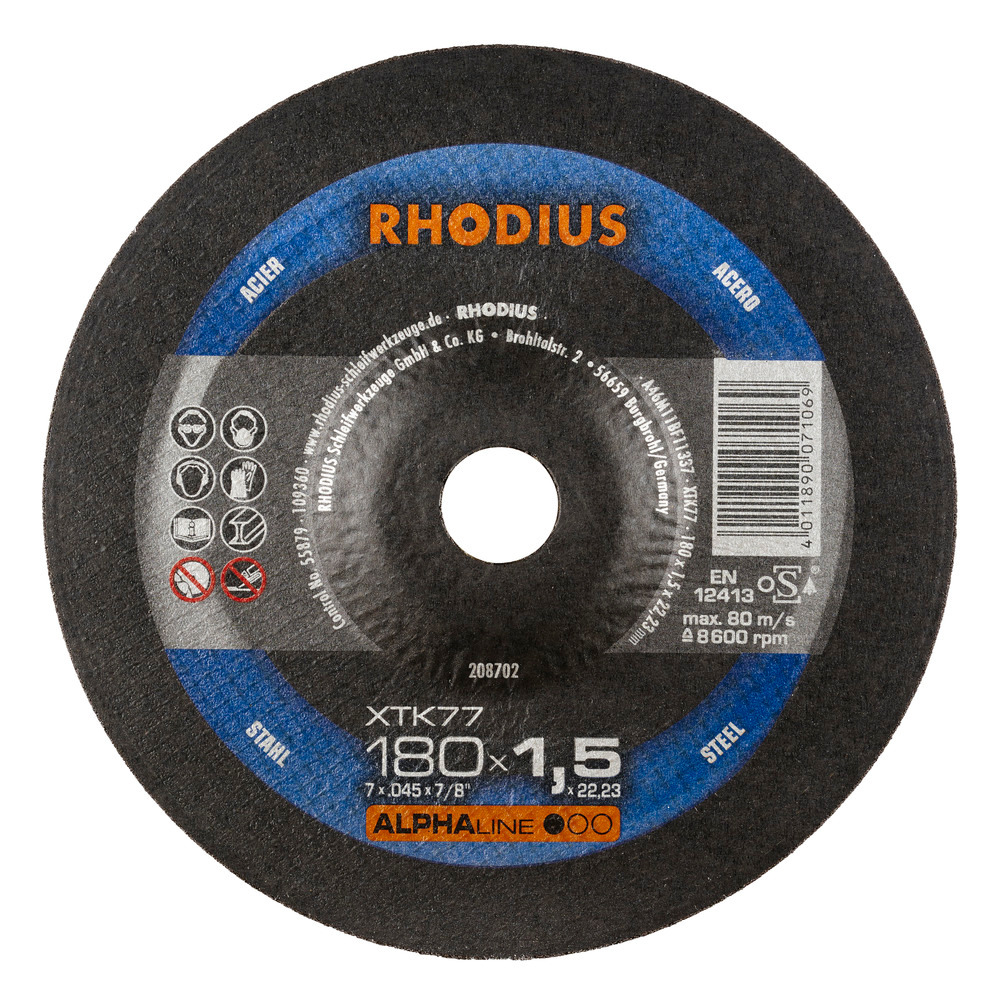

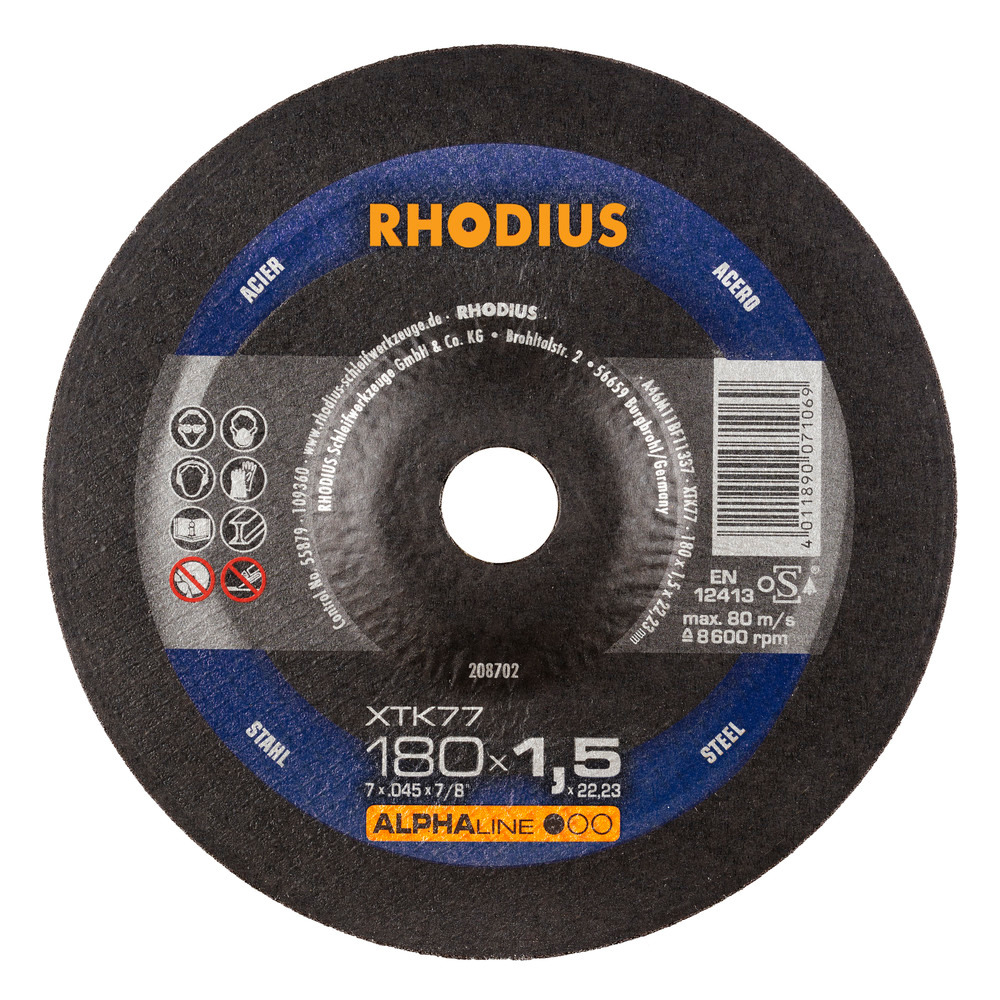

The XTK77 cutting disc is suitable for freehand use with all angle grinders in any performance class (including low-power and battery-powered machines).

Material suitability:
The XTK77 has been designed especially for use on steel (carbon steel – also termed structural steel, St37, S235JR and 1.0037) and cast steels.

Structure and production:
The cutting disc contains high-quality corundum (aluminium oxide) and 2 full-coverage glass cloth layers. The minimum side load for the cutting disc as defined by EN 12413 and oSa is 40 N (50 N from a diameter of 150 mm). The expiry date (three years) is embossed in the disc hole ring. Consistently high quality is ensured by sophisticated in-process controls applied during manufacturing. To ensure a maximum level of safety, every thousandth disc is tested destructively. This disc features a straight shape (shape 42). The cutting disc is especially stable during cutting.

Applications:
The XTK77 offers an impressive level of performance based on a very aggressive cut. High-precision processing of thin-walled material is easily achieved. Key characteristics of this disc are its minimal sparking and its extremely low level of vibration. All of which makes work easier and is especially cost-effective. The disc achieves low angular deviation thanks to its depressed shape. This quality RHODIUS tool is an especially good choice for cutting structural steel, supports, sections, panels and beams.

Dimensions:
With a disc width of 1.5 mm to 1.9 mm, the extra-thin cutting disc is available in diameters from 180 mm to 230 mm.
