Rhodius

Plošča rezna diamantna LD60

Koda RD 303746

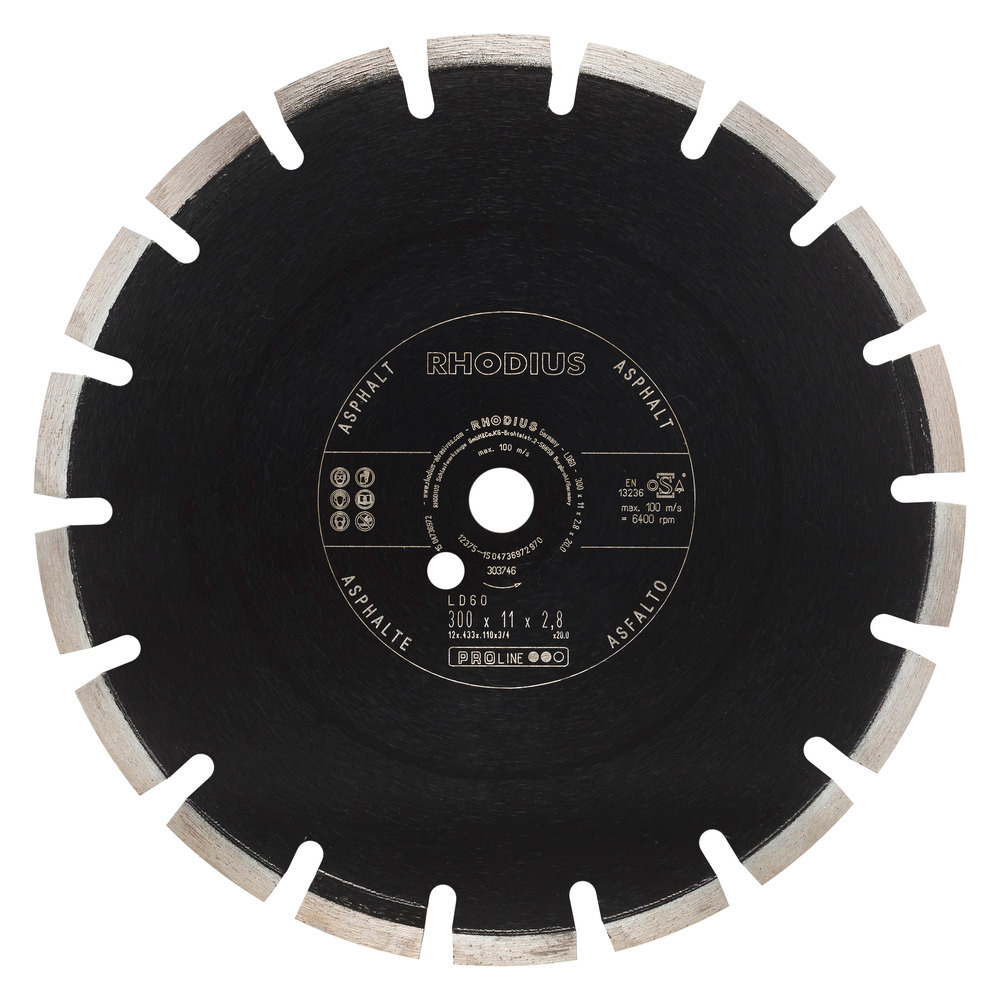

Plošča rezna diamantna LD60


The LD60 is equipped with 11 mm high diamond segments. The wear protection segments used here on the LD60 reduce under-cutting of the steel core and a particularly high standard of safety is achieved. The forged segments reduce the vibrations to a minimum. Laser-welded. Suitable for wet and dry cutting.


  • 11 mm segment height
  • Very safe through depth protection segments
  • Forged segments
  • Wet and dry cutting
  • Laser-welded
Številka izdelka Več info Maximum revolutions Premer Debelina Premer luknje Višina segmenta
RD 303746 6400 U/min 300 mm 2,8 mm 20 mm 11 mm
Loading Podatki se nalagajo...
RD 303494 6400 U/min 300 mm 2,8 mm 25,40* 11 mm
Loading Podatki se nalagajo...
RD 303747 5500 U/min 350 mm 3 mm 20 mm 11 mm
Loading Podatki se nalagajo...
RD 303496 5500 U/min 350 mm 3 mm 25,40* 11 mm
Loading Podatki se nalagajo...
RD 303748 4800 U/min 400 mm 3,2 mm 20 mm 11 mm
Loading Podatki se nalagajo...
RD 303497 4800 U/min 400 mm 3,2 mm 25,40* 11 mm
Loading Podatki se nalagajo...
RD 303498 2700 U/min 450 mm 3,6 mm 25,4 mm 11 mm
Loading Podatki se nalagajo...
RD 303499 2450 U/min 500 mm 3,6 mm 25,4 mm 11 mm
Loading Podatki se nalagajo...

Machine suitability:
The LD60 diamond cutting disc is designed for freehand use with petrol cut-off saws and floor saws. This product can be used to the full on machines from any performance class.

Material suitability:
The LD60 has been specifically developed for processing asphalt.

Structure and production:
The LD60 features a segmented rim. This enables very high cutting speeds to be achieved while also maximising tool life. The tool has been tested to EN 13236 and oSa, and can be used both in wet cutting and dry cutting applications. Use of high-quality industrial diamonds makes the LD60 a particularly powerful tool. The disc is also laser welded.

Dimensions:
This diamond cutting disc is available in diameters from 300 mm to 500 mm.


*Reducer ring to hole diameter of 20.00 mm included in each packing unit. Larger diameters are available on request.
