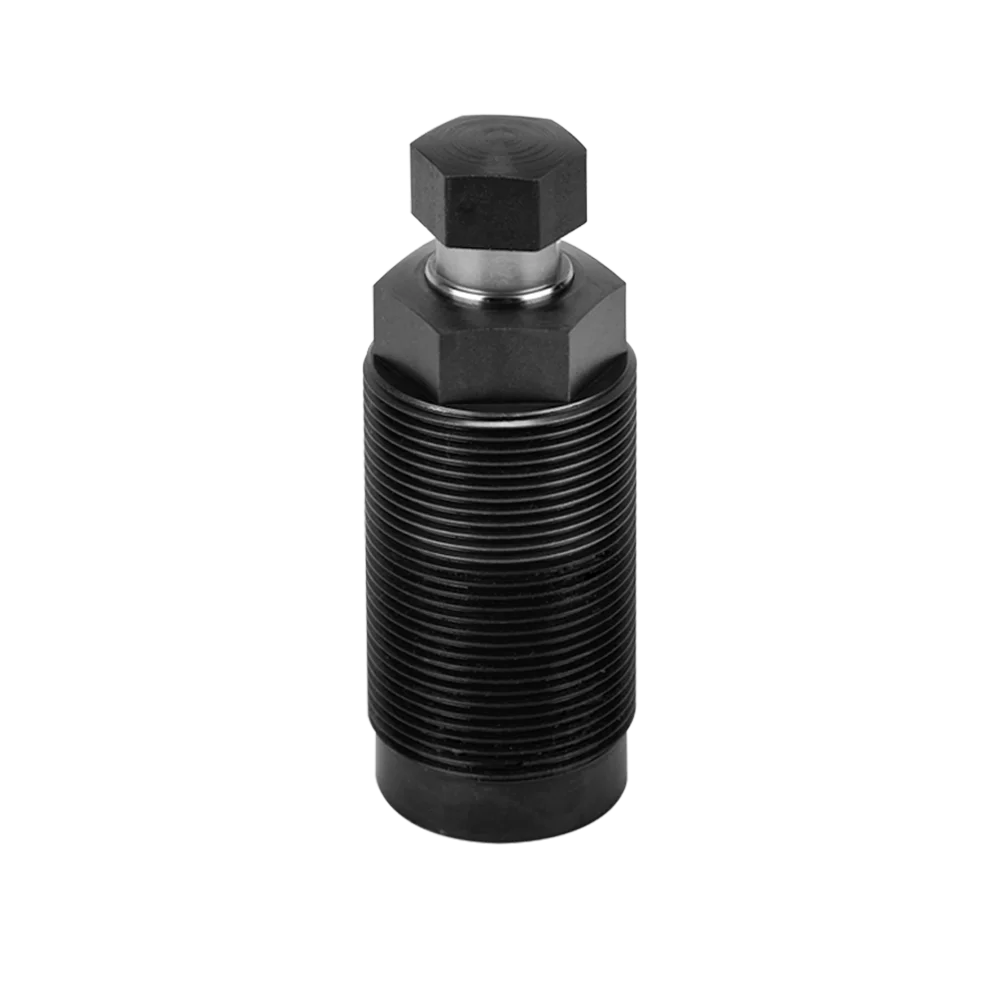

B 19401 Threaded-Body Work Support
Hydraulic work supports are used to provide a self-adjusting rest for the workpiece during the machining operations. They compensate the workpiece surface irregularities, also vibration and deflection under machining loads.
The threaded-body design allows for space-saving and direct installation into the fixture body. Oil supply is made through drilled channels.
In the body of the threaded-body work support a thin-walled locking bush is integrated, which locks cylindrically around the freely-movable support plunger when pressurising the element with hydraulic oil.
- Spring force
- Air pressure
- Oil pressure combined with spring force
The elements are protected against penetration of swarf by a metallic wiper edge and are sealed against liquids.
