Erwin Halder KG

Pozicionirni zatič

for thin-walled pieces

Koda: EH 22120-12

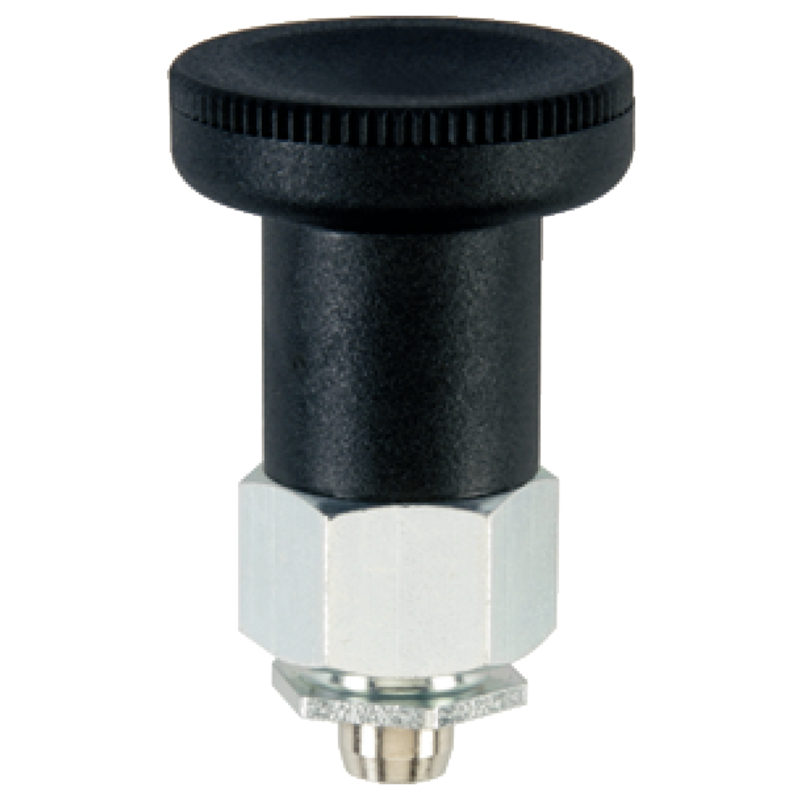

Index plungers with throughgoing bore for thin-walled pieces.

Material

Body

Steel, zinc-plated by galvanization

Locking pin

Stainless steel 1.4305, nickel-plated

Knob

Thermoplastic PA 6, black, dull

Assembly

By means of a fastening collet, the index plungers can be mounted into pieces having a wall thickness of 1-5 mm.

Operation

When using the self-locking type, the knob is pulled-out, turned 90° and secured by a notched catch. Depending on the clamping length, the bolt may overhang.

Notes

Knob not removable.

Za ogled cen se prijavite

Številka izdelka	Body	d₂	d₃	F₁	Conflict Minerals free	d₁ [-0.02, -0.04]
EH 22120.0266	Steel, zinc-plated by galvanization	25 mm	10 mm	~ 8.5 N	yes	6 mm
Podatki se nalagajo...
EH 22120.0267	Steel, zinc-plated by galvanization	25 mm	10 mm	~ 8.5 N	yes	6 mm
Podatki se nalagajo...
EH 22120.0268	Steel, zinc-plated by galvanization	31 mm	12 mm	~ 15.5 N	yes	8 mm
Podatki se nalagajo...
EH 22120.0269	Steel, zinc-plated by galvanization	31 mm	12 mm	~ 15.5 N	yes	8 mm
Podatki se nalagajo...
EH 22120.0286	Steel, zinc-plated by galvanization	25 mm	10 mm	~ 8.5 N	yes	6 mm
Podatki se nalagajo...
EH 22120.0287	Steel, zinc-plated by galvanization	25 mm	10 mm	~ 8.5 N	yes	6 mm
Podatki se nalagajo...
EH 22120.0288	Steel, zinc-plated by galvanization	31 mm	12 mm	~ 15.5 N	yes	8 mm
Podatki se nalagajo...
EH 22120.0289	Steel, zinc-plated by galvanization	31 mm	12 mm	~ 15.5 N	yes	8 mm
