Quality:
The ESB CX provides users with the best RHODIUS tool in its category. RHODIUS TOPline products represent a maximum level of performance and quality.

Dimensions:

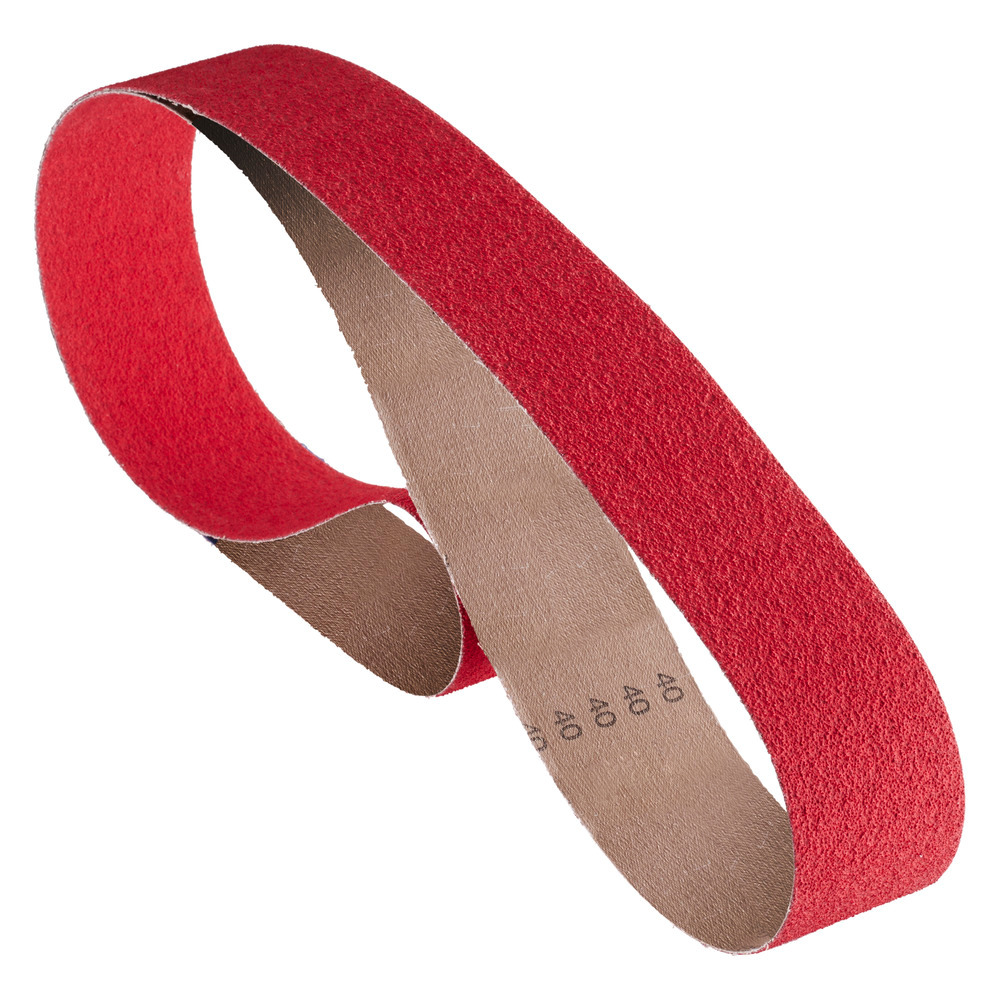

The ESB CX abrasive belt for stationary belt grinders is available in many variants, and in widths from 75 mm to 150 mm as well as in a length of 2000 mm. To ensure an optimum working result and surface finish at all times, the user can select from several grit levels ranging from 40 to 80.

Machine suitability:
The RHODIUS ESB CX abrasive belt is a continuous-feed belt designed for use on a stationary belt grinder.

Material suitability:
The product has been designed especially for processing stainless steel (SST, Inox), e.g. 1.4031 (X5CrNi18-10 or 304), steel (carbon steel – also termed structural steel, St37, S235JR or 1.0037) and cast steel. Users will achieve very good results on any of the materials listed here.

Structure and production:
The backing type used here is a heavy, waterproof X-weight polyester cloth. The belt is coated with a self-sharpening and especially aggressive ceramic grain. The grain features an exceptionally closed coating. The synthetic resin bond with active grinding additives (top size) keeps grinding work cool.

Applications:
The high-quality long belts from RHODIUS are especially well-suited to edge grinding. These products are the tool of choice for processing tasks involving rustproof or acid-proofed steels, high-strength or high-alloy sheet metal, tool steels or tempered steels.

Dimensions:
The ESB CX abrasive belt for stationary belt grinders is available in many variants, and in widths from 75 mm to 150 mm as well as in a length of 2000 mm. To ensure an optimum working result and surface finish at all times, the user can select from several grit levels ranging from 40 to 80.
