Product advantages

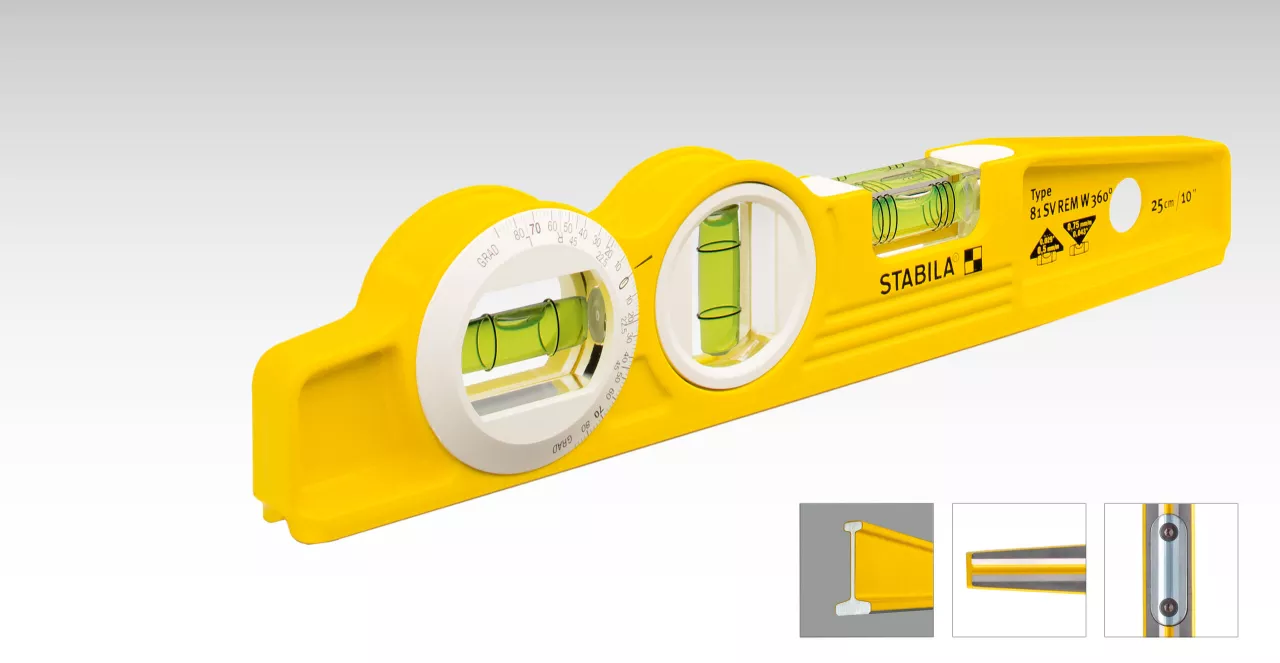

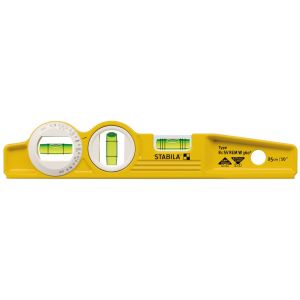

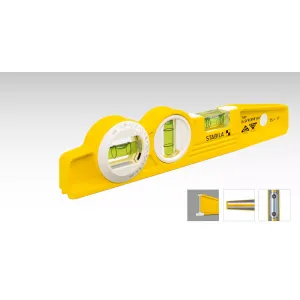

• Compact, tough, cast aluminium profile spirit level with six-ring horizontal vial for 1% and 2% slope measurement and additional rotatable angle vial.
• Slender, trapezoidal profile shape.
• Extra-strong rare-earth magnet system for adhesion to metal objects – leaves the hands free when aligning and adjusting pillars and supports.
• Precision-milled V-groove measuring surface for optimum hold on pipes.
• Rotatable 360° angle vial for positioning and directly checking any angles, such as those on pipelines.
• With belt pouch – always to hand.
• Easy cleaning.
• STABILA installation technology ensures long-term accuracy – measuring accuracy in normal position is ± 0.5 mm/m and ± 0.75 mm/m in reverse position.
• Equipment: 1 six-ring horizontal vial, 1 vertical vial, 1 rotatable angle vial (tolerance of angle measurement is ± 0.3°), 1 milled V-groove measuring surface, rare-earth magnet system (up to 5 times stronger than standard ferrite magnets), belt pouch.

Application examples

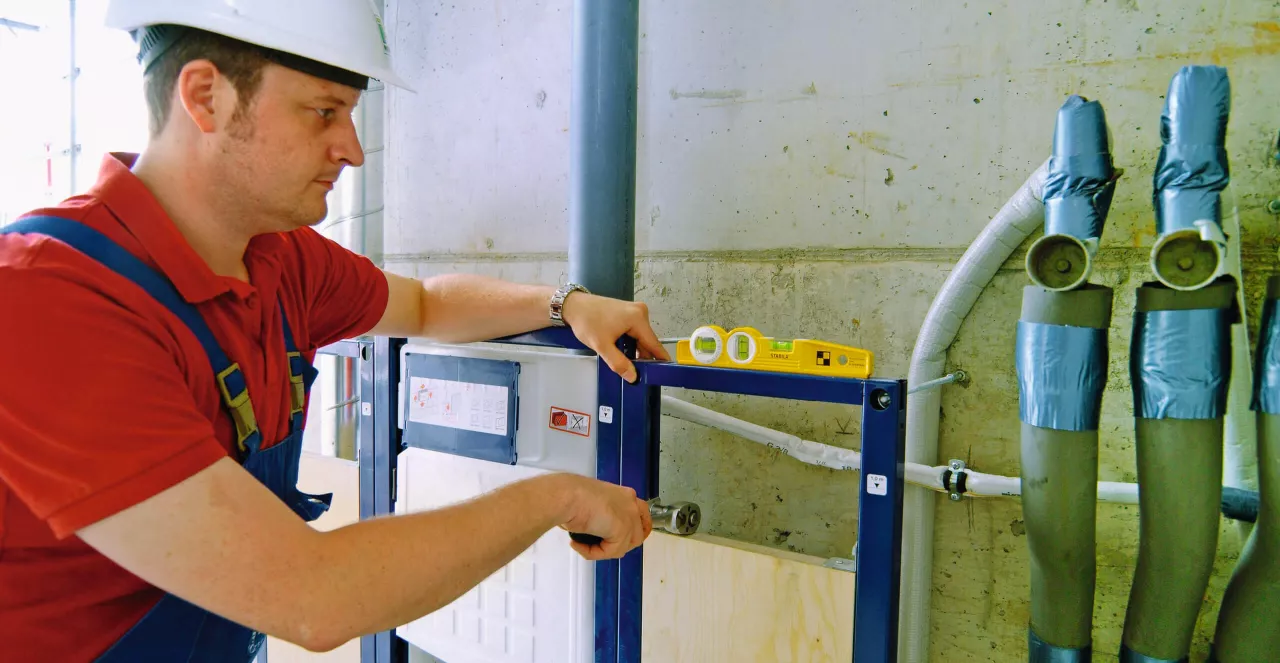

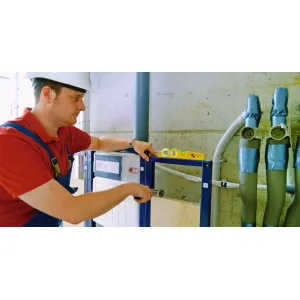

• The extra-strong adhesion of the rare-earth magnets is needed for metal construction and scaffolding in particular, as well as for fitting and welding.
