Erwin Halder KG

Vpenjalo

with soft face, similar to DIN 6314

Koda: EH 23190-1

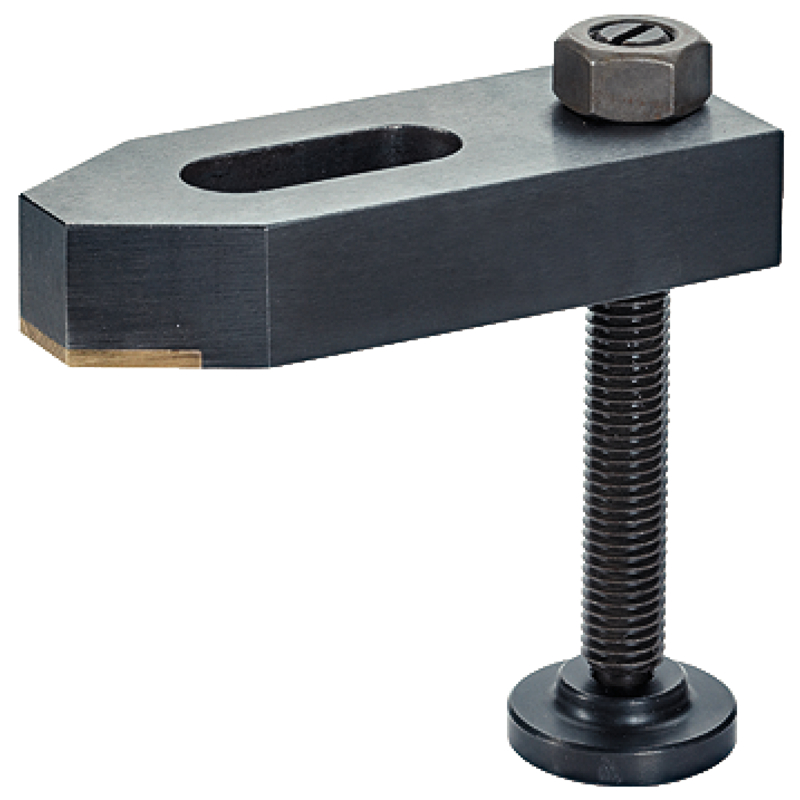

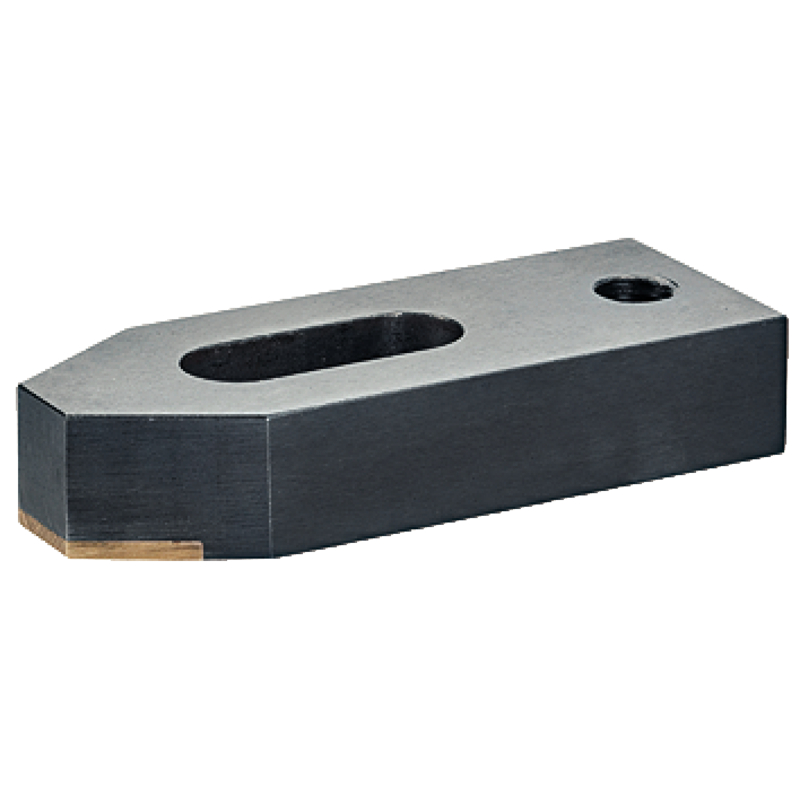

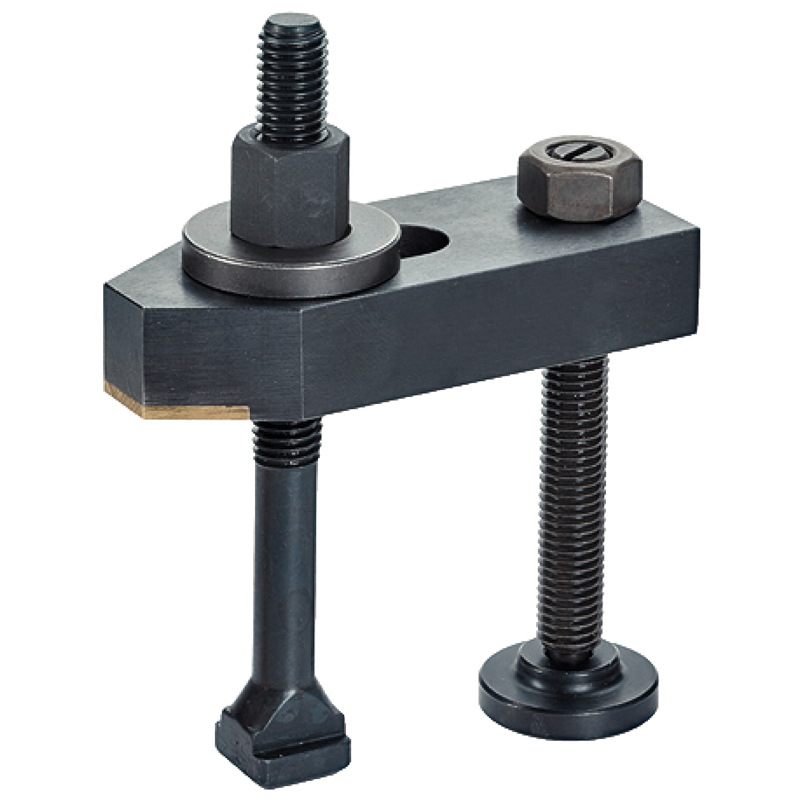

The brass plate protects the workpiece from damage. The combination of nut DIN 6330 B (EH 23070.)/conical seat DIN 6319 G (EH 23050.) on the clamping bolt and thrust pad DIN 6311 (EH 22560. removable) on the adjusting screw compensates for the lack of parallelity. The clamp can be used either way (soft or hard clamping surface).

Material

Soft face

Brass, brazed

Clamp

Heat-treated steel, blackened

Za ogled cen se prijavite

Številka izdelka	A	a₁	a₂	b₁	b₂	b₃	Clamp	Conflict Minerals free
EH 23190.0010		12 mm		9 mm	25 mm	10 mm	Heat-treated steel, blackened	yes
Podatki se nalagajo...
EH 23190.0011		12 mm		9 mm	25 mm	10 mm	Heat-treated steel, blackened	yes
Podatki se nalagajo...
EH 23190.0012		12 mm		9 mm	25 mm	10 mm	Heat-treated steel, blackened	yes
Podatki se nalagajo...
EH 23190.0015	8 mm	12 mm	7.6 mm	9 mm	25 mm	10 mm
Podatki se nalagajo...
EH 23190.0016	8 mm	12 mm	7.6 mm	9 mm	25 mm	10 mm
Podatki se nalagajo...
EH 23190.0020		15 mm		11 mm	30 mm	12 mm	Heat-treated steel, blackened	yes
Podatki se nalagajo...
EH 23190.0021		15 mm		11 mm	30 mm	12 mm	Heat-treated steel, blackened	yes
Podatki se nalagajo...
EH 23190.0022		15 mm		11 mm	30 mm	12 mm	Heat-treated steel, blackened	yes
Podatki se nalagajo...
EH 23190.0025	10 mm	15 mm	9.6 mm	11 mm	30 mm	12 mm
Podatki se nalagajo...
EH 23190.0026	10 mm	15 mm	9.6 mm	11 mm	30 mm	12 mm
Podatki se nalagajo...
EH 23190.0030		20 mm		14 mm	40 mm	14 mm	Heat-treated steel, blackened	yes
Podatki se nalagajo...
EH 23190.0031		20 mm		14 mm	40 mm	14 mm	Heat-treated steel, blackened	yes
Podatki se nalagajo...
EH 23190.0032		20 mm		14 mm	40 mm	14 mm	Heat-treated steel, blackened	yes
Podatki se nalagajo...
EH 23190.0035	12 mm	20 mm	11.6 mm	14 mm	40 mm	14 mm
Podatki se nalagajo...
EH 23190.0036	12 mm	20 mm	11.6 mm	14 mm	40 mm	14 mm
Podatki se nalagajo...
EH 23190.0037	14 mm	20 mm	13.6 mm	14 mm	40 mm	14 mm
Podatki se nalagajo...
EH 23190.0038	14 mm	20 mm	13.6 mm	14 mm	40 mm	14 mm
Podatki se nalagajo...
EH 23190.0040		25 mm		18 mm	50 mm	18 mm	Heat-treated steel, blackened	yes
Podatki se nalagajo...
EH 23190.0041		25 mm		18 mm	50 mm	18 mm	Heat-treated steel, blackened	yes
Podatki se nalagajo...
EH 23190.0042		25 mm		18 mm	50 mm	18 mm	Heat-treated steel, blackened	yes
Podatki se nalagajo...
