Roemheld

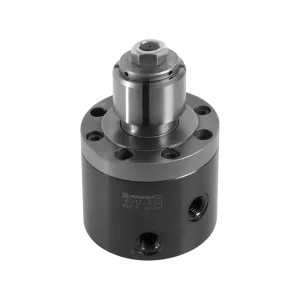

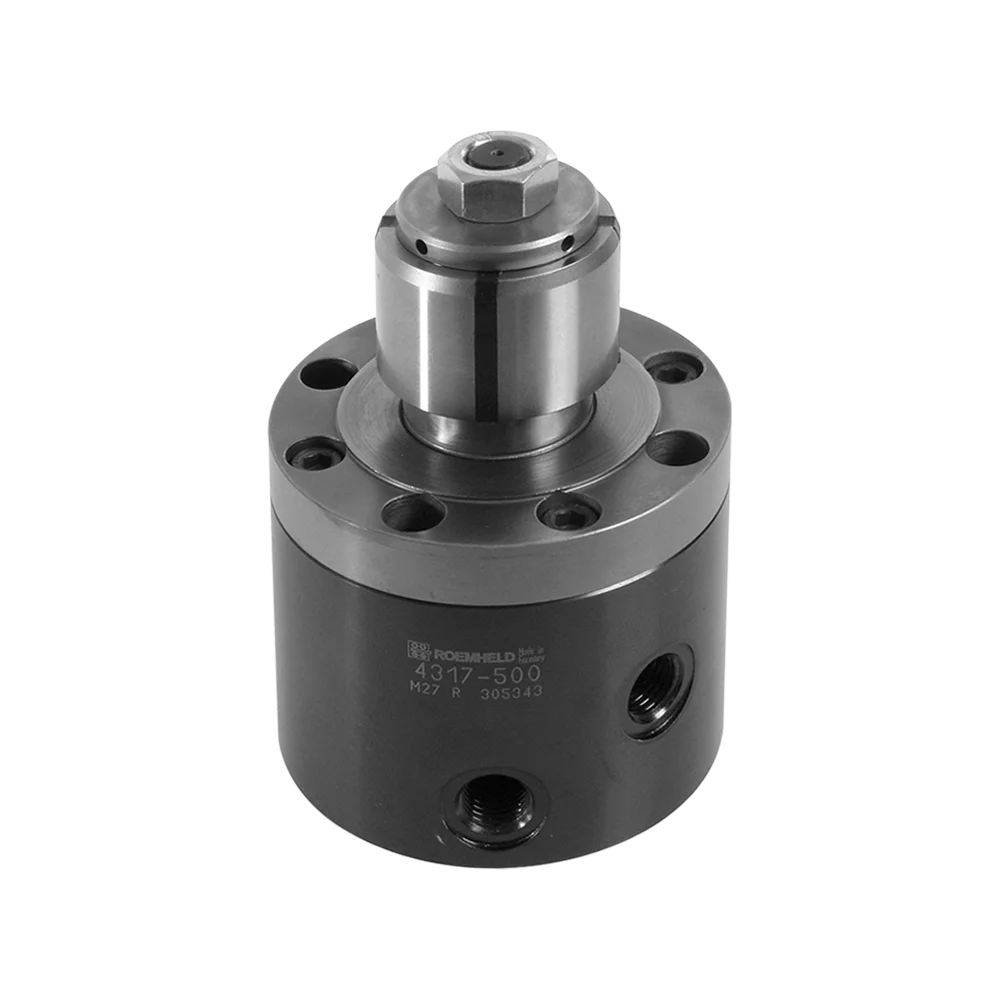

Izvrtinsko vpenjalo B1481

double-acting, pull-type with and without centring function, clamping for bore diameter 16 to 46 mm, max. operating pressure from 50 up to 350 bar

Koda: RO B1481
Izberi izvedbo | Prenesi dokument

Izvrtinsko vpenjalo B1481

  • double-acting, pull-type
  • with and without centring function
  • clamping for bore diameter 16 to 46 mm
  • max. operating pressure from 50 up to 350 bar

The bore clamp is particularly suitable for centring and clamping of workpieces with smoothly machined bores with diameters from 16 to 46 mm and a support surface square to the hole axis.

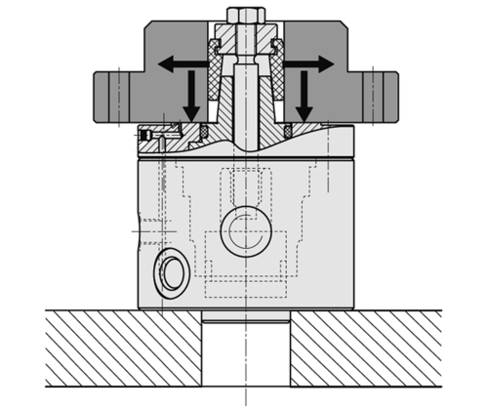

The bore clamp is a combination of a double-acting pull-type cylinder equipped with a segment clamping bushing, which is pulled by a tie rod over a fixed cone. Thereby the segment clamping bushing expands radially to the bore diameter of the workpiece to be clamped. By the simultaneous axial movement the workpiece is clamped onto the hardened support at the housing. The obtainable low-clamping force depends on the factor of friction within the bore and the operating pressure.

Za ogled cen se prijavite
Nazaj na seznam vseh
Številka izdelka File
Nobena verzija izdelka ne ustreza iskalnim kriterijem

B 1.481 Bore clamp

The bore clamp is particularly suitable for centring and clamping of workpieces with smoothly machined bores with diameters from 16 to 46 mm and a support surface square to the hole axis.

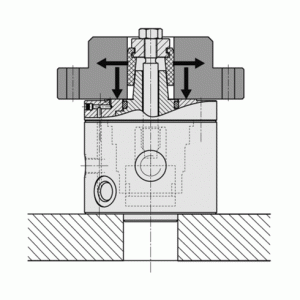

The bore clamp is a combination of a double-acting pull-type cylinder equipped with a segment clamping bushing, which is pulled by a tie rod over a fixed cone. Thereby the segment clamping bushing expands radially to the bore diameter of the workpiece to be clamped. By the simultaneous axial movement the workpiece is clamped onto the hardened support at the housing. The obtainable low-clamping force depends on the factor of friction within the bore and the operating pressure.

Kataloški list B.1481
Navodila za uporabo B.1481
