Erwin Halder KG

Pozicionirni zatič

Koda: EH 22120-8

Izberi izvedbo

Erwin Halder KG

Koda:: EH 22120-8

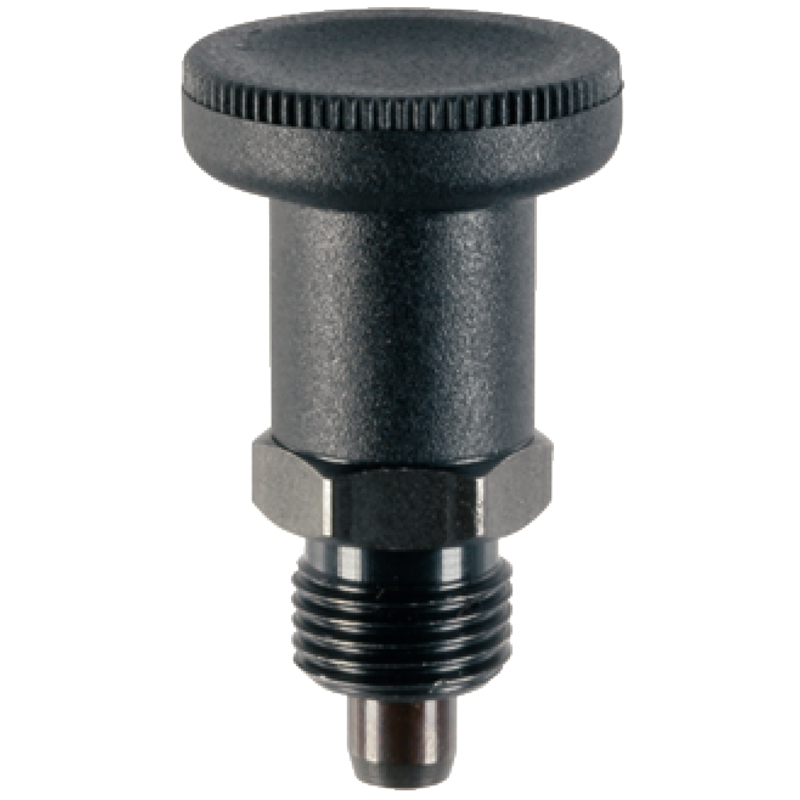

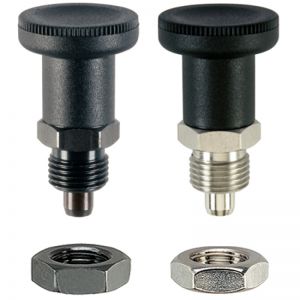

Index plungers are used for indexing bores.

The small dimensions are a feature of these index plungers.

Material

Body

Locking pin

Knob

Assembly

The screw length can be adapted by distance collars for index plungers (EH 22120.).

Operation

When using locking index plungers, the knob is pulled-out, turned 90° and secured by a notched catch (when locking pin should not overhang).

Notes

Knob not removable.

Lock nuts have to be purchased separately.

Za ogled cen se prijavite

Številka izdelka	Body	d₂	d₃	F₁	Conflict Minerals free	d₁ [-0.02, -0.04]
EH 22120.0226	Free cutting steel, blackened	M12 x 1,5	25 mm	~ 7 N	yes	6 mm
Podatki se nalagajo...
EH 22120.0228	Free cutting steel, blackened	M16 x 1,5	31 mm	~ 14 N	yes	8 mm
Podatki se nalagajo...
EH 22120.0236	Free cutting steel, blackened	M12 x 1,5	25 mm	~ 7 N	yes	6 mm
Podatki se nalagajo...
EH 22120.0238	Free cutting steel, blackened	M16 x 1,5	31 mm	~ 14 N	yes	8 mm
Podatki se nalagajo...
EH 22120.0246	Stainless steel 1.4305	M12 x 1,5	25 mm	~ 7 N	yes	6 mm
Podatki se nalagajo...
EH 22120.0248	Stainless steel 1.4305	M16 x 1,5	31 mm	~ 14 N	yes	8 mm
Podatki se nalagajo...
EH 22120.0256	Stainless steel 1.4305	M12 x 1,5	25 mm	~ 7 N	yes	6 mm
Podatki se nalagajo...
EH 22120.0258	Stainless steel 1.4305	M16 x 1,5	31 mm	~ 14 N	yes	8 mm
Podatki se nalagajo...
