Erwin Halder KG

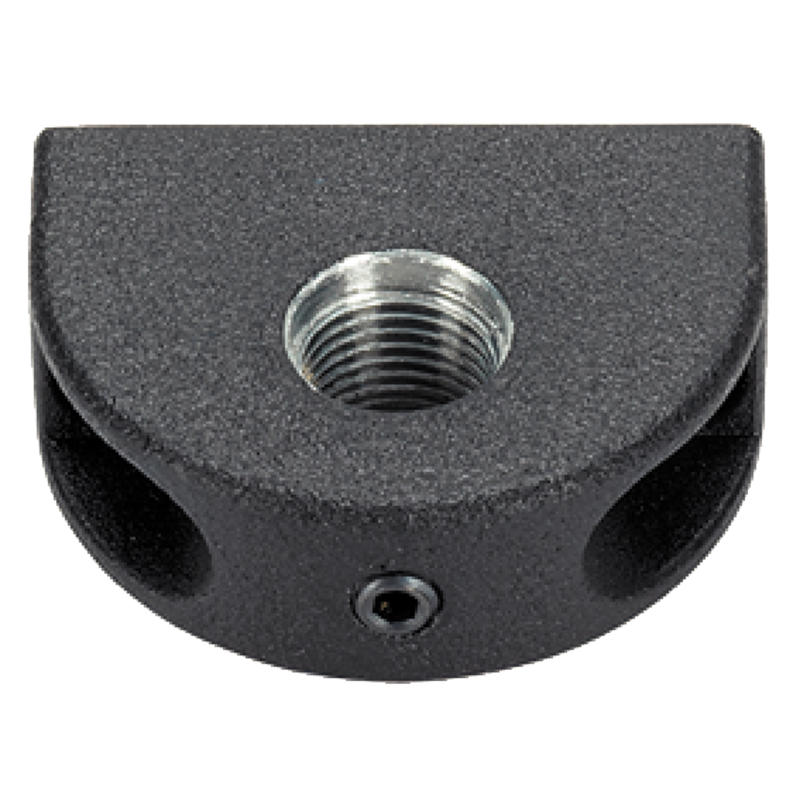

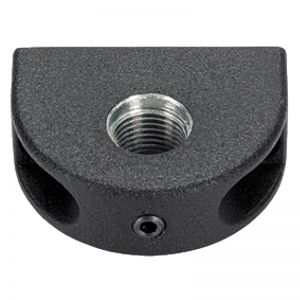

Vpenjalni blok

Koda: EH 22110-9

Izberi izvedbo

Erwin Halder KG

Koda:: EH 22110-9

Assembly support and extended applications for index bolts and index plungers. Also to be used as a seat for locating bushings EH 22110.

Material

Threaded pin

Body

Assembly

Index plunger must be assembled in hole d1 on countersink side.

Za ogled cen se prijavite

Številka izdelka	Body	d₁	d₂	d₃	d₄	Conflict Minerals free
EH 22110.0408	Zinc die-cast, plastic coated, black	M8 x 1	4.3 mm	M4	8.2 mm	yes
Podatki se nalagajo...
EH 22110.0410	Zinc die-cast, plastic coated, black	M10 x 1	4.3 mm	M4	10.2 mm	yes
Podatki se nalagajo...
EH 22110.0412	Zinc die-cast, plastic coated, black	M12 x 1,5	4.3 mm	M4	12.2 mm	yes
Podatki se nalagajo...
EH 22110.0416	Zinc die-cast, plastic coated, black	M16 x 1,5	5.3 mm	M5	16.2 mm	yes
Podatki se nalagajo...
EH 22110.0420	Zinc die-cast, plastic coated, black	M20 x 1,5	5.3 mm	M5	20.2 mm	yes
Podatki se nalagajo...
EH 22110.0508	Zinc die-cast, plastic coated, black	M8	4.3 mm	M4	8.2 mm	yes
Podatki se nalagajo...
EH 22110.0510	Zinc die-cast, plastic coated, black	M10	4.3 mm	M4	10.2 mm	yes
Podatki se nalagajo...
EH 22110.0512	Zinc die-cast, plastic coated, black	M12	4.3 mm	M4	12.2 mm	yes
Podatki se nalagajo...
EH 22110.0516	Zinc die-cast, plastic coated, black	M16	5.3 mm	M5	16.2 mm	yes
Podatki se nalagajo...
