Precizni pozicionirni zatič

with tapered pin

Koda: EH 22130-2

Izberi izvedbo

Erwin Halder KG

Precizni pozicionirni zatič

with tapered pin

Koda:: EH 22130-2

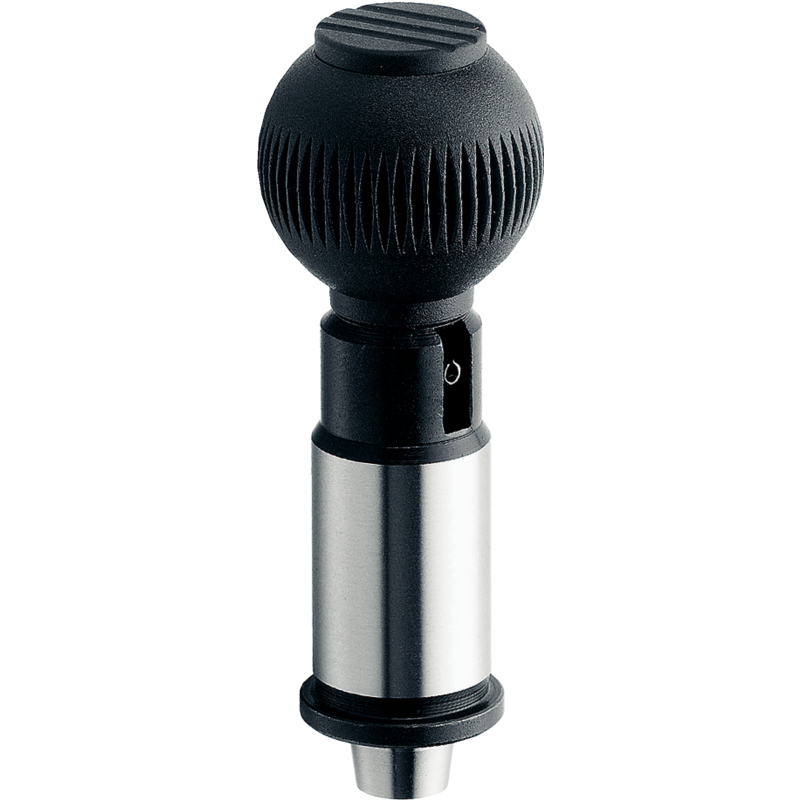

Precision index plungers together with bushings are a perfect combination for quick positioning and mounting.

The precise tolerance of both, the precision index plunger and the bushing, guarantees a high repeatability of these two elements.

Material

Case-hardened steel, case-hardened, blackened and ground

Bushing

Case-hardened steel, case-hardened, blackened and ground

Body

Case-hardened steel, case-hardened, blackened and ground

Ball knob

Thermoplastic, greyish black

Assembly

To achieve precise setting, ball grip and index plunger have to be glued after assembly.

Operation

When using locking index plungers the knob is pulled out and turned 90°.

Za ogled cen se prijavite

Številka izdelka	Body	d₁	d₂	Ball knob	Bushing	Conflict Minerals free
EH 22130.0110	Case-hardened steel, case-hardened, blackened and ground	10 mm	19 mm	Thermoplastic, greyish black	Case-hardened steel, case-hardened, blackened and ground	yes
Podatki se nalagajo...
EH 22130.0112	Case-hardened steel, case-hardened, blackened and ground	12 mm	23 mm	Thermoplastic, greyish black	Case-hardened steel, case-hardened, blackened and ground	yes
Podatki se nalagajo...
EH 22130.0116	Case-hardened steel, case-hardened, blackened and ground	16 mm	28 mm	Thermoplastic, greyish black	Case-hardened steel, case-hardened, blackened and ground	yes
Podatki se nalagajo...
EH 22130.0120	Case-hardened steel, case-hardened, blackened and ground	20 mm	33 mm	Thermoplastic, greyish black	Case-hardened steel, case-hardened, blackened and ground	yes
Podatki se nalagajo...
EH 22130.0125	Case-hardened steel, case-hardened, blackened and ground	25 mm	42 mm	Thermoplastic, greyish black	Case-hardened steel, case-hardened, blackened and ground	yes
Podatki se nalagajo...
EH 22130.0160	Case-hardened steel, case-hardened, blackened and ground	10 mm	19 mm	Thermoplastic, greyish black	Case-hardened steel, case-hardened, blackened and ground	yes
Podatki se nalagajo...
EH 22130.0162	Case-hardened steel, case-hardened, blackened and ground	12 mm	23 mm	Thermoplastic, greyish black	Case-hardened steel, case-hardened, blackened and ground	yes
Podatki se nalagajo...
EH 22130.0166	Case-hardened steel, case-hardened, blackened and ground	16 mm	28 mm	Thermoplastic, greyish black	Case-hardened steel, case-hardened, blackened and ground	yes
Podatki se nalagajo...
EH 22130.0170	Case-hardened steel, case-hardened, blackened and ground	20 mm	33 mm	Thermoplastic, greyish black	Case-hardened steel, case-hardened, blackened and ground	yes
Podatki se nalagajo...
EH 22130.0175	Case-hardened steel, case-hardened, blackened and ground	25 mm	42 mm	Thermoplastic, greyish black	Case-hardened steel, case-hardened, blackened and ground	yes
Podatki se nalagajo...
