Erwin Halder KG

Kompaktni pozicionirni zatiči

with hexagon collar and locking, with T-Handle

Koda:: EH 22110-7

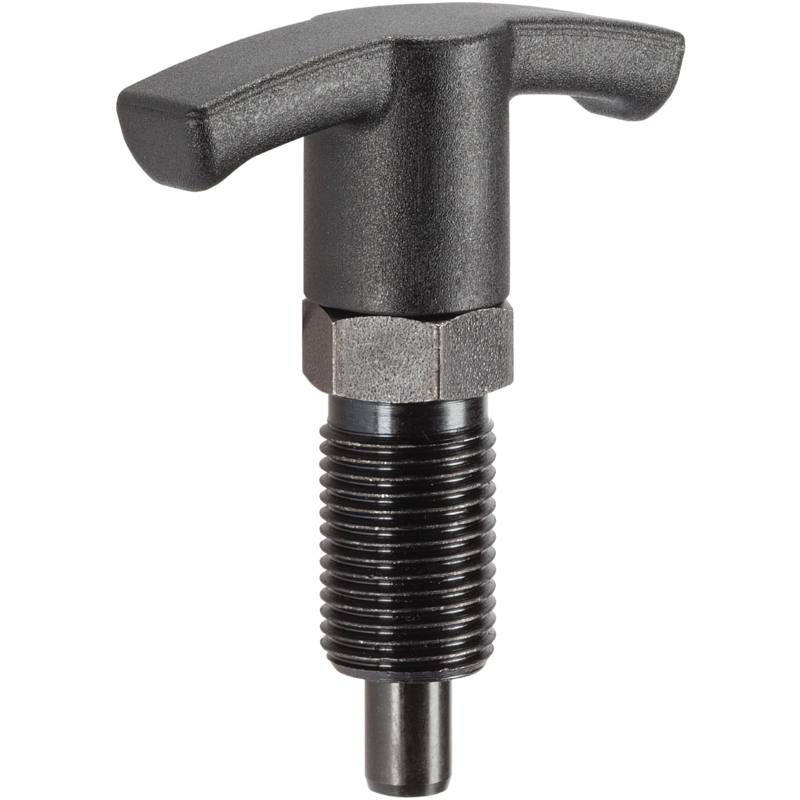

Index plungers are used for indexing bores.

Simple handling, e.g. when using safety gloves, with higher pull release.

Types with / without lock have the same building height.

Due to a thread recess the index plungers can be completely screwed in.

Material

Body

Steel, blackened

Locking pin

Steel, hardened

Knob

Thermoplastic PA 6, black, dull

Assembly

The screw length can be adapted by distance collars for index plungers (EH 22120.).

Operation

The T-handle is pulled out, turned 90° and secured by an internal notched catch (when locking pin should not overhang). The positions are defined distinctively by the T-handle.

Notes

Knob not removable.

Lock nuts have to be purchased separately.

Za ogled cen se prijavite

Številka izdelka	Body	d₁	d₂	F₁	F₂	Conflict Minerals free
EH 22110.0832	Steel, blackened	6 mm	M12 x 1,5	~ 6.5 N	~ 19 N	yes
Podatki se nalagajo...
EH 22110.0834	Steel, blackened	6 mm	M12 x 1,5	~ 6 N	~ 25 N	yes
Podatki se nalagajo...
EH 22110.0836	Steel, blackened	8 mm	M16 x 1,5	~ 8.5 N	~ 26 N	yes
Podatki se nalagajo...
EH 22110.0838	Steel, blackened	8 mm	M16 x 1,5	~ 8.5 N	~ 28 N	yes
Podatki se nalagajo...
EH 22110.0840	Steel, blackened	10 mm	M16 x 1,5	~ 9.5 N	~ 38 N	yes
Podatki se nalagajo...
EH 22110.0842	Steel, blackened	12 mm	M20 x 1,5	~ 11.5 N	~ 40 N	yes
Podatki se nalagajo...
EH 22110.0932	Stainless steel 1.4305	6 mm	M12 x 1,5	~ 6.5 N	~ 19 N	yes
Podatki se nalagajo...
EH 22110.0934	Stainless steel 1.4305	6 mm	M12 x 1,5	~ 6 N	~ 25 N	yes
Podatki se nalagajo...
EH 22110.0936	Stainless steel 1.4305	8 mm	M16 x 1,5	~ 8.5 N	~ 26 N	yes
Podatki se nalagajo...
EH 22110.0938	Stainless steel 1.4305	8 mm	M16 x 1,5	~ 8.5 N	~ 28 N	yes
Podatki se nalagajo...
EH 22110.0940	Stainless steel 1.4305	10 mm	M16 x 1,5	~ 9.5 N	~ 38 N	yes
Podatki se nalagajo...
EH 22110.0942	Stainless steel 1.4305	12 mm	M20 x 1,5	~ 11.5 N	~ 40 N	yes
