Erwin Halder KG

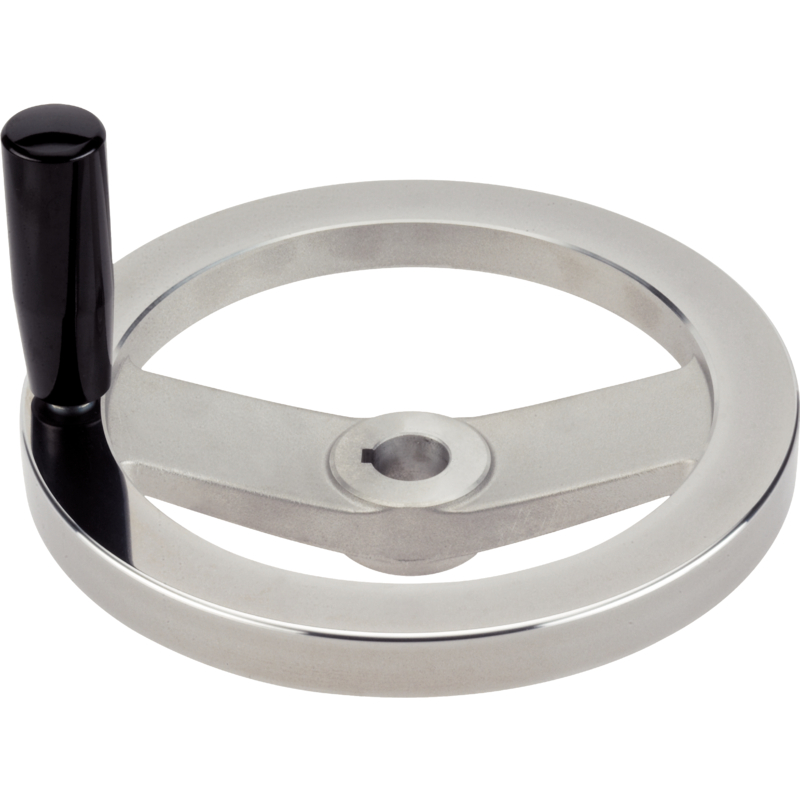

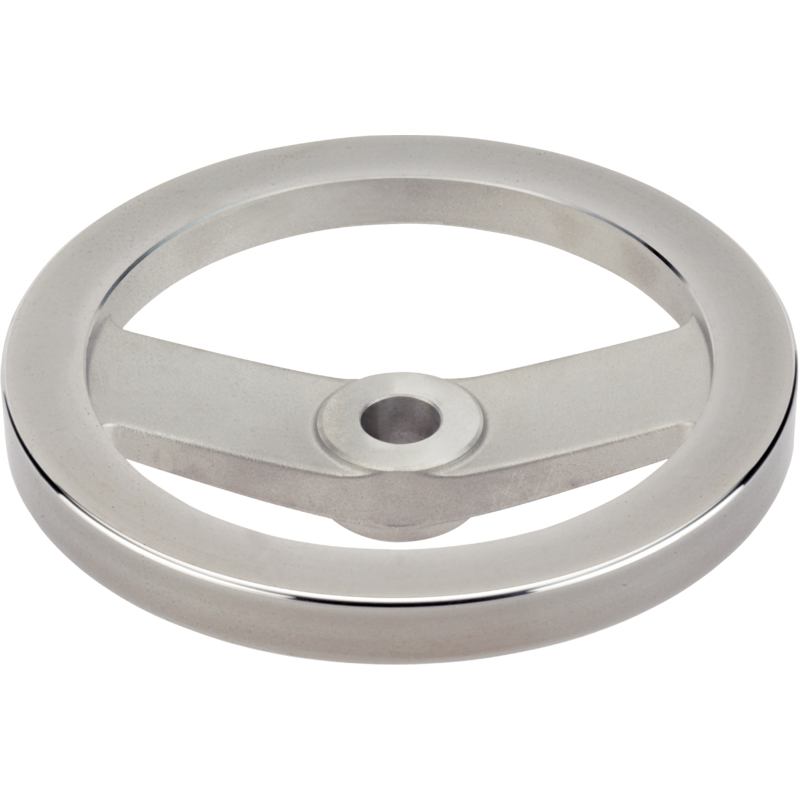

Ročno kolo - spoked

light metal

Koda: EH 24610-1

Izberi izvedbo

Erwin Halder KG

Ročno kolo - spoked

light metal

Koda:: EH 24610-1

For all handwheels, the hub is machined, rim is turned and mirror-finished on all sides. The unmachined raw surfaces have been blasted clean. Together with their mirror-polished rim, these handwheels therefore present a finish which generally does not require additional lacquering.

Material

Axle part

Steel, zinc-plated by galvanization

Handwheel

Aluminium permanent-mould casting

Assembly

Shaft-end washers EH 22270. for axial fastening.

Za ogled cen se prijavite

Številka izdelka	B	b₃	d₁	d₂ [H7]	d₃	Axle part	Conflict Minerals free
EH 24610.0010	15 mm		125 mm	12 mm	31 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0011	15 mm		125 mm	14 mm	31 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0015	16.5 mm		140 mm	14 mm	36 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0016	16.5 mm		140 mm	16 mm	36 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0020	18 mm		160 mm	14 mm	36 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0021	18 mm		160 mm	16 mm	36 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0030	20.5 mm		200 mm	18 mm	42 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0031	20.5 mm		200 mm	20 mm	42 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0040	23 mm		250 mm	22 mm	48 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0041	23 mm		250 mm	26 mm	48 mm	Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0110	15 mm	4 mm	125 mm	12 mm		Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0111	15 mm	5 mm	125 mm	14 mm		Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0115	16.5 mm	5 mm	140 mm	14 mm		Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0116	16.5 mm	5 mm	140 mm	16 mm		Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0120	18 mm	5 mm	160 mm	14 mm		Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0121	18 mm	5 mm	160 mm	16 mm		Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0130	20.5 mm	6 mm	200 mm	18 mm		Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0131	20.5 mm	6 mm	200 mm	20 mm		Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0140	23 mm	6 mm	250 mm	22 mm		Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
EH 24610.0141	23 mm	8 mm	250 mm	26 mm		Steel, zinc-plated by galvanization	yes
Podatki se nalagajo...
