Rhodius

Plošča rezna diamantna LD40

Koda RD 302448

Plošča rezna diamantna LD40


The LD40 enables high cutting speeds and short cutting times on a wide range of materials from concrete to granite. The 12 mm high diamond segments of the LD40 are laser welded to the steel core of the disc. Suitable for wet and dry cutting.


  • 12 mm high segments
  • Wide range of applications
  • High cutting speed
  • Wet and dry cut
  • Laser-welded
Številka izdelka Več info Maximum revolutions Premer Debelina Premer luknje Višina segmenta

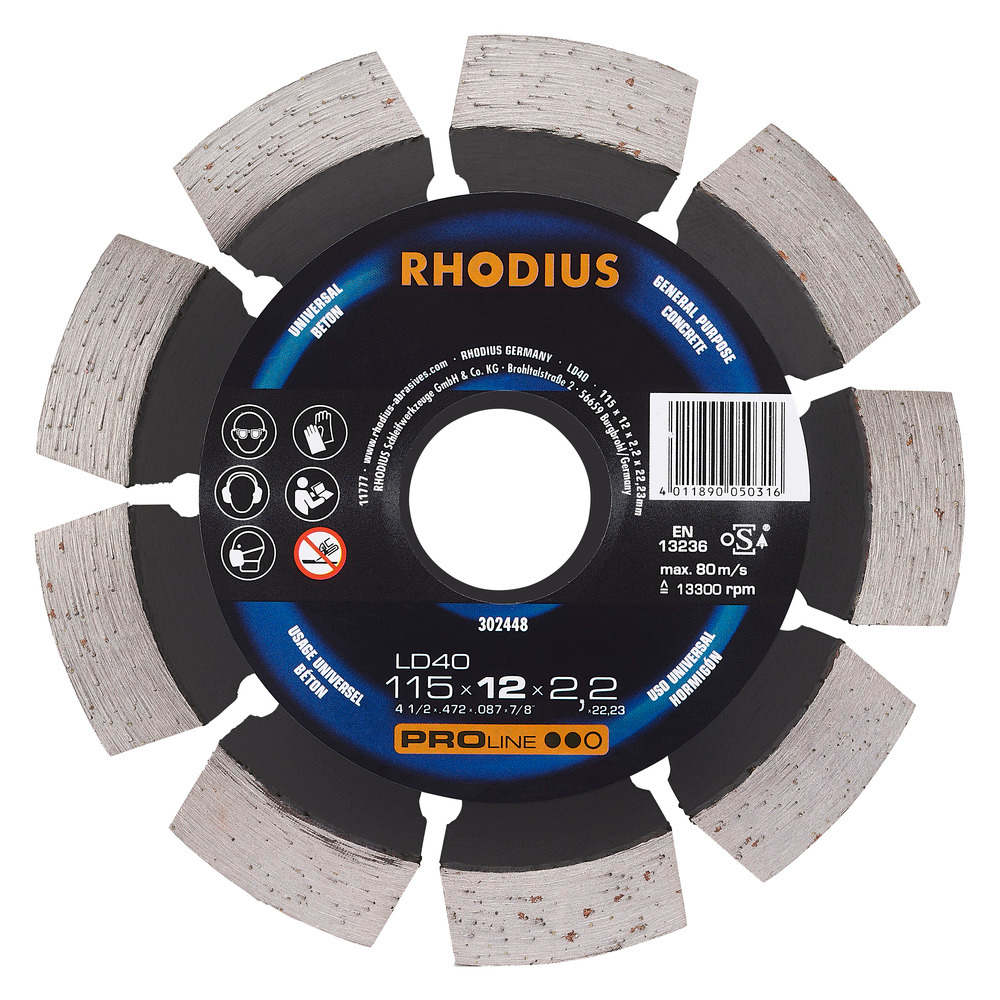

RD 302448 13300 U/min 115 mm 2,2 mm 22,23 mm 12 mm
Loading Podatki se nalagajo...
RD 302450 12250 U/min 125 mm 2,2 mm 22,23 mm 12 mm
Loading Podatki se nalagajo...
RD 393538 10200 U/min 150 mm 2,4 mm 22,23 mm 12 mm
Loading Podatki se nalagajo...

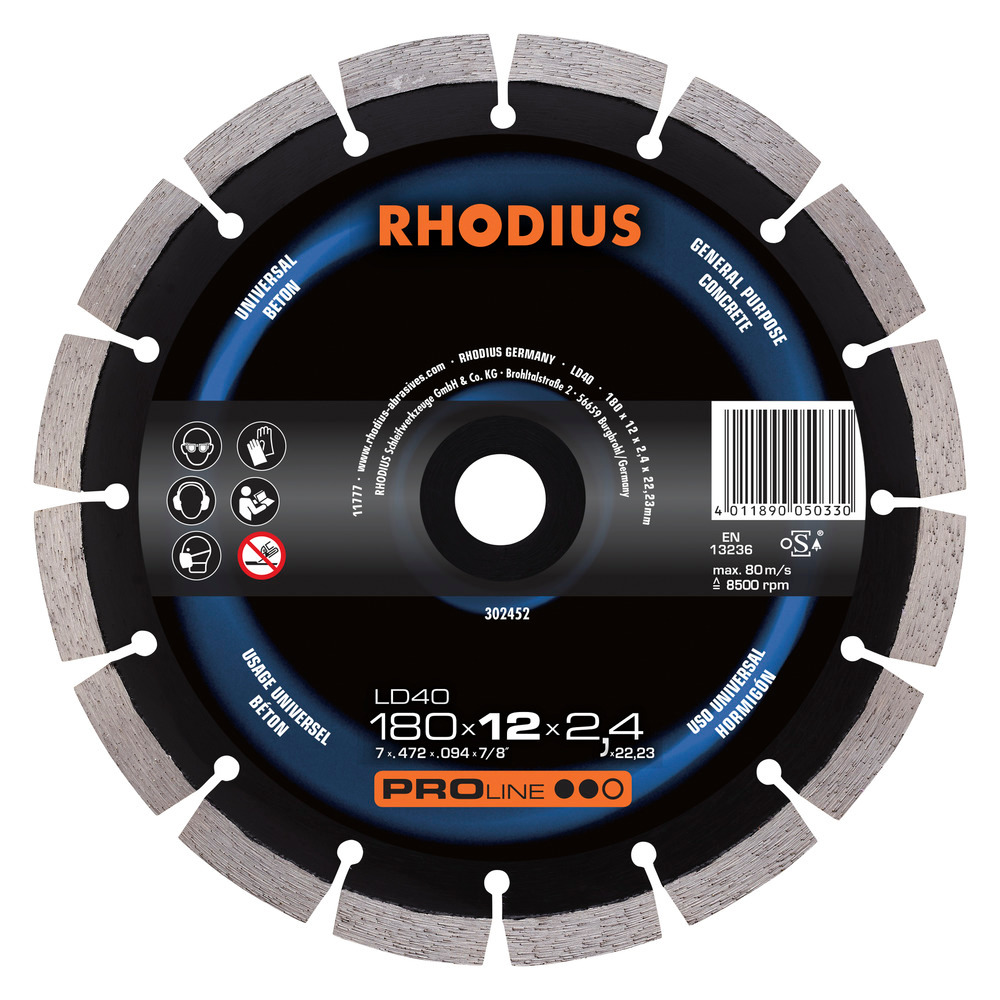

RD 302452 8500 U/min 180 mm 2,4 mm 22,23 mm 12 mm
Loading Podatki se nalagajo...
RD 302454 6650 U/min 230 mm 2,4 mm 22,23 mm 12 mm
Loading Podatki se nalagajo...
RD 302256 6400 U/min 300 mm 2,8 mm 20 mm 12 mm
Loading Podatki se nalagajo...
RD 303437 6400 U/min 300 mm 2,8 mm 25,40* 12 mm
Loading Podatki se nalagajo...
RD 302514 5500 U/min 350 mm 3,2 mm 20 mm 12 mm
Loading Podatki se nalagajo...
RD 303438 5500 U/min 350 mm 3,2 mm 25,40* 12 mm
Loading Podatki se nalagajo...
RD 303921 4800 U/min 400 mm 3,2 mm 25,40* 12 mm
Loading Podatki se nalagajo...

Machine suitability:
The LD40 diamond cutting disc is designed both for freehand use and for use on a stationary machine: for angle grinders, petrol cut-off saws and table saws (depending on diameter). This product can be used to the full on machines from any performance class.

Material suitability:
The LD40 has been specifically designed for working on concrete, paving bricks, hard stone, flagstones, concrete tubes, kerbstones and medium-hard marble shingles. This high-quality RHODIUS tool is also an excellent choice for processing granite, hard concrete with aggregates, paving stones, hard masonry bricks, reinforced concrete and ferroconcrete, hard sand-lime bricks, hard precast concrete blocks, stone blocks, concrete roofing tiles and hollow stone blocks.

Structure and production:
The LD40 features a segmented rim. This enables very high cutting speeds to be achieved while also maximising tool life. The tool has been tested to EN 13236 and oSa, and can be used both in wet cutting and dry cutting applications. Use of high-quality industrial diamonds makes the LD40 a particularly powerful tool. The disc is also laser welded.

Dimensions:
This diamond cutting disc is available in diameters from 115 mm to 400 mm.
