Erwin Halder KG

Pozicionirni zatič

with bore hole similar to DIN 6321

Koda: EH 22630-3

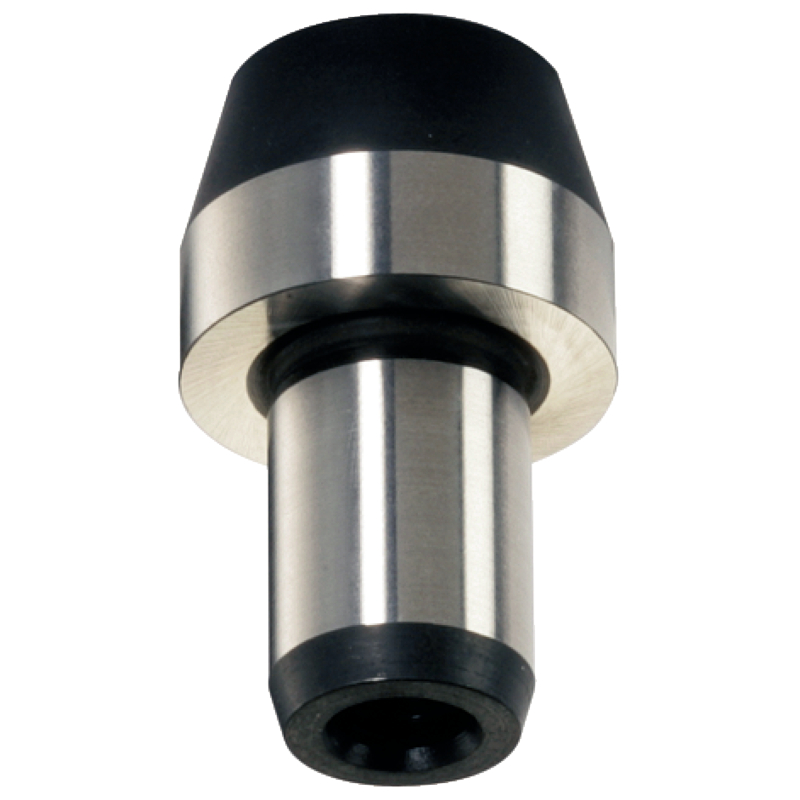

Cylindric locating pins for locating workpieces in toleranced holes and also to be used as stops and feet.

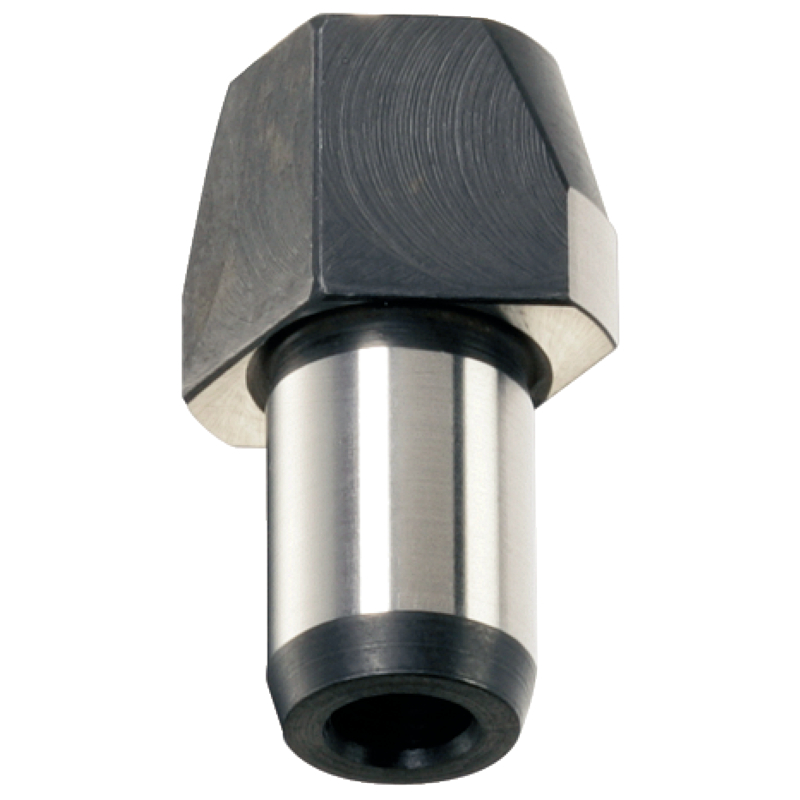

Flattened locating pins used to overcome differences in tolerances, between holes or to position an element in one direction only.

Apart from size 6 additional safety by fastening possibilities from up and down (can be used also for dismounting). The outer dimensions are similar to DIN 6321.

Material

Case-hardened steel, case-hardened, blackened and ground

Can only be mounted from the top

Za ogled cen se prijavite

Številka izdelka	B	d₃	d₄	d₅	d₆	D1 [H7]	Conflict Minerals free	d₁ [g6]	d₂ [k6]
EH 22630.0220				21 mm	M2	4 mm	yes	6 mm	4 mm
Podatki se nalagajo...
EH 22630.0221				21 mm	M2	4 mm	yes	6 mm	4 mm
Podatki se nalagajo...
EH 22630.0222		M3		26 mm	M2,5		yes	8 mm	6 mm
Podatki se nalagajo...
EH 22630.0223		M3		26 mm	M2,5		yes	8 mm	6 mm
Podatki se nalagajo...
EH 22630.0224		M3	5 mm	26 mm			yes	10 mm	6 mm
Podatki se nalagajo...
EH 22630.0225		M3	5 mm	26 mm			yes	10 mm	6 mm
Podatki se nalagajo...
EH 22630.0226		M3	5 mm	26 mm			yes	12 mm	6 mm
Podatki se nalagajo...
EH 22630.0227		M3	5 mm	26 mm			yes	12 mm	6 mm
Podatki se nalagajo...
EH 22630.0228		M4	6.5 mm	33 mm			yes	16 mm	8 mm
Podatki se nalagajo...
EH 22630.0229		M4	6.5 mm	33 mm			yes	16 mm	8 mm
Podatki se nalagajo...
EH 22630.0230		M6	10 mm	5.2 mm			yes	20 mm	12 mm
Podatki se nalagajo...
EH 22630.0231		M6	10 mm	5.2 mm			yes	20 mm	12 mm
Podatki se nalagajo...
EH 22630.0232		M6	10 mm	5.2 mm			yes	25 mm	12 mm
Podatki se nalagajo...
EH 22630.0233		M6	10 mm	5.2 mm			yes	25 mm	12 mm
Podatki se nalagajo...
EH 22630.0240	1 mm			21 mm	M2		yes	6 mm	4 mm
